logo Patio HST 82

Broad vision

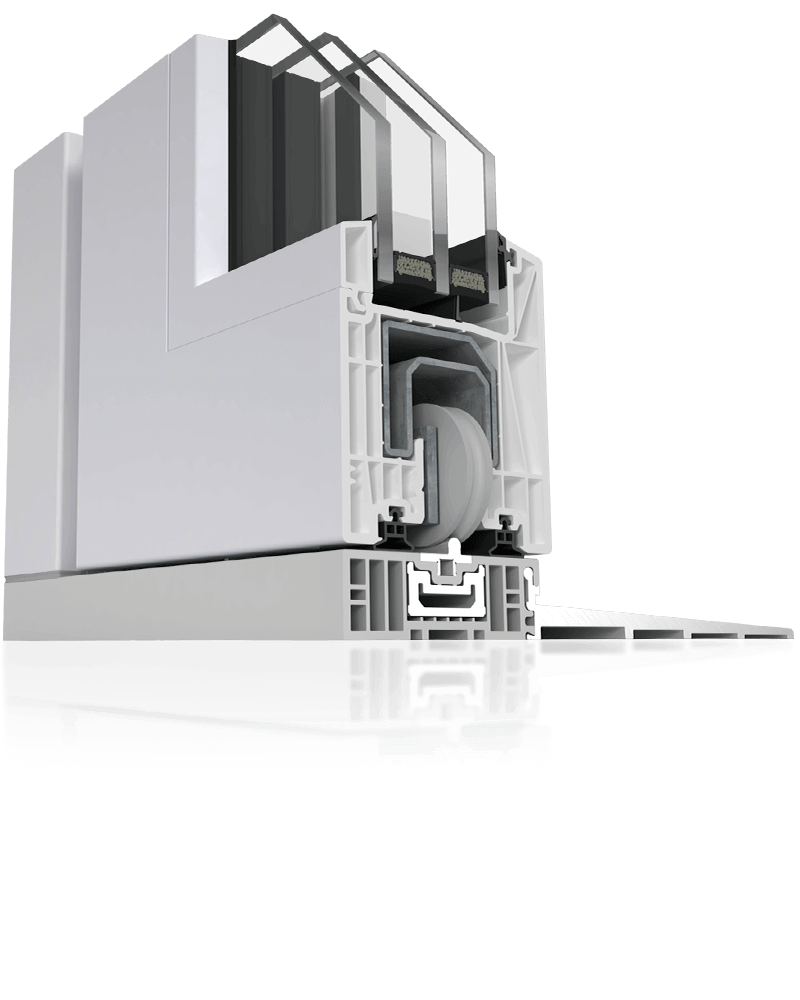

Section of Patio HST 82.

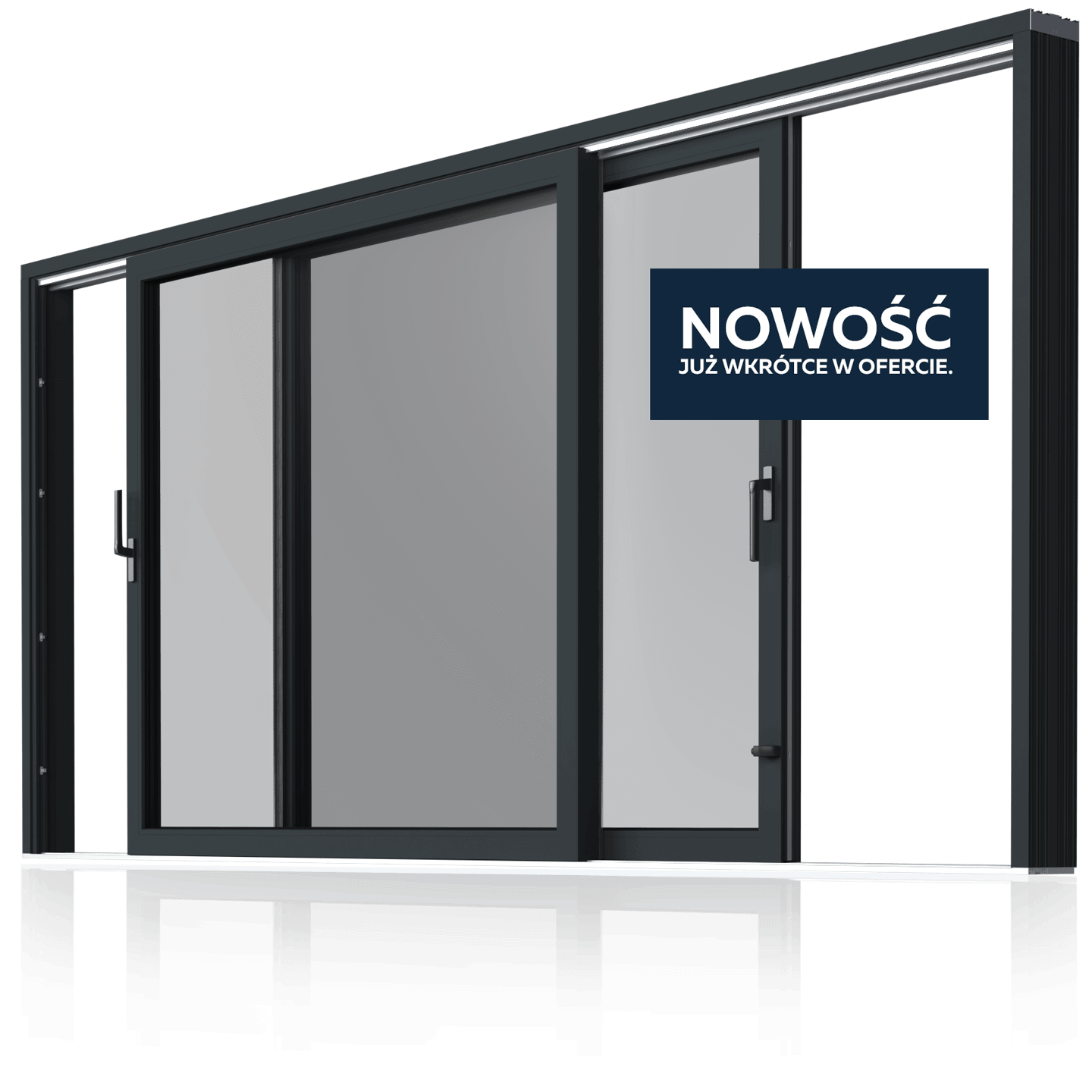

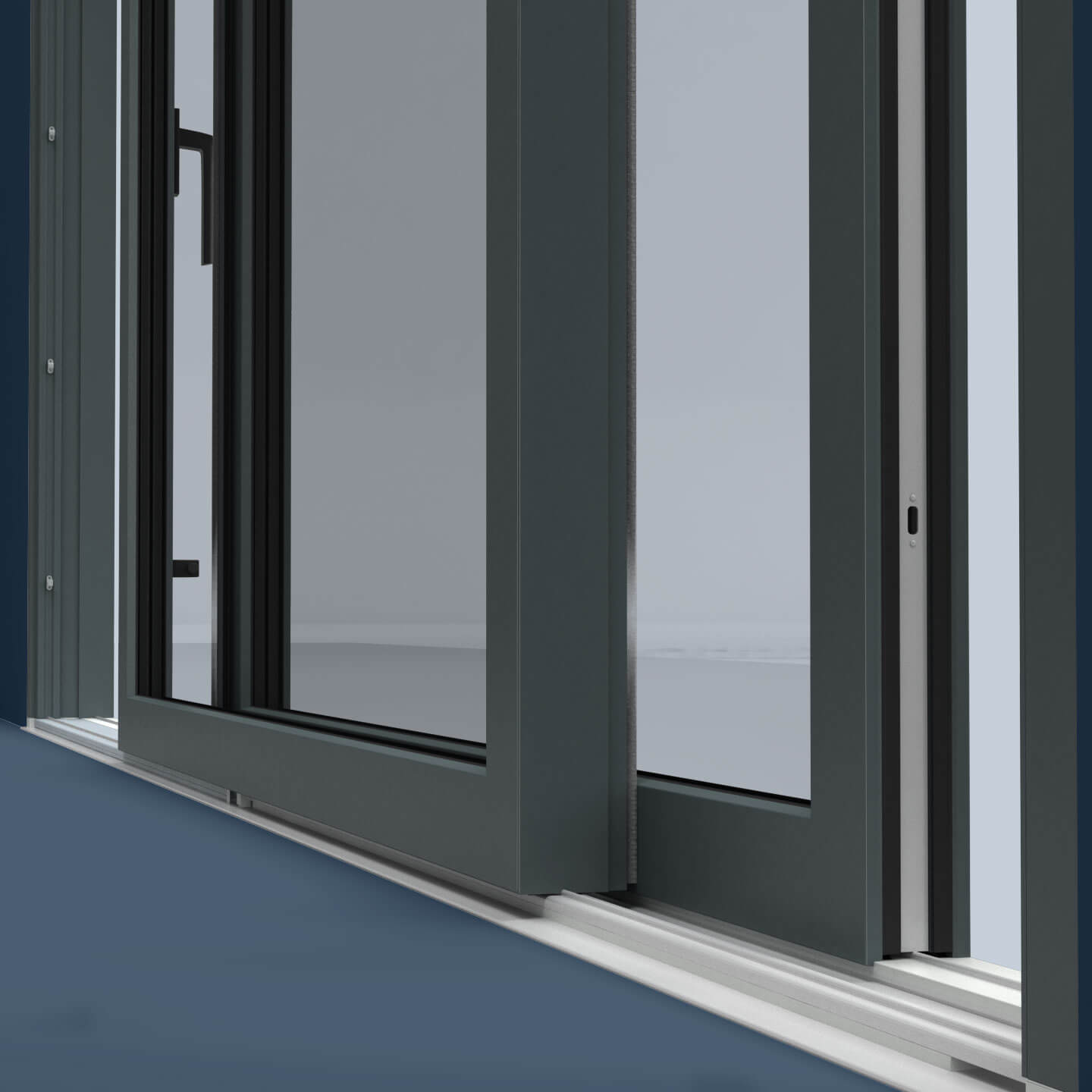

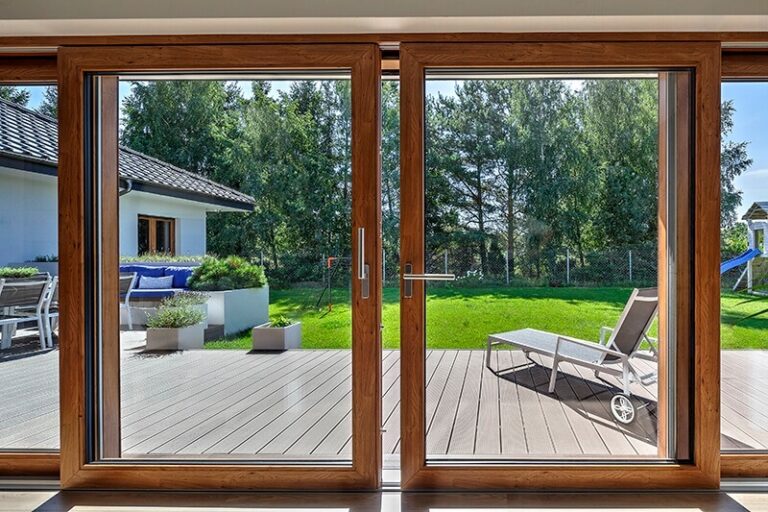

Patio HST 82

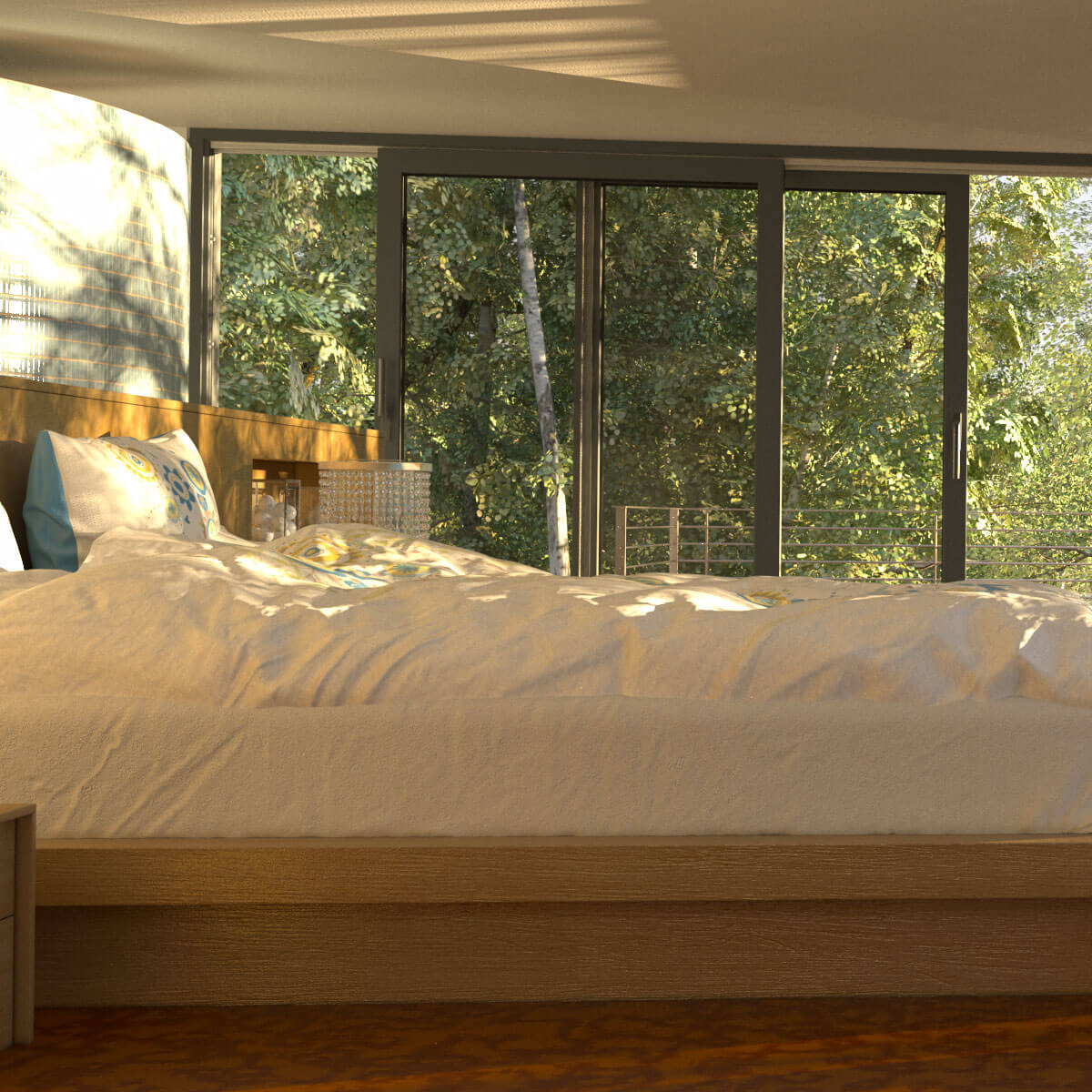

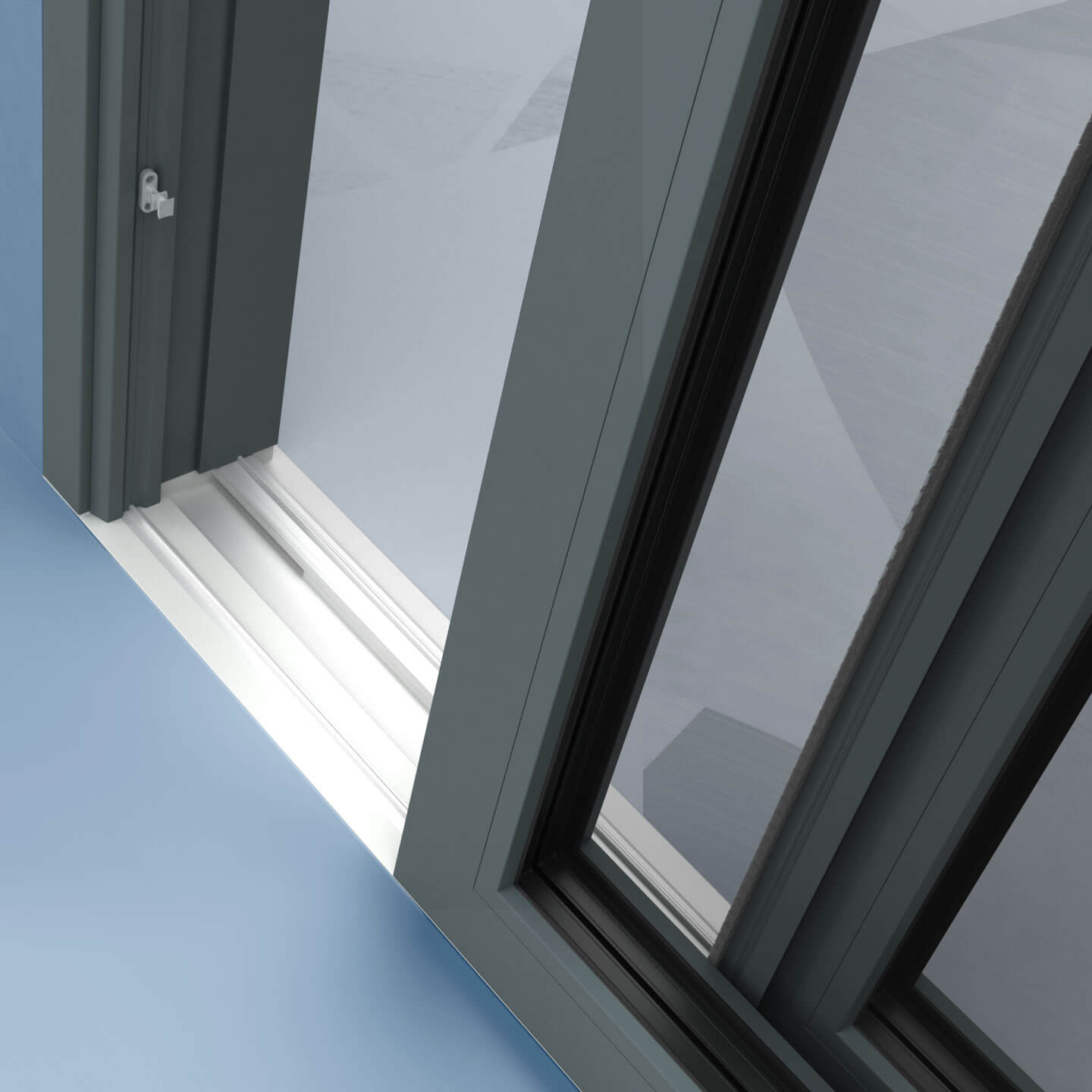

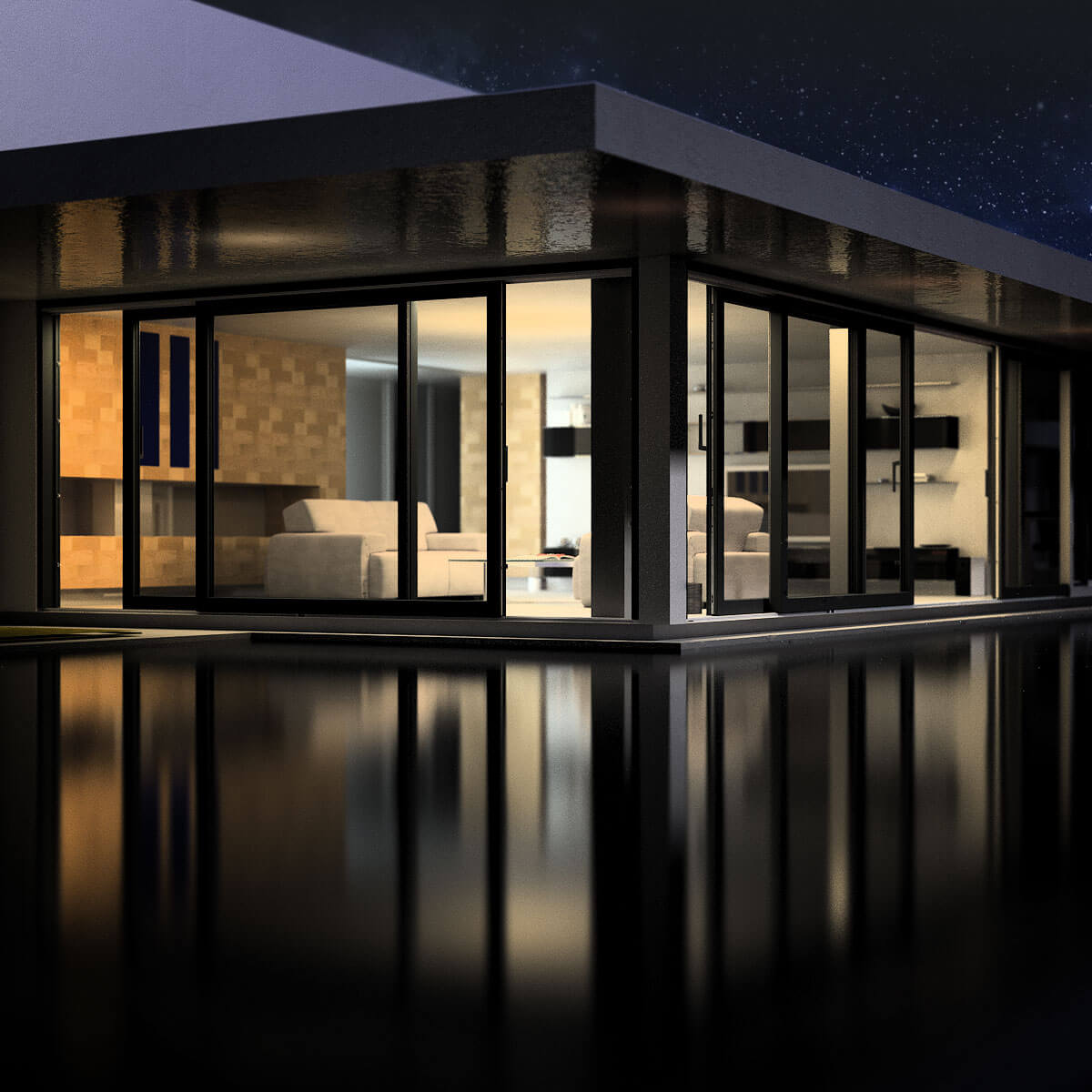

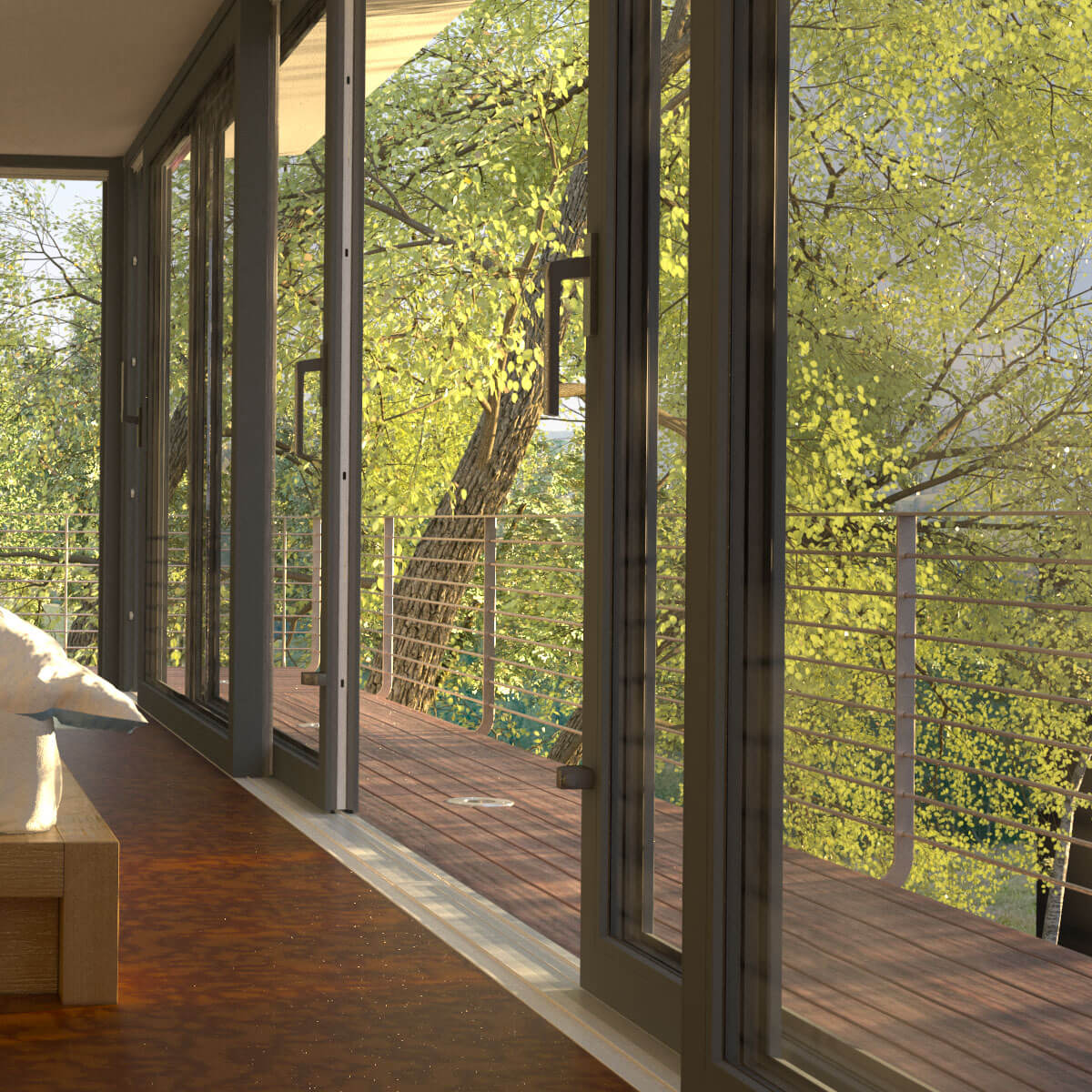

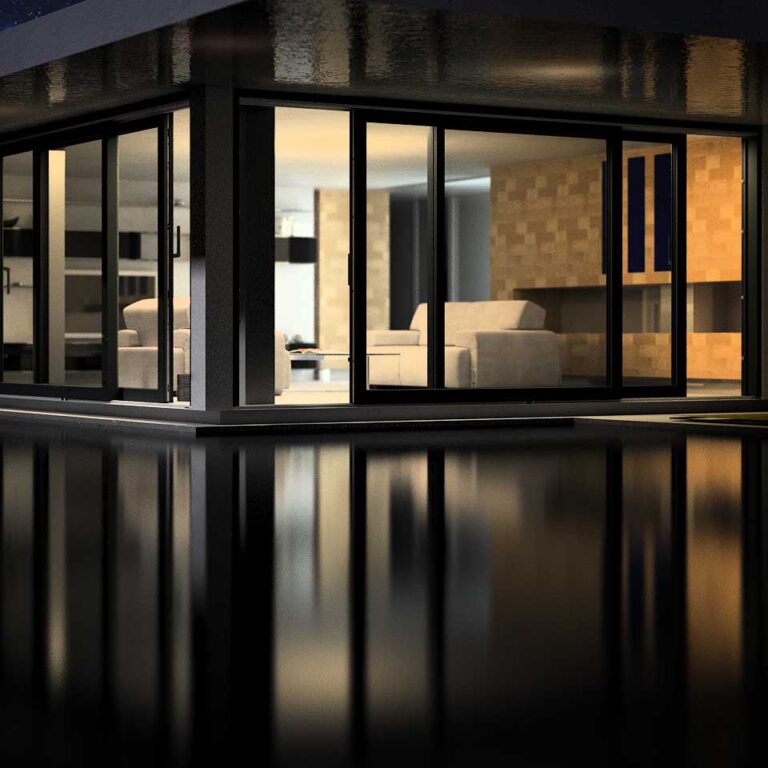

HST 82 is more than a full view from the window. It’s the perspective of the future. Lift and slide structures facilitate contact with the surroundings of the house. The ECO PASS threshold used is characterized by excellent thermal insulation.

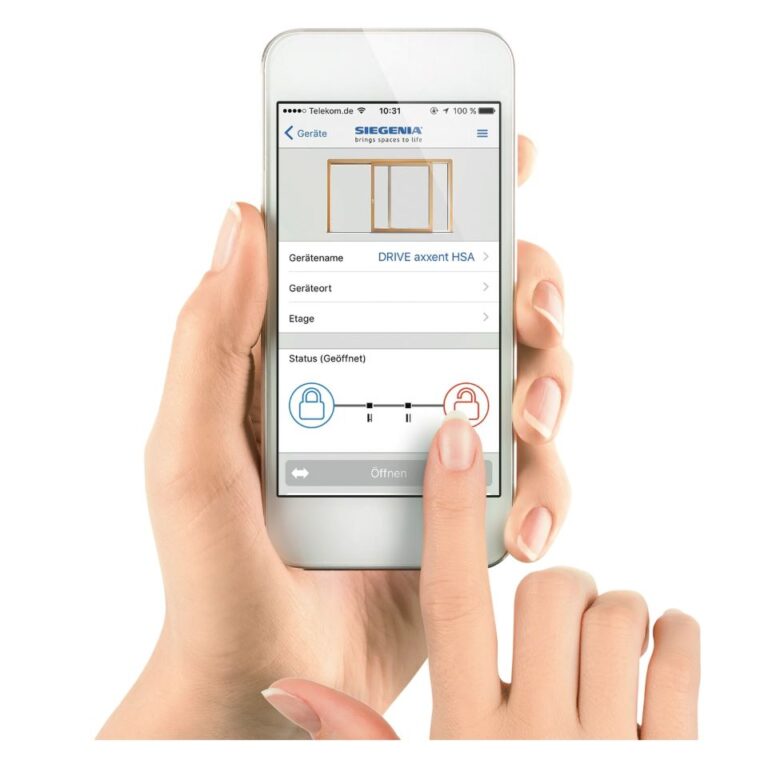

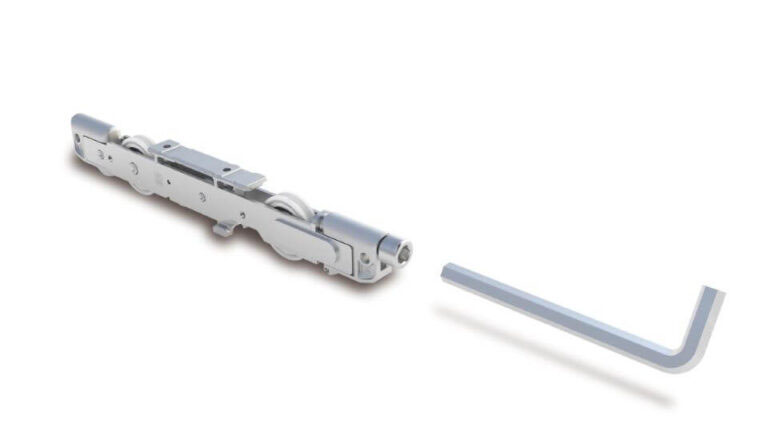

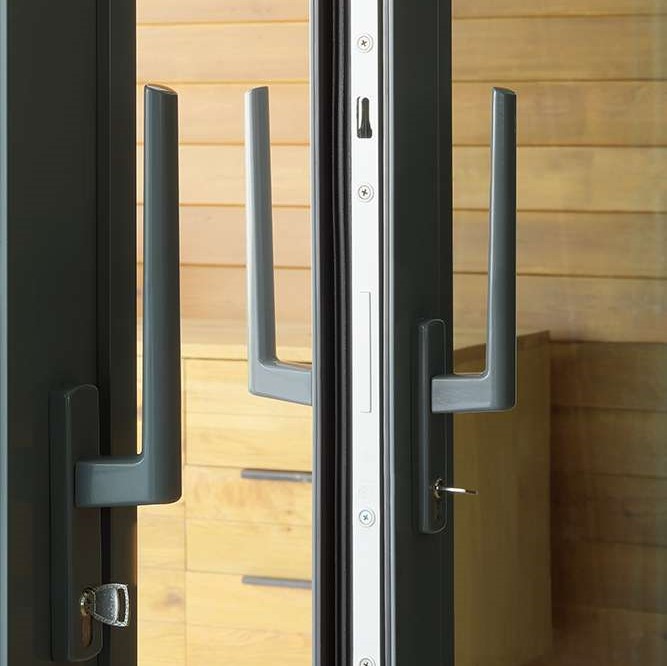

The large Patio HST 82 constructions are based on Salamander profiles. The convenient use of stately lift and slide doors is possible thanks to Siegenia mechanisms. Comfort gear and bogie wheels
with adjustment facililate using of sashes which weigh up to 300 kg.

The large Patio HST 82 constructions are based on Salamander profiles. The convenient use of stately lift and slide doors is possible thanks to Siegenia mechanisms. Comfort gear and bogie wheels
with adjustment facililate using of sashes which weigh up to 300 kg.

The large Patio HST 82 constructions are based on Salamander profiles. The convenient use of stately lift and slide doors is possible thanks to Siegenia mechanisms. Comfort gear and bogie wheels
with adjustment facililate using of sashes which weigh up to 300 kg.

FREEDOM

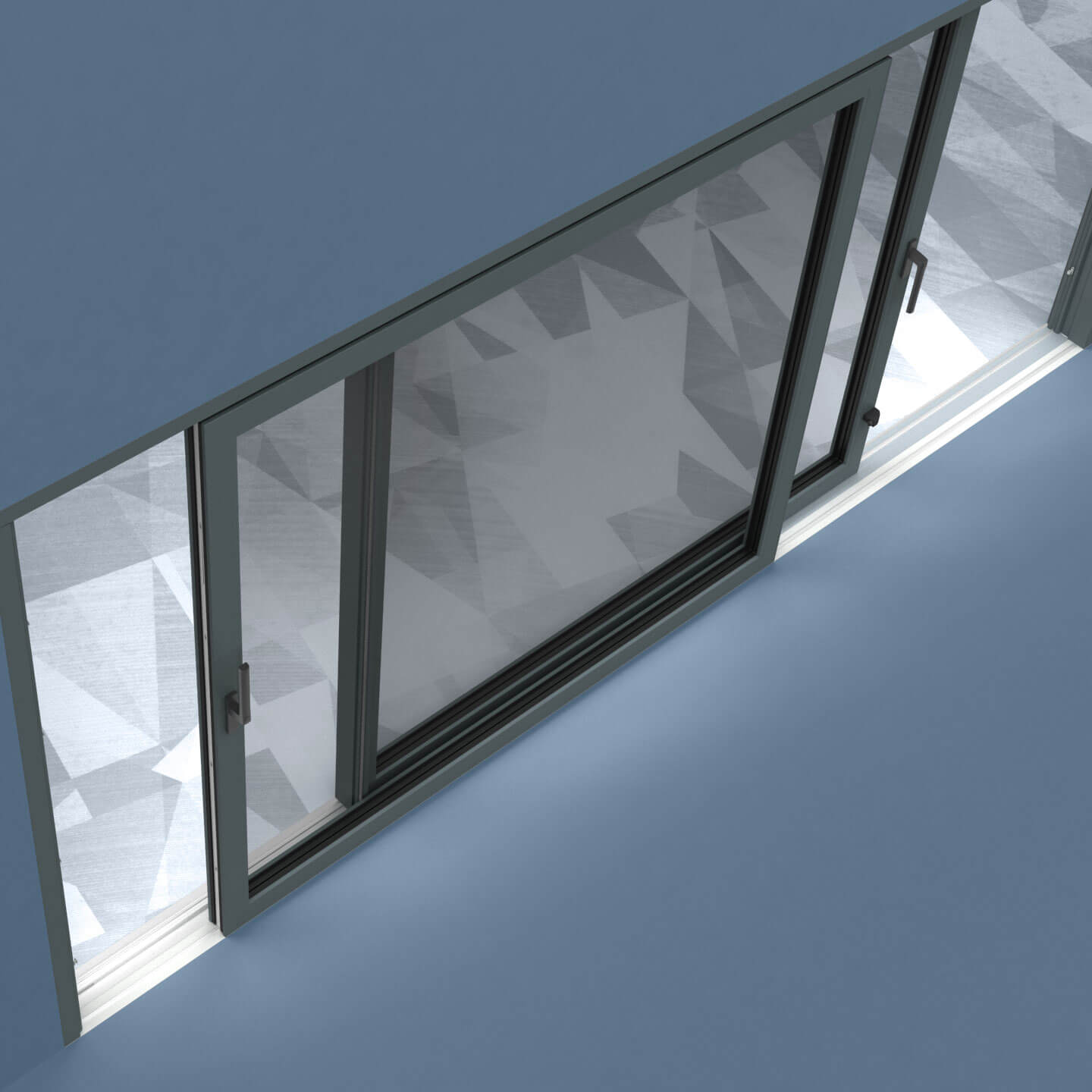

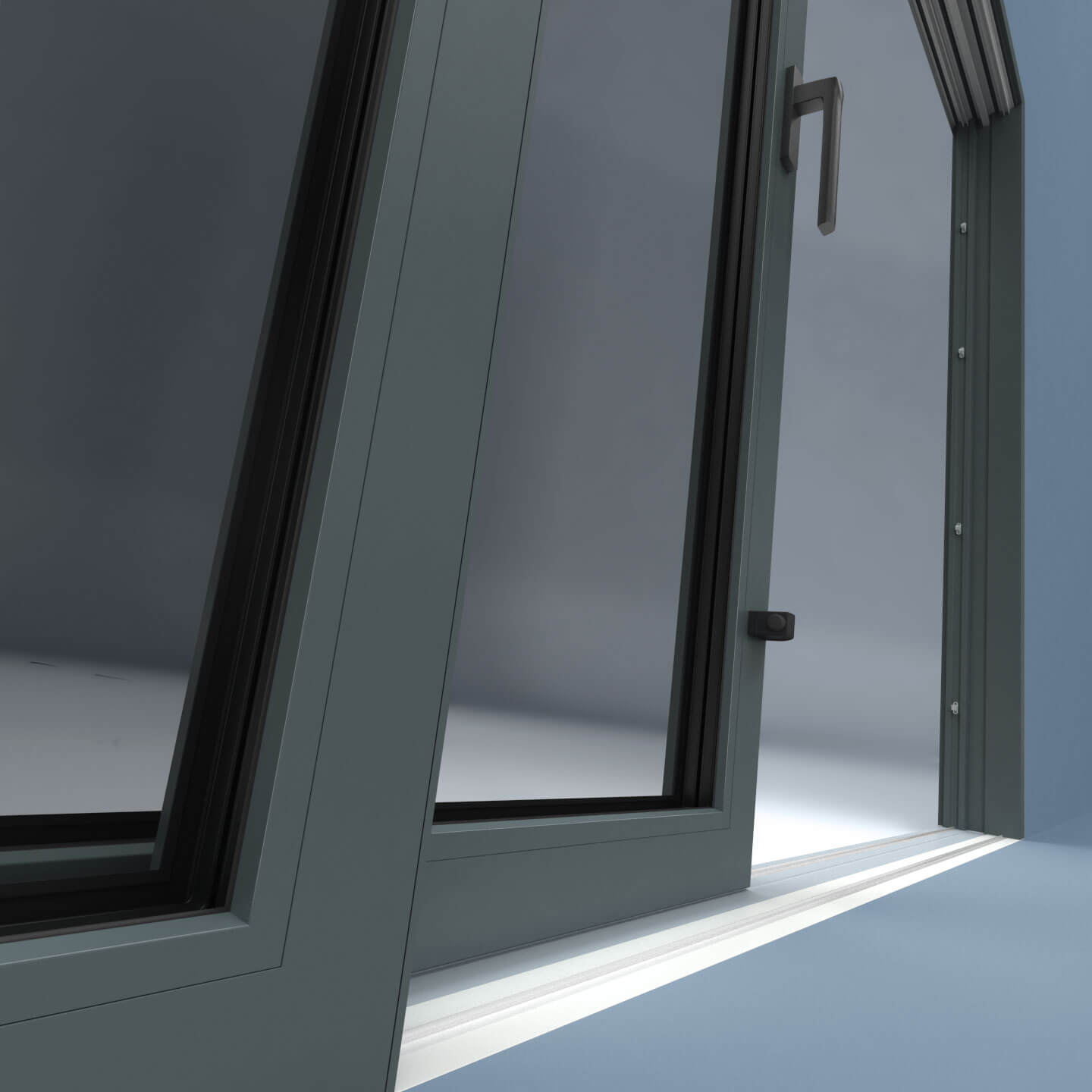

Two active sashes (scheme D) provide unique freedom of choice for the passage way.

Patio HST 82 - scheme D.

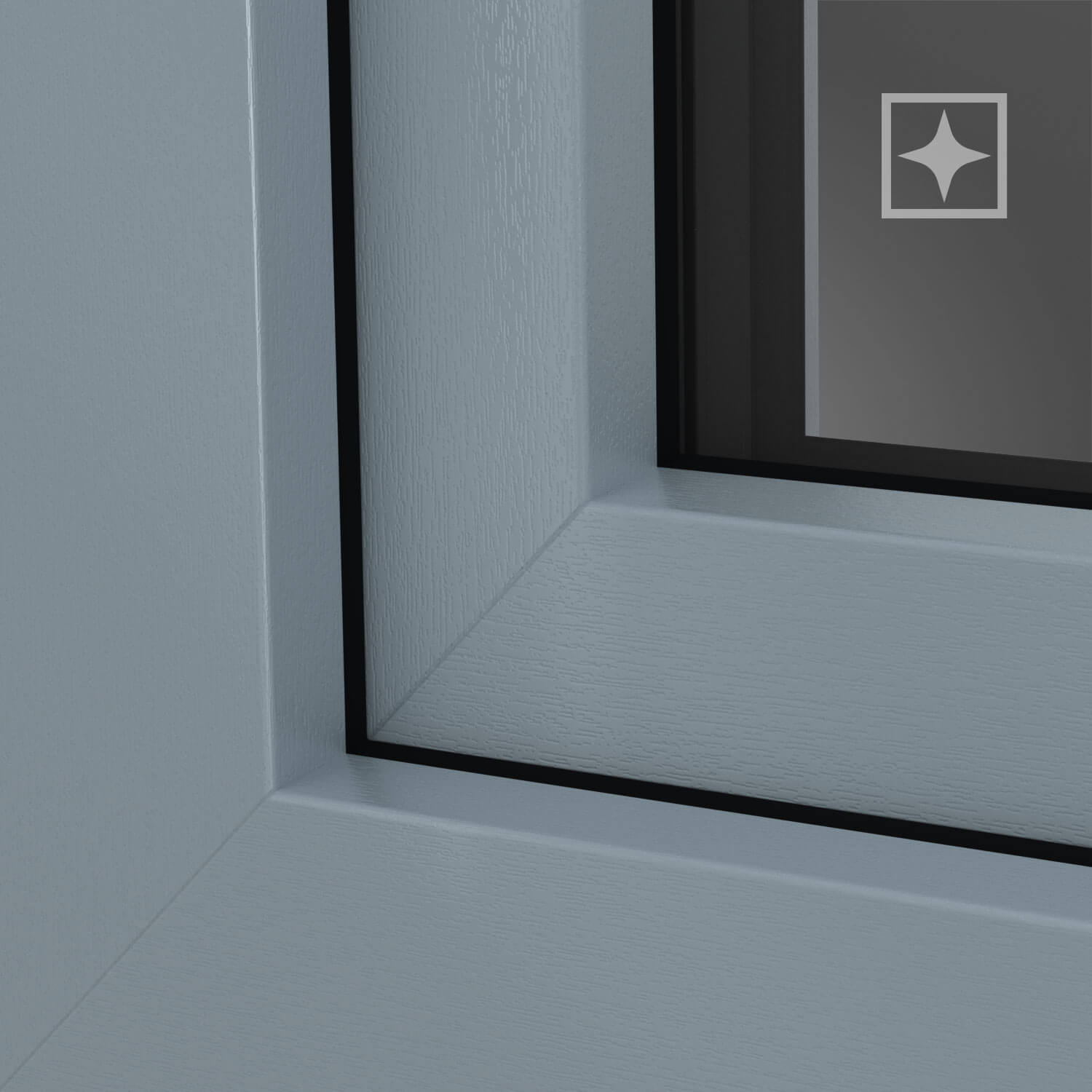

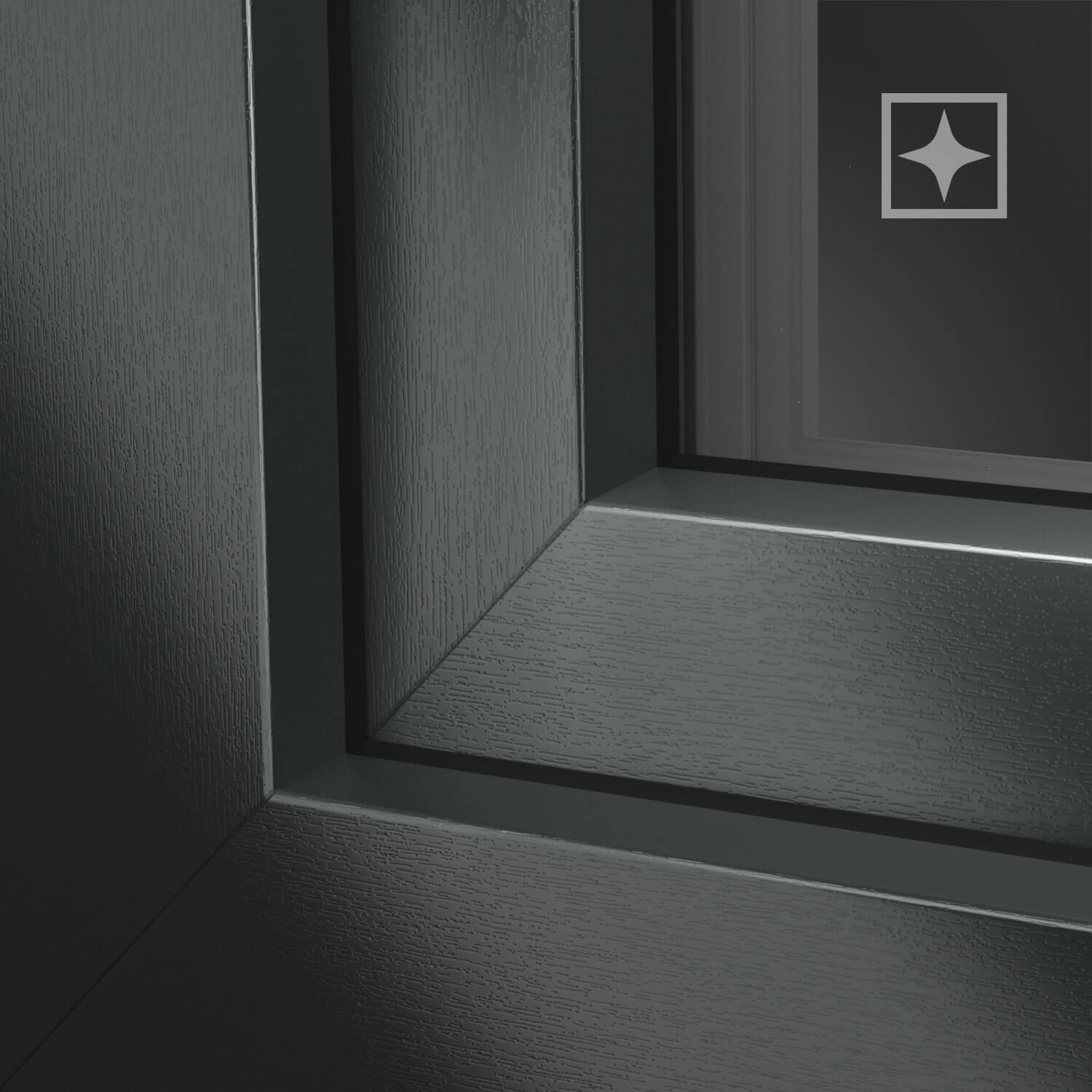

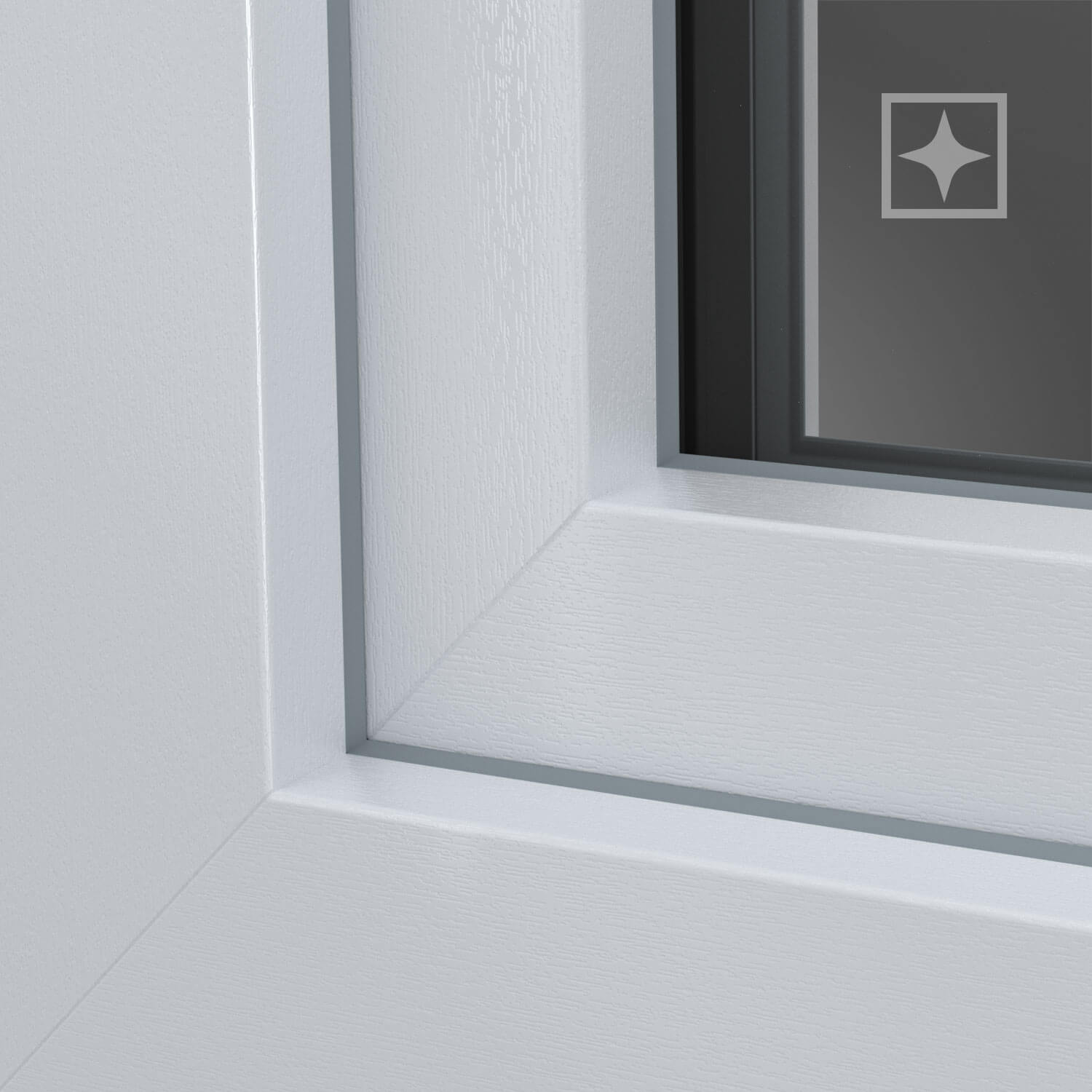

Colour

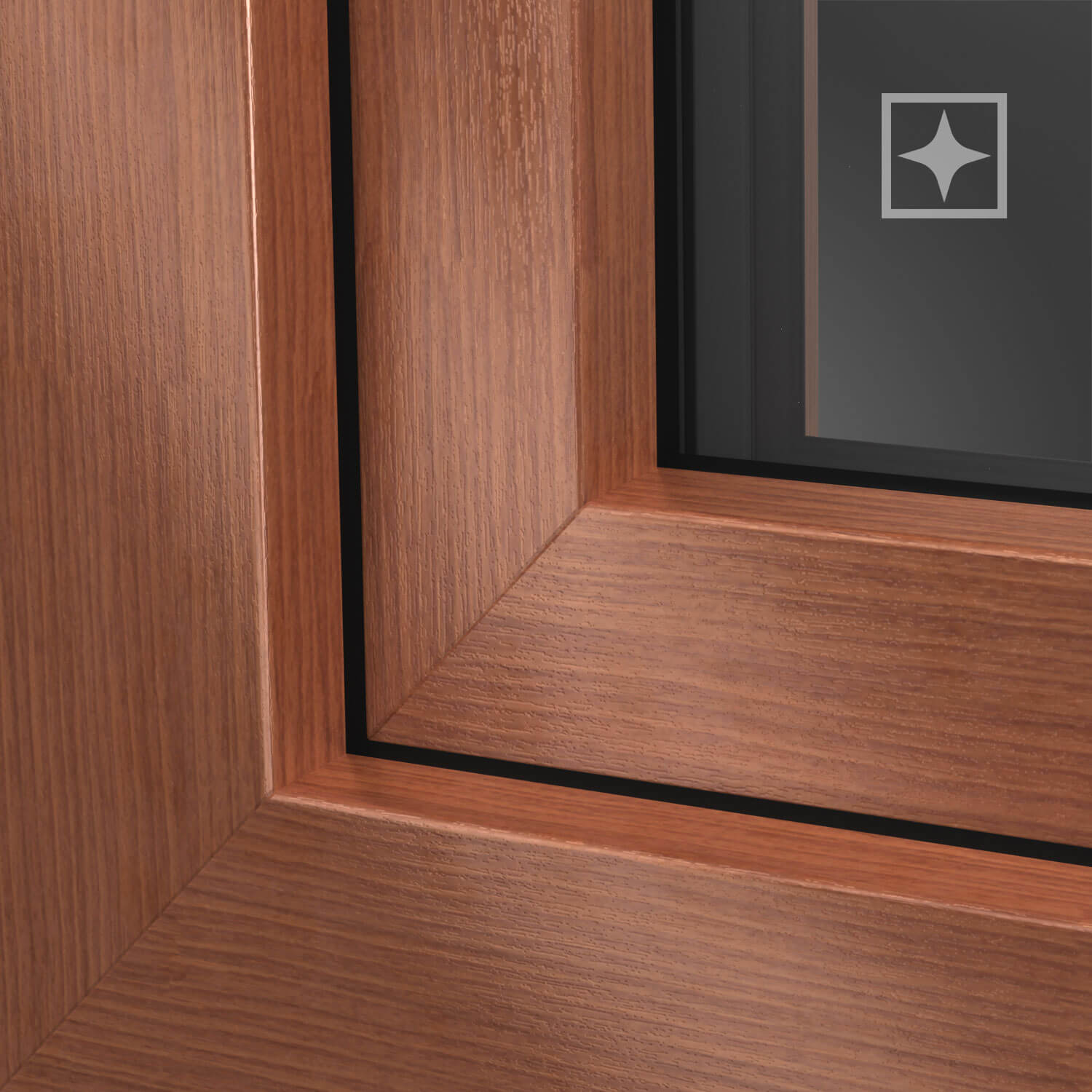

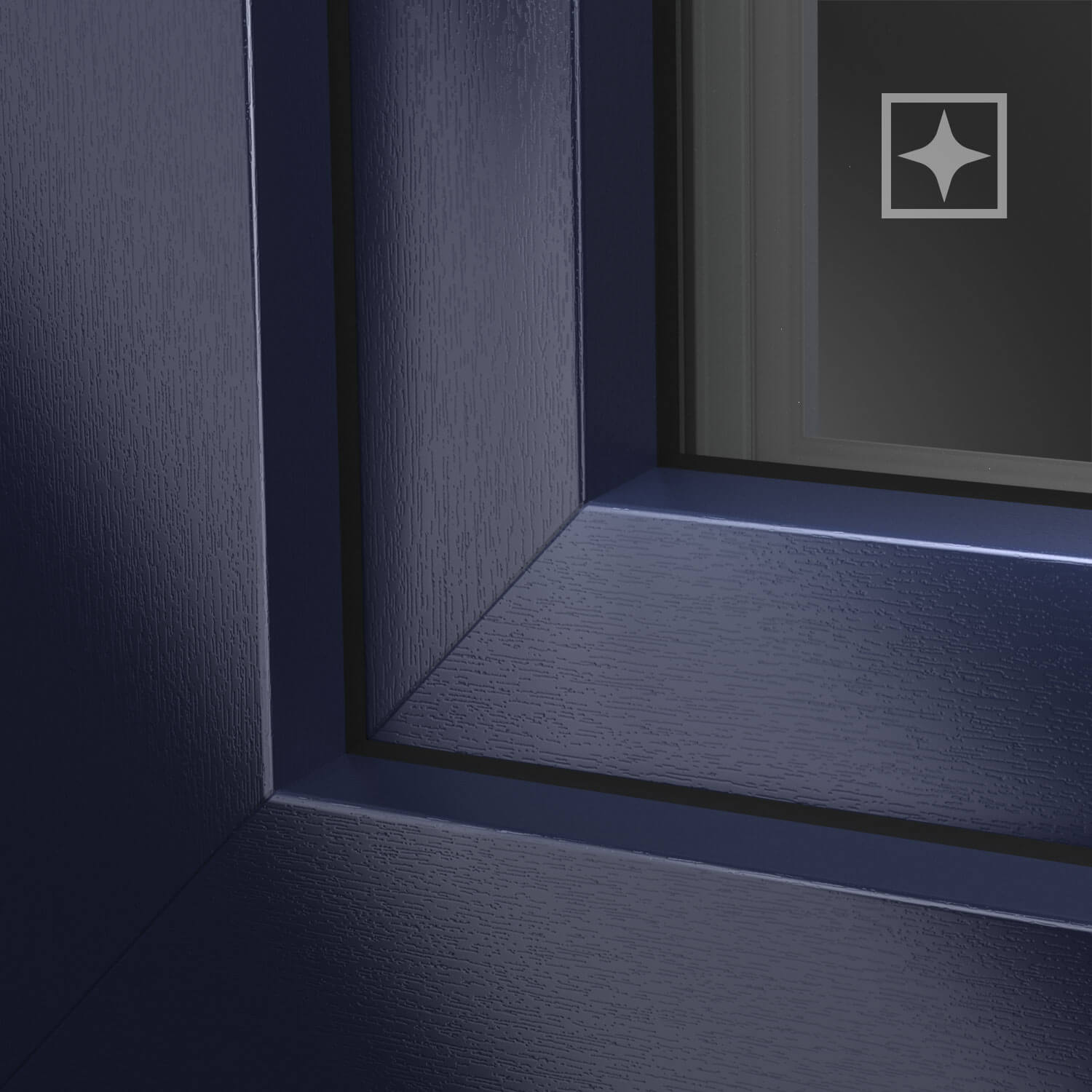

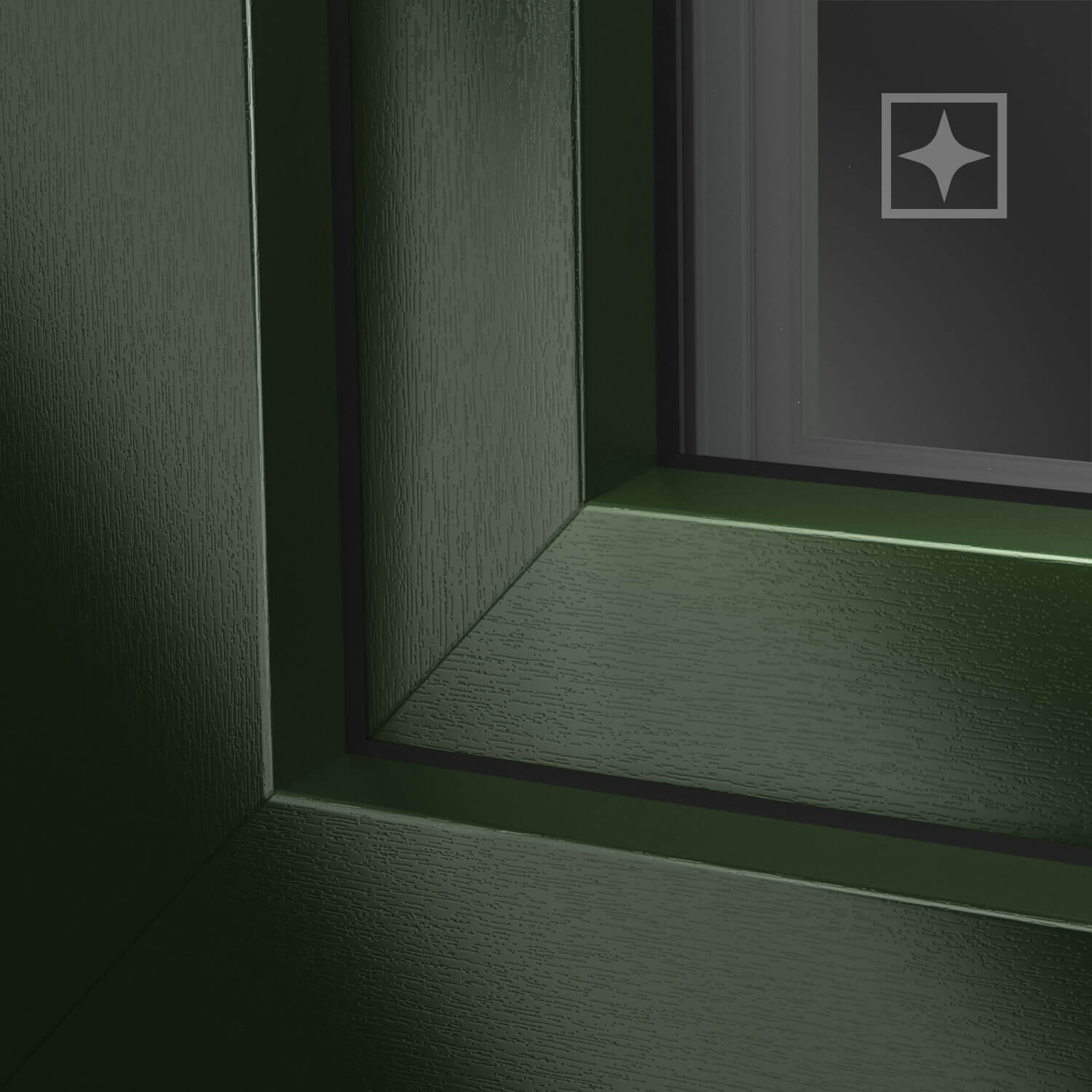

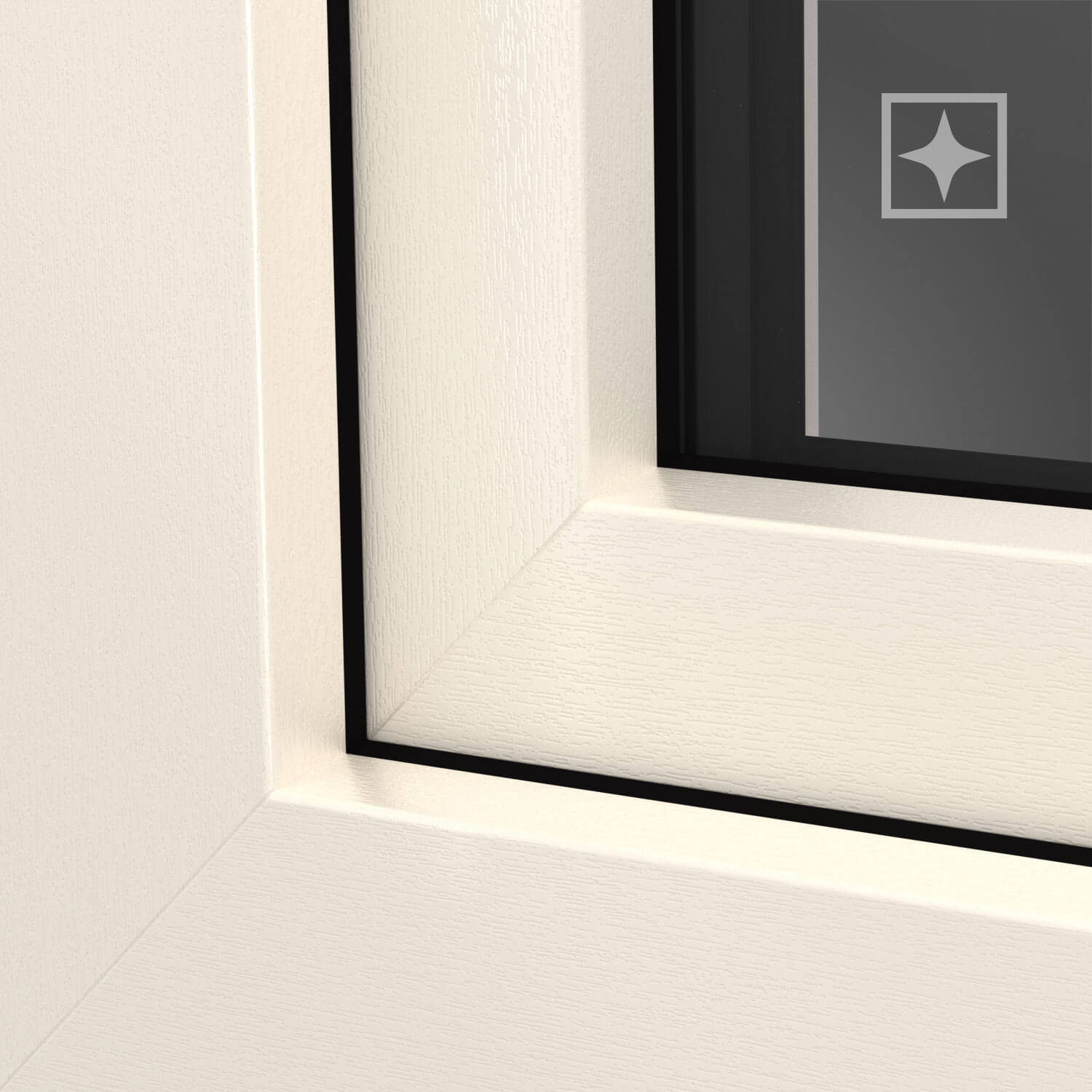

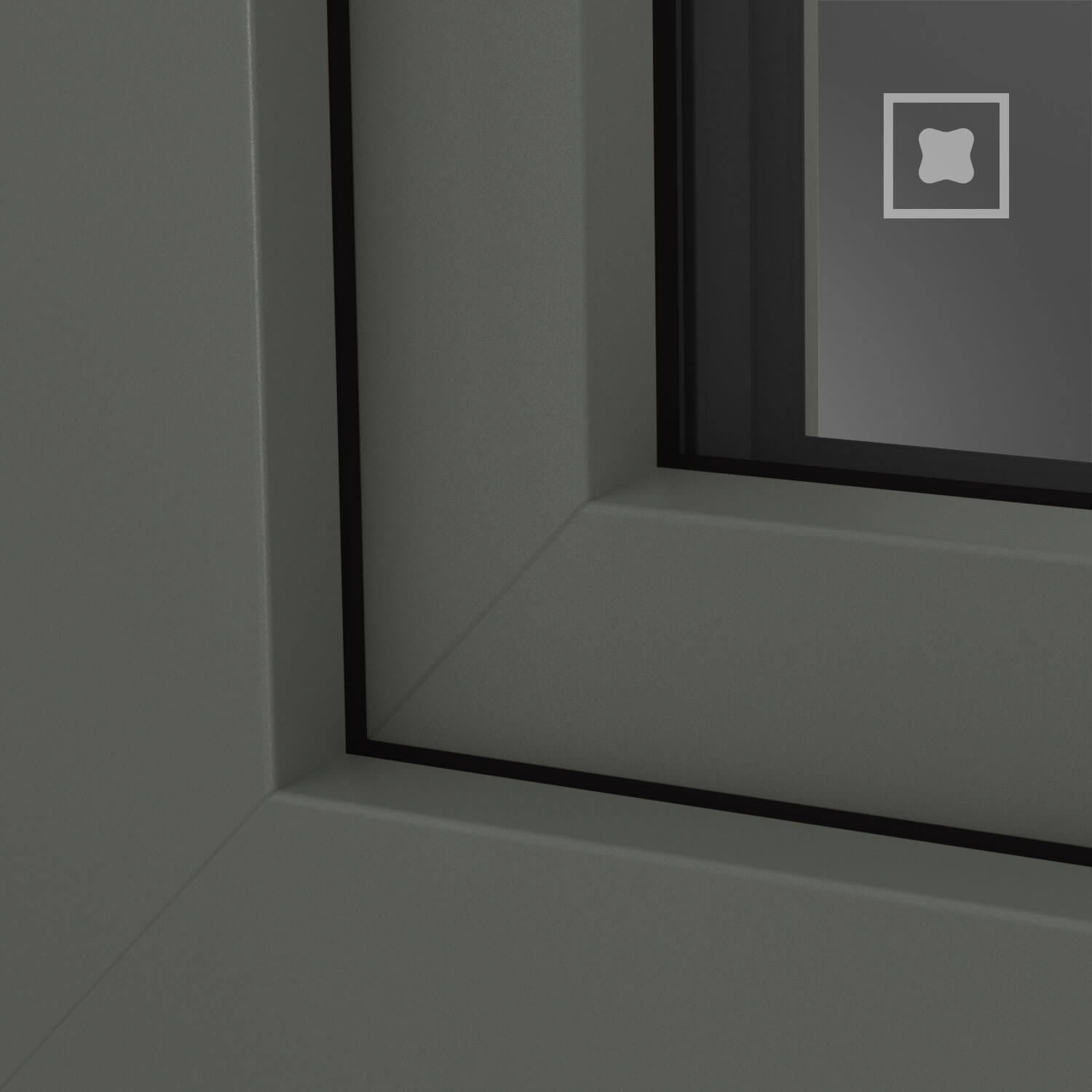

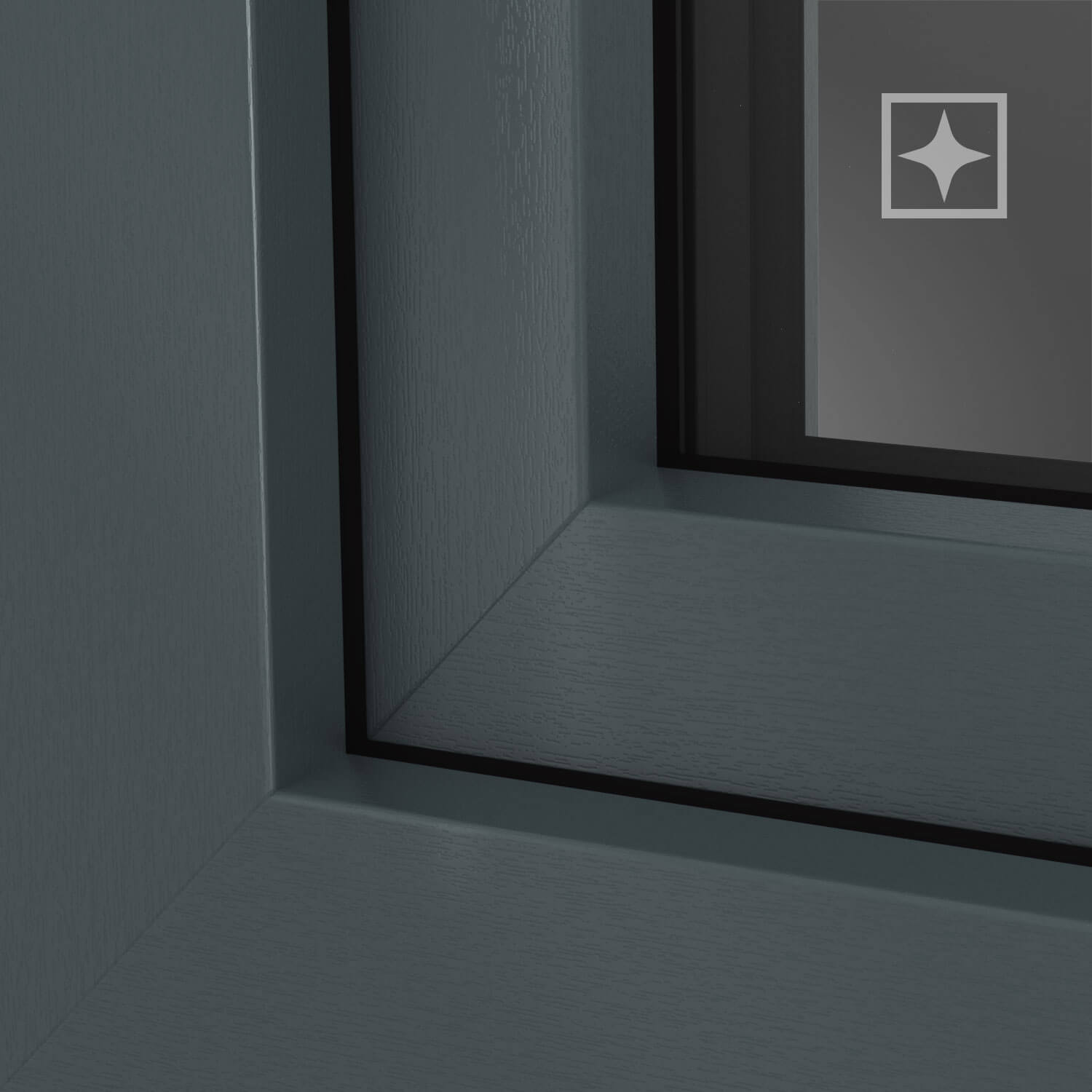

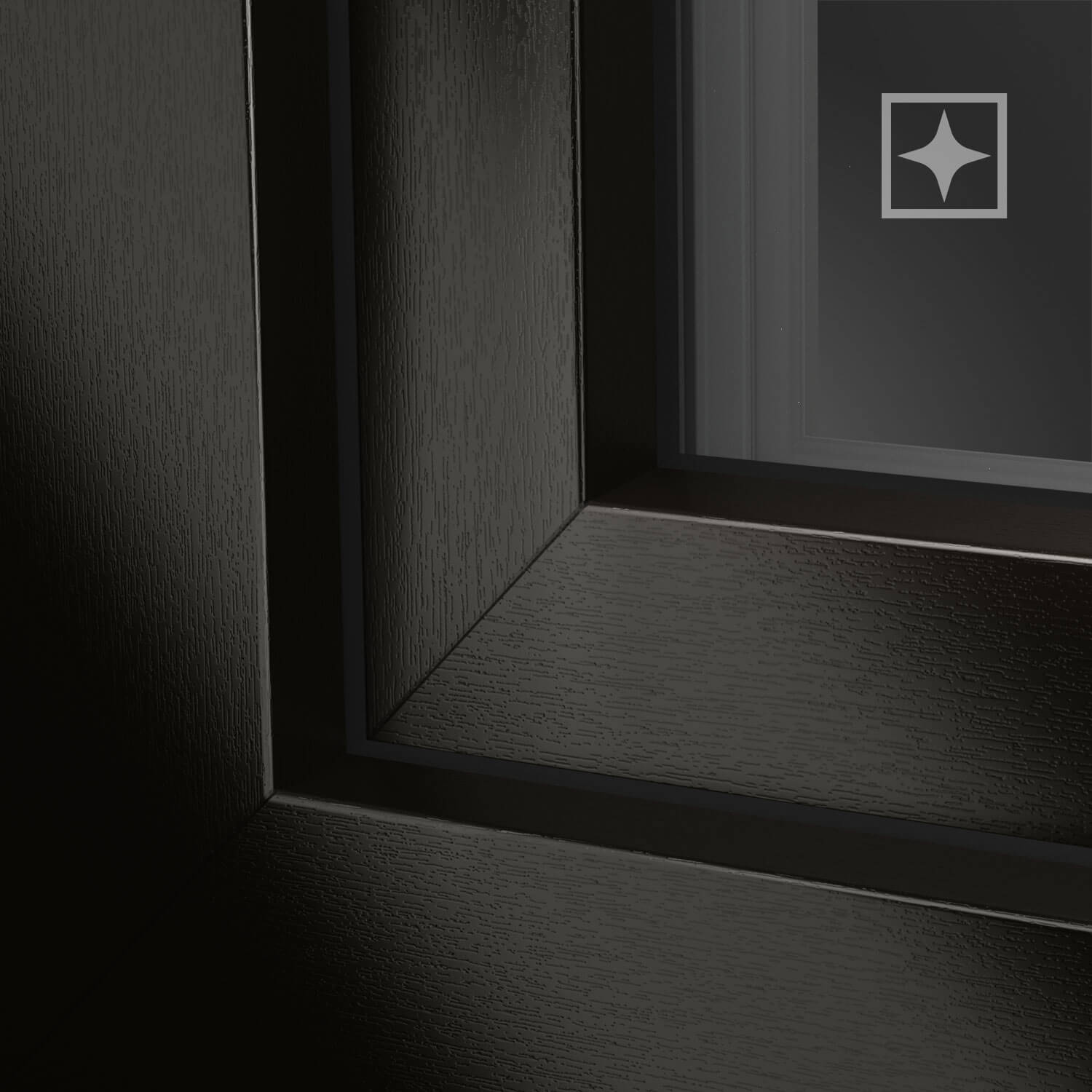

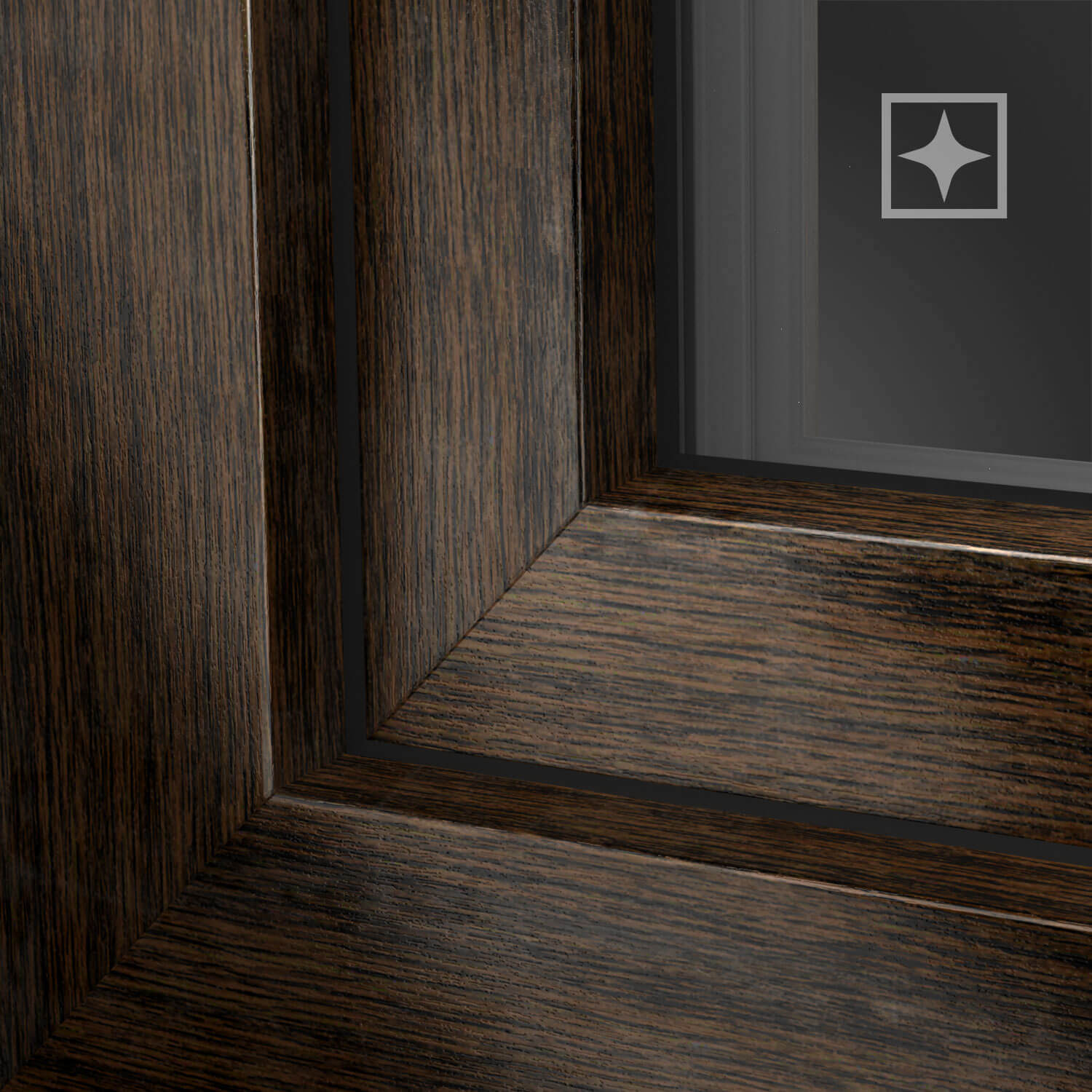

One of the most important elements of the MS beyond WINDOWS offer is the range of over 40 PVC veneers, which allow you to give your windows an individual character.

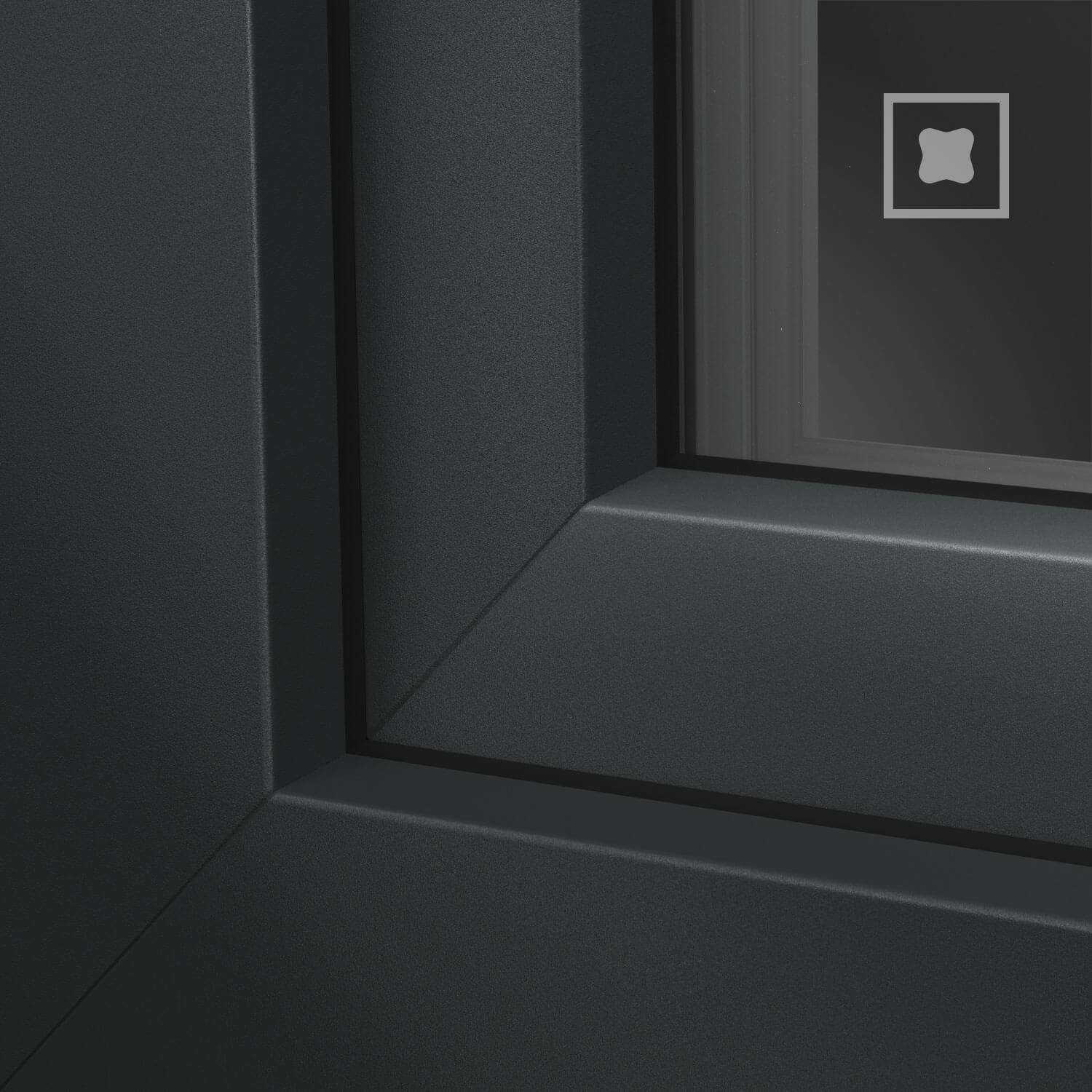

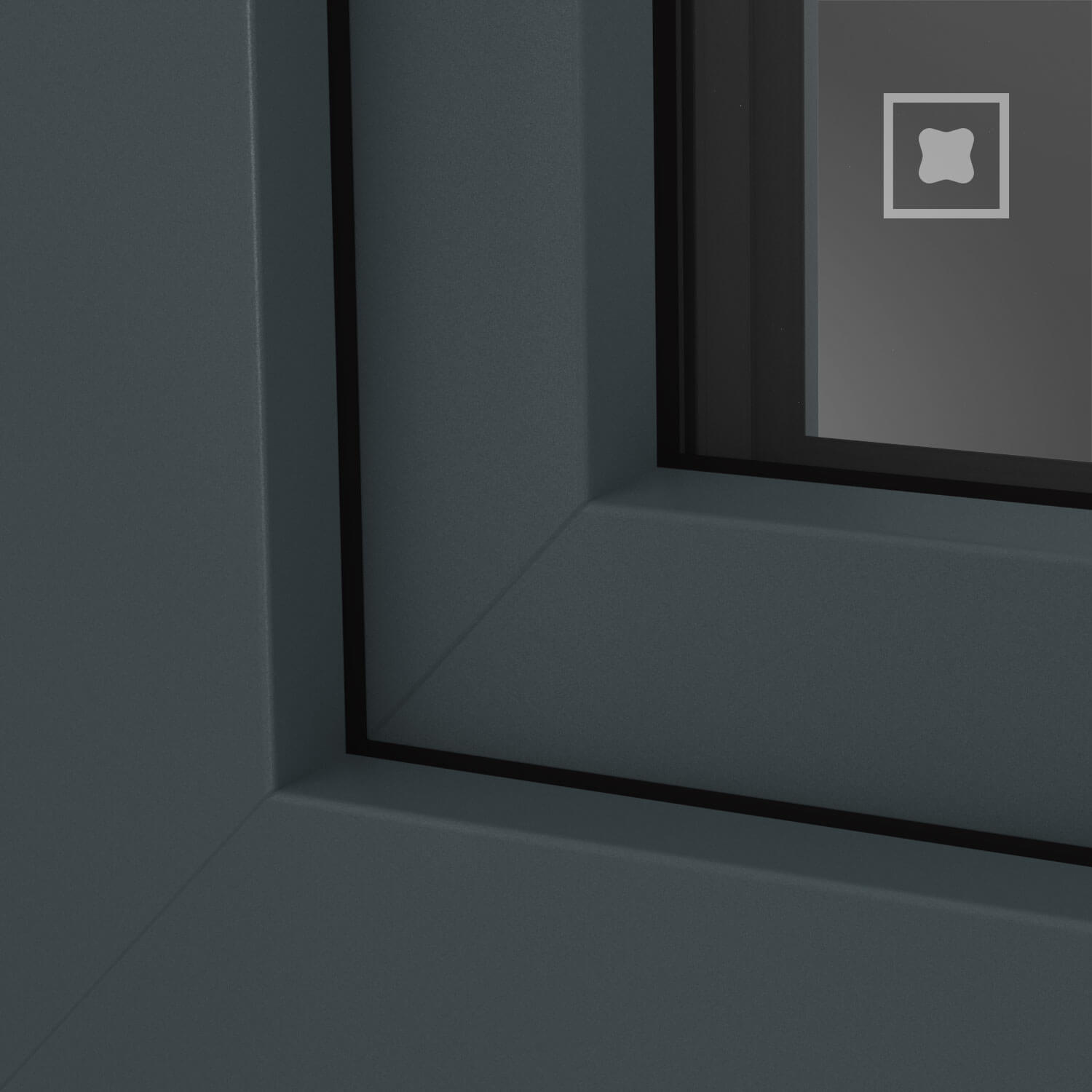

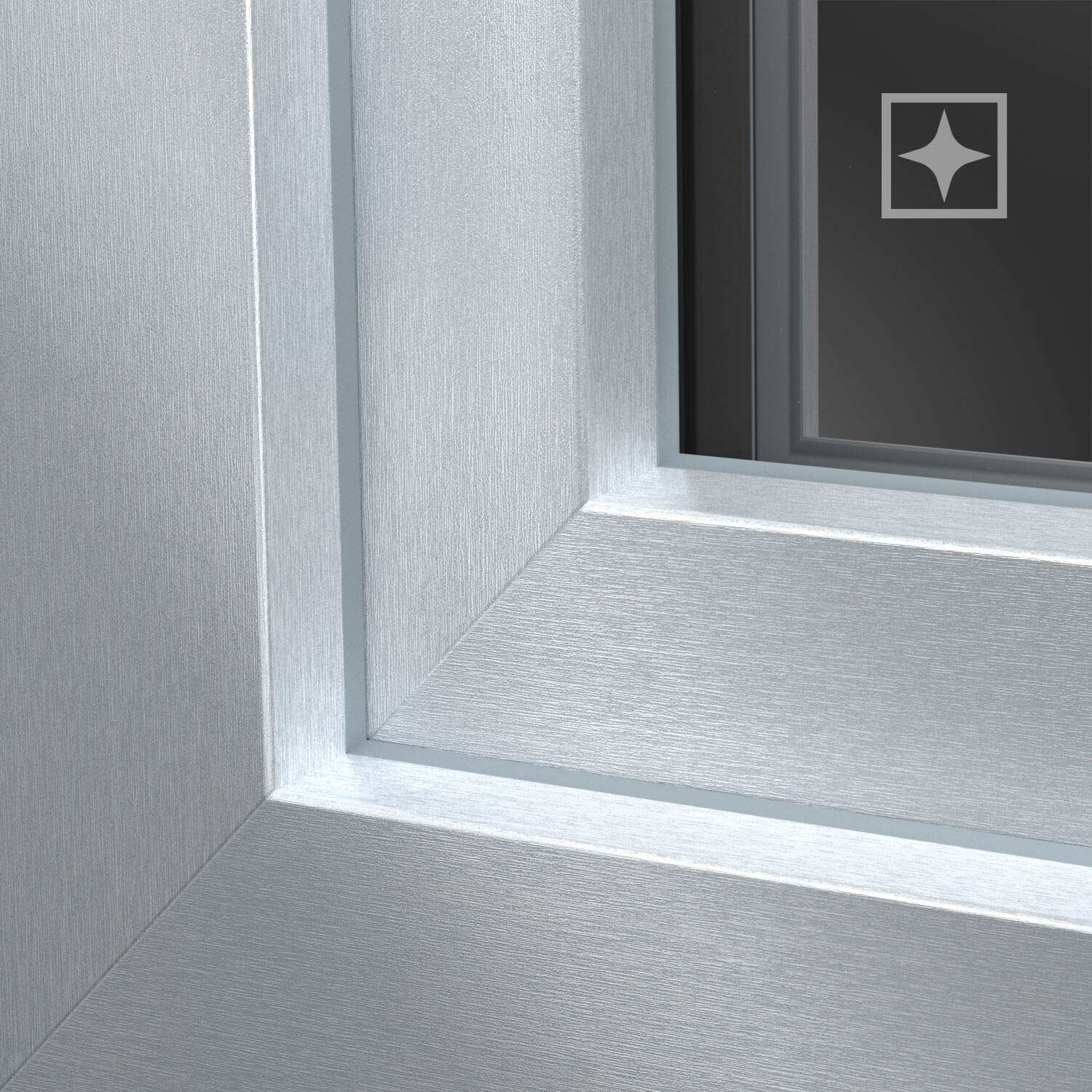

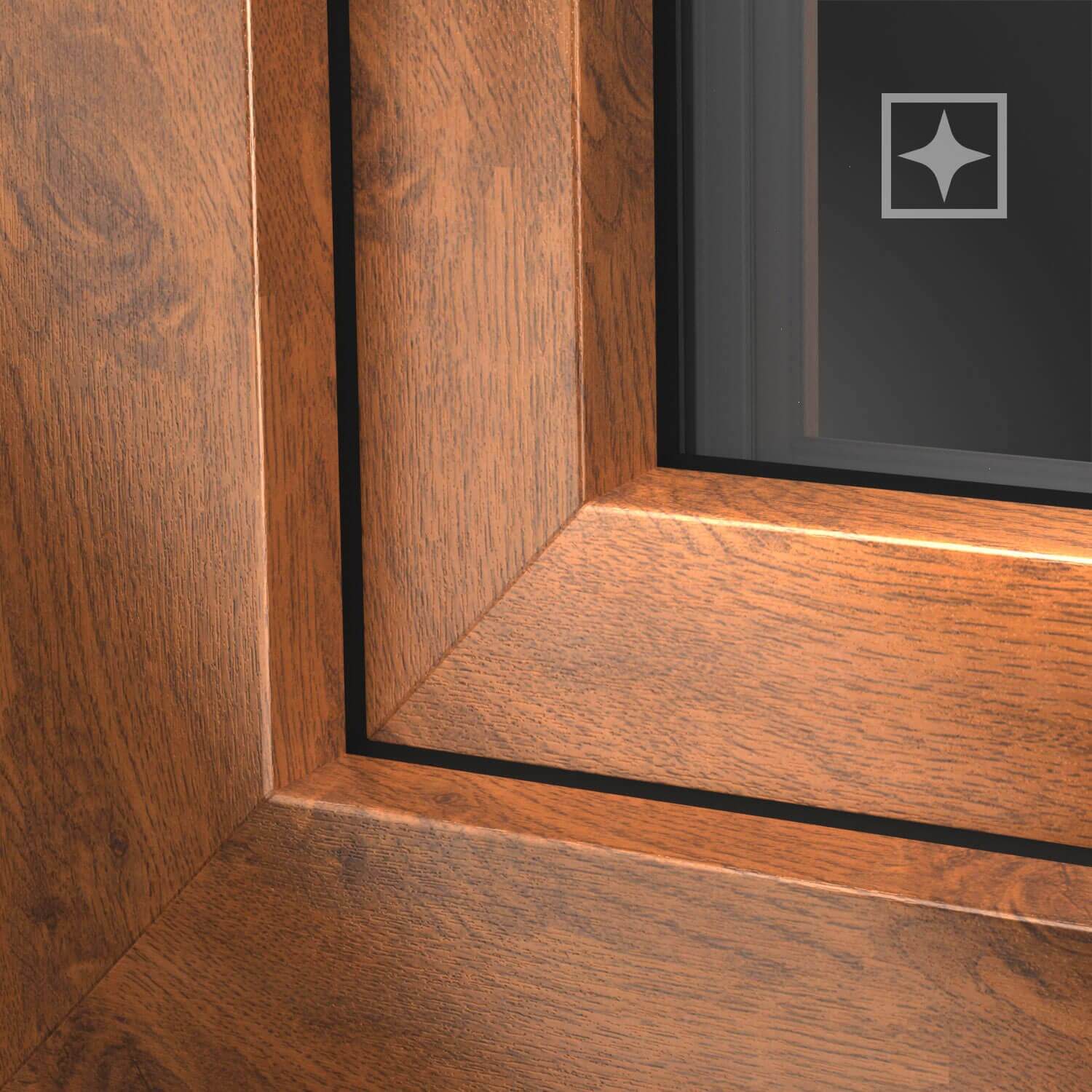

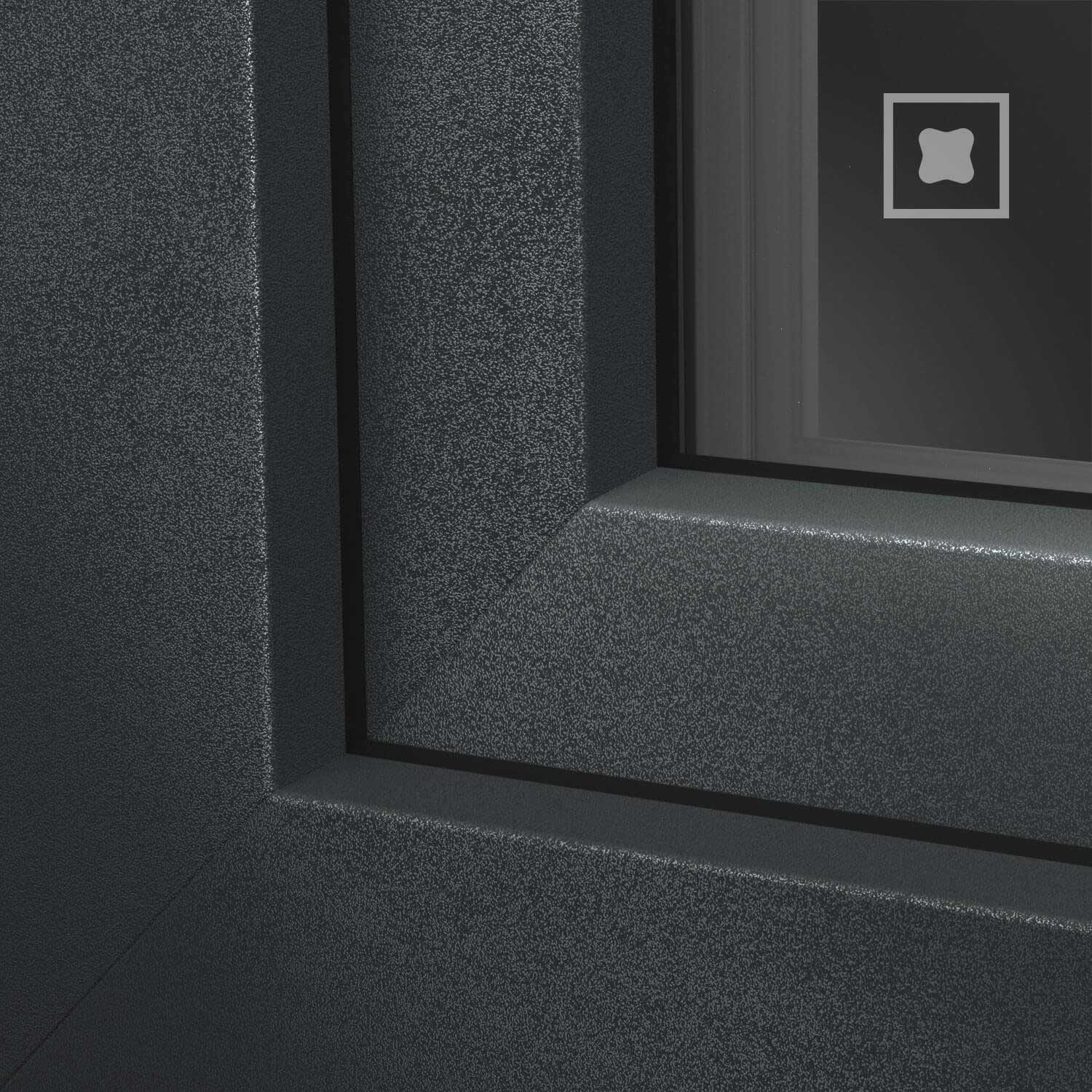

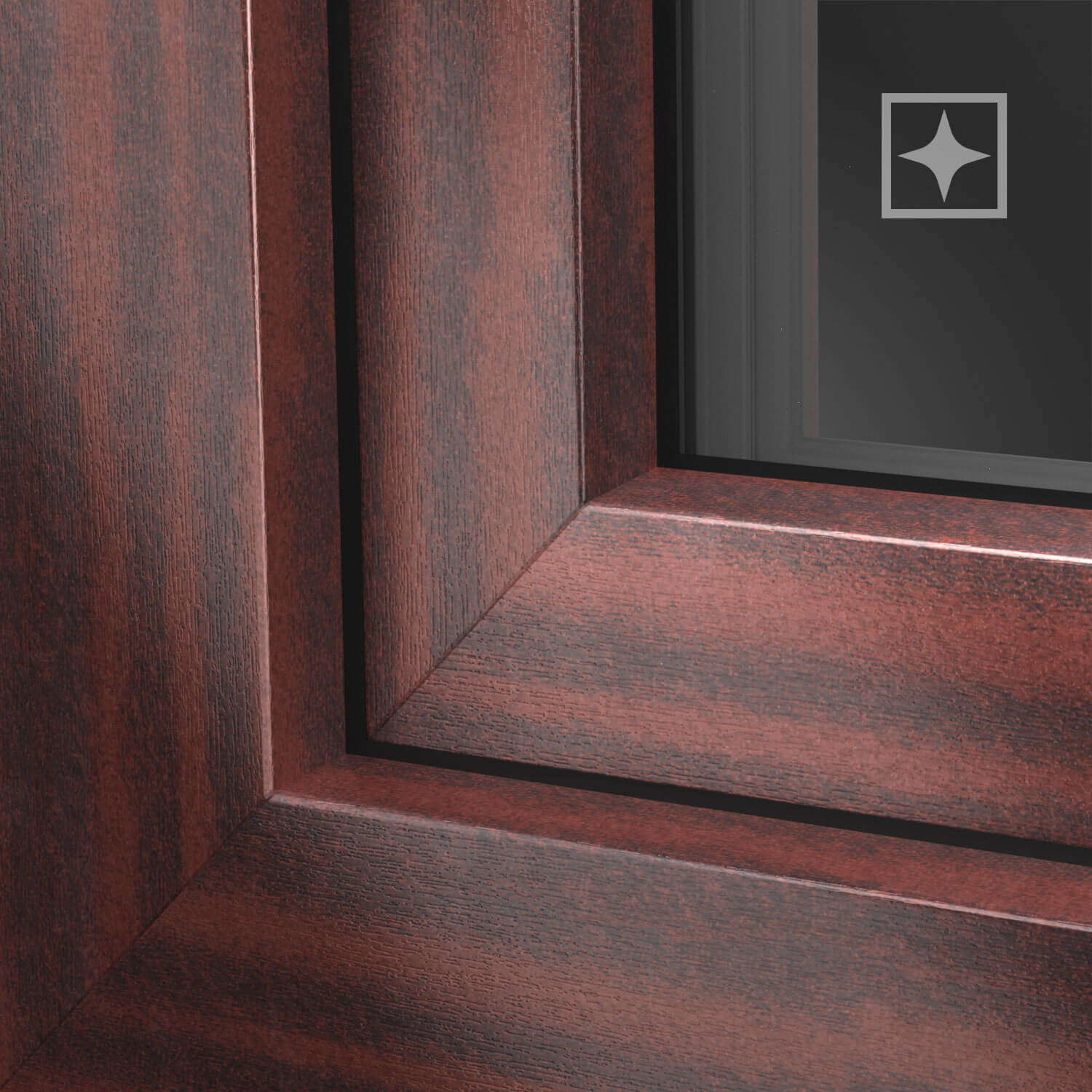

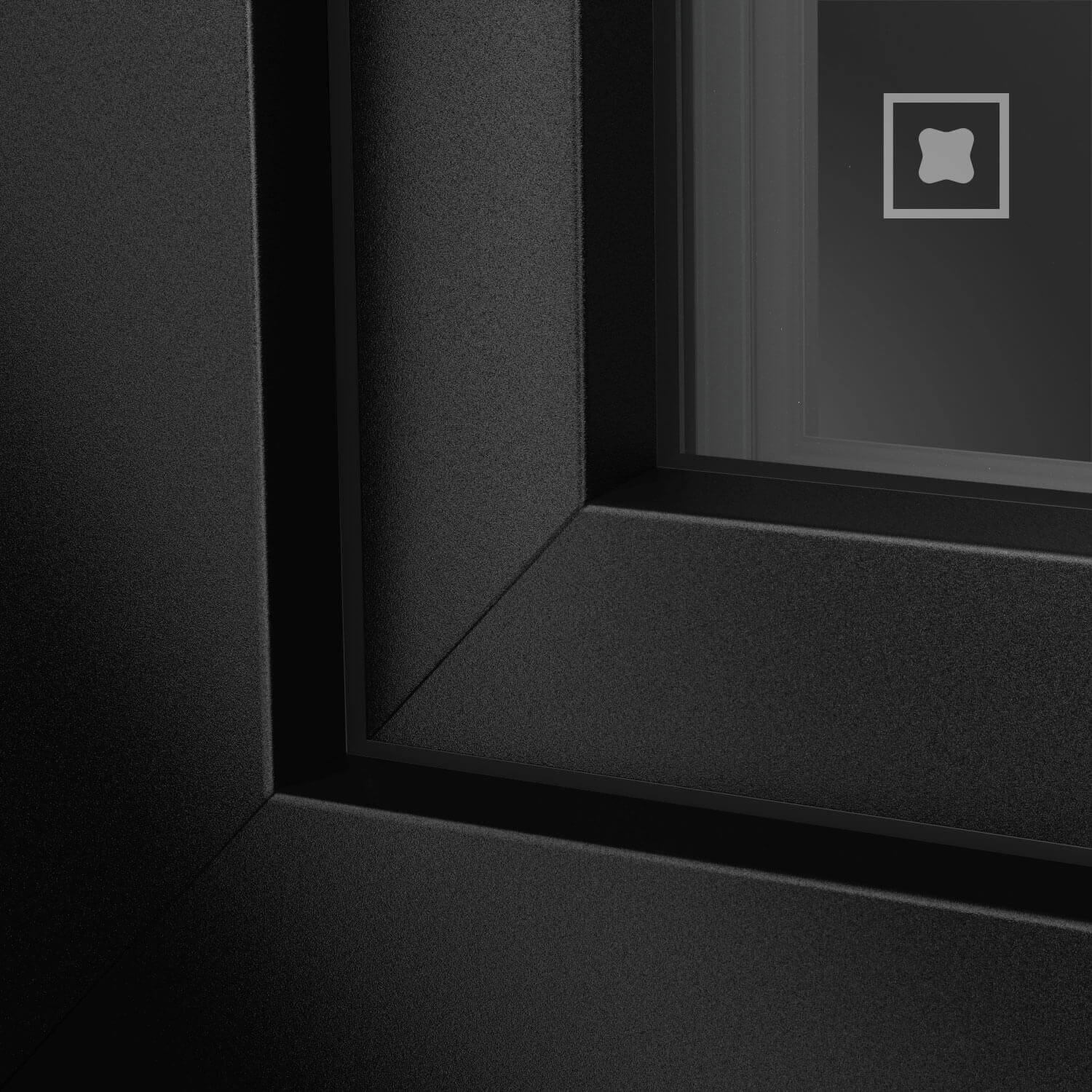

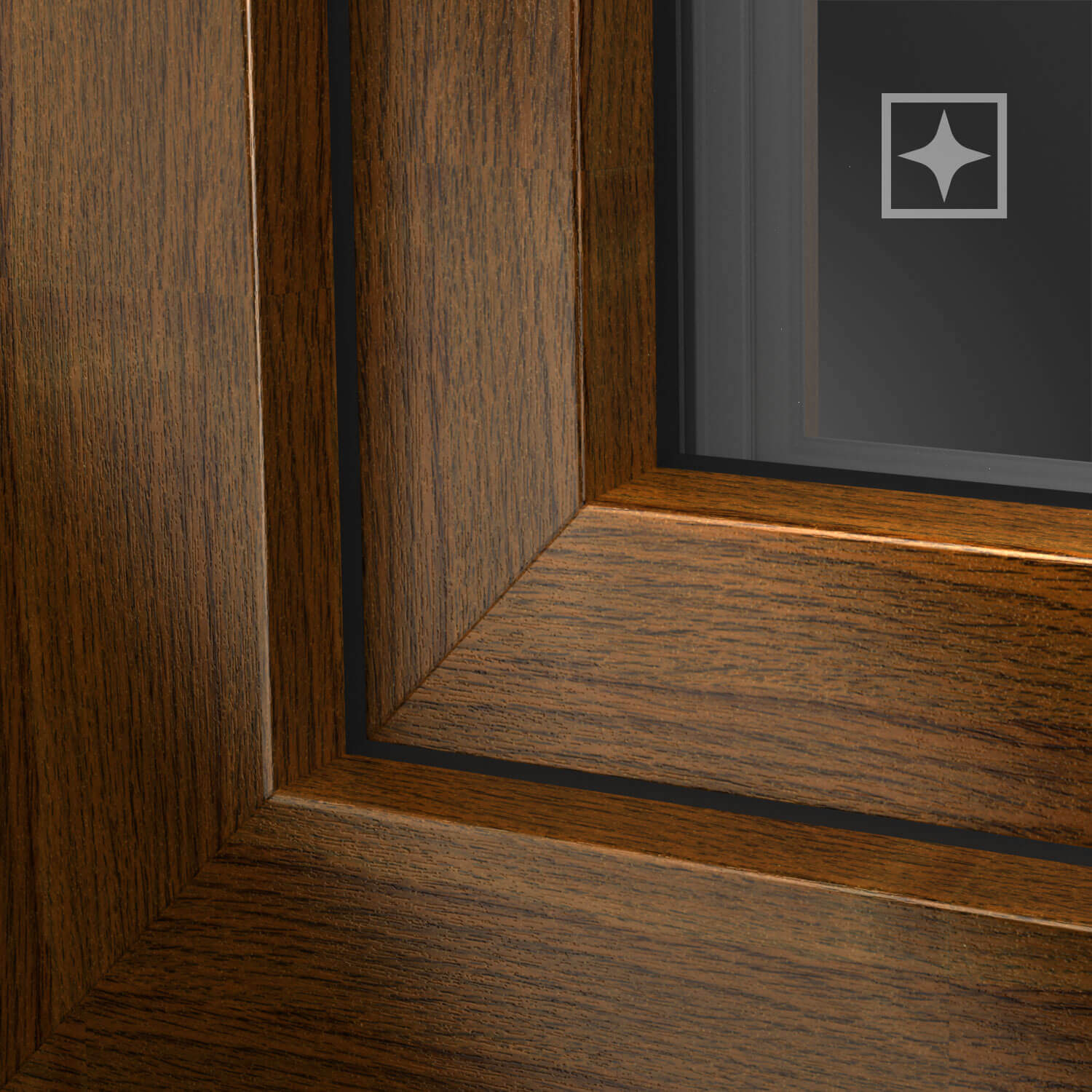

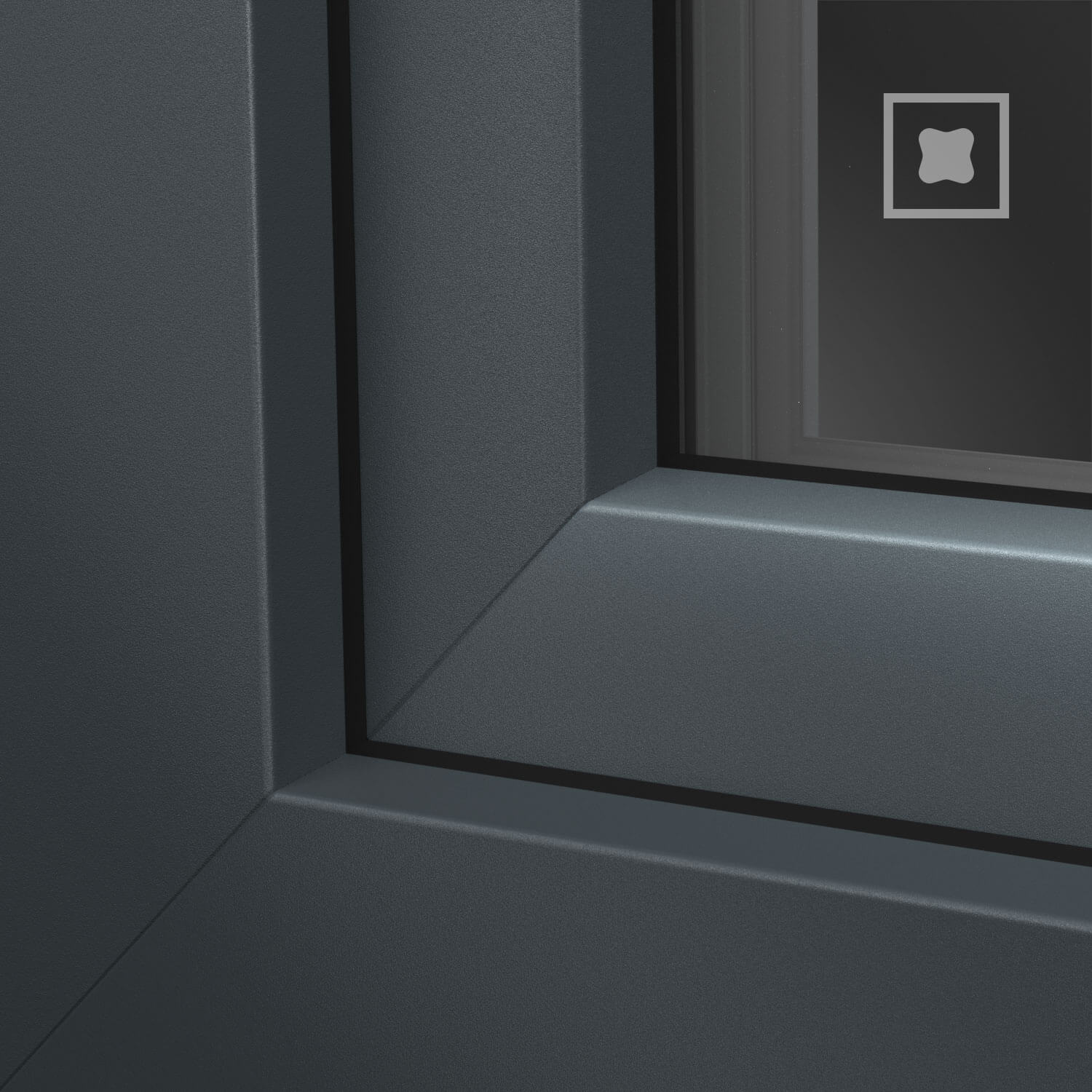

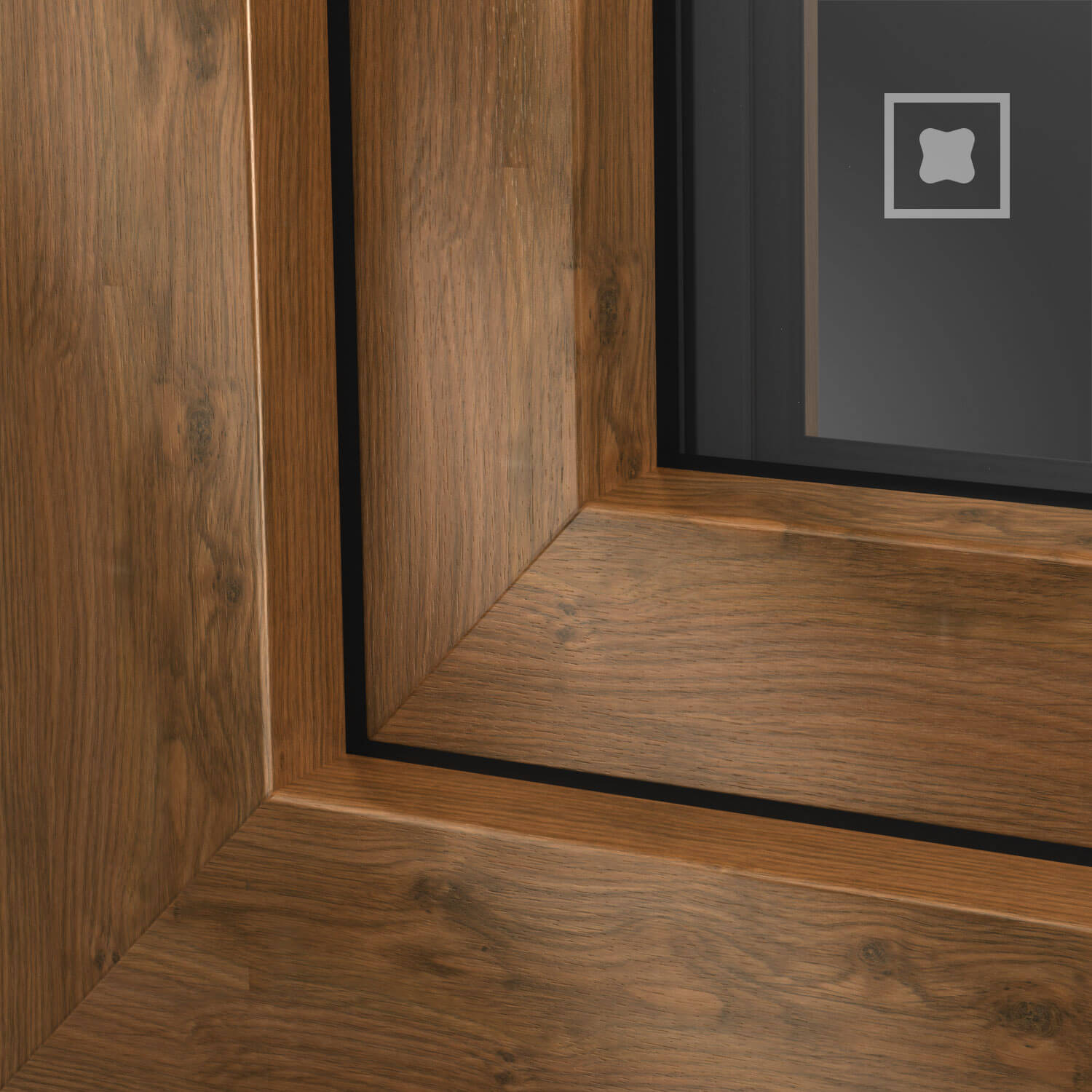

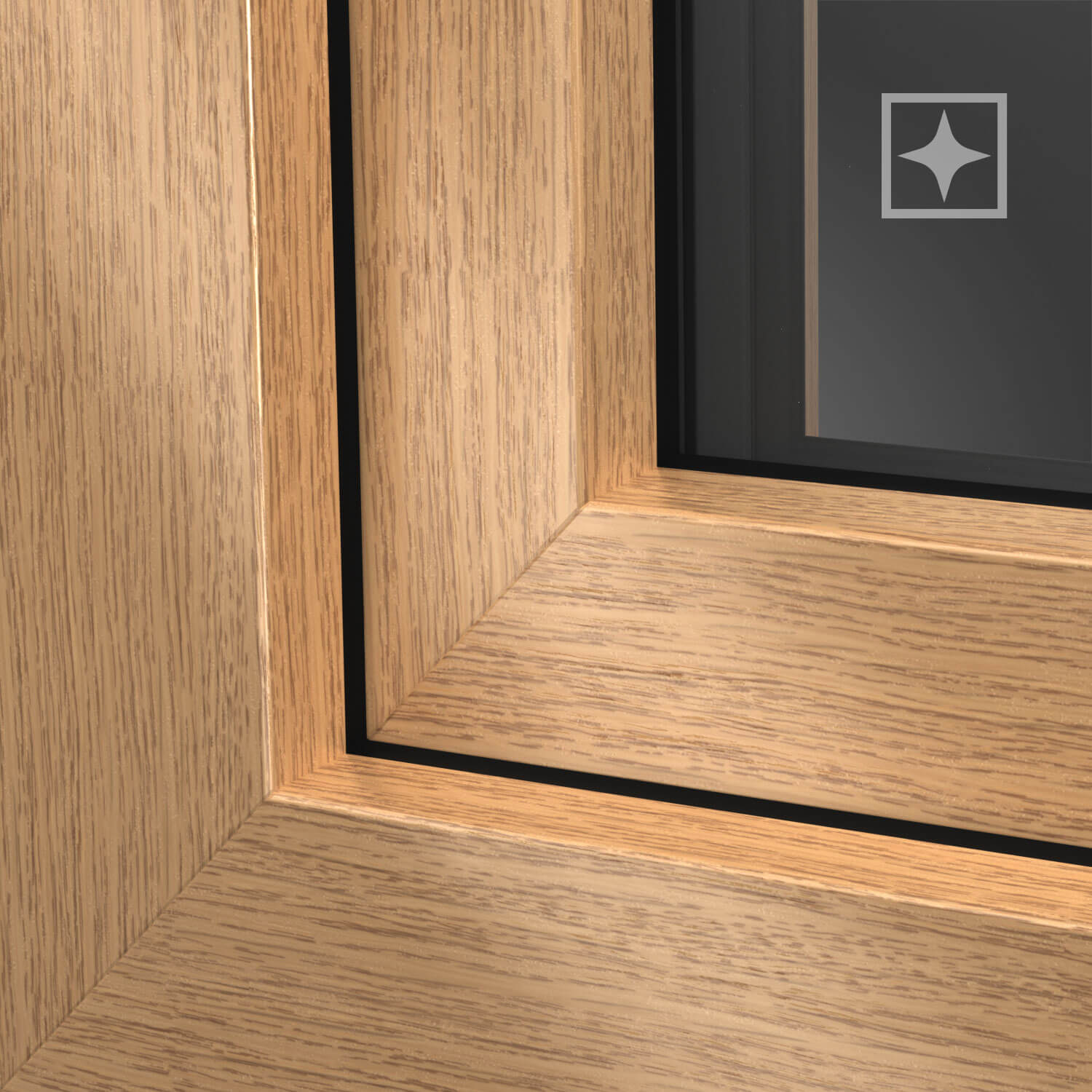

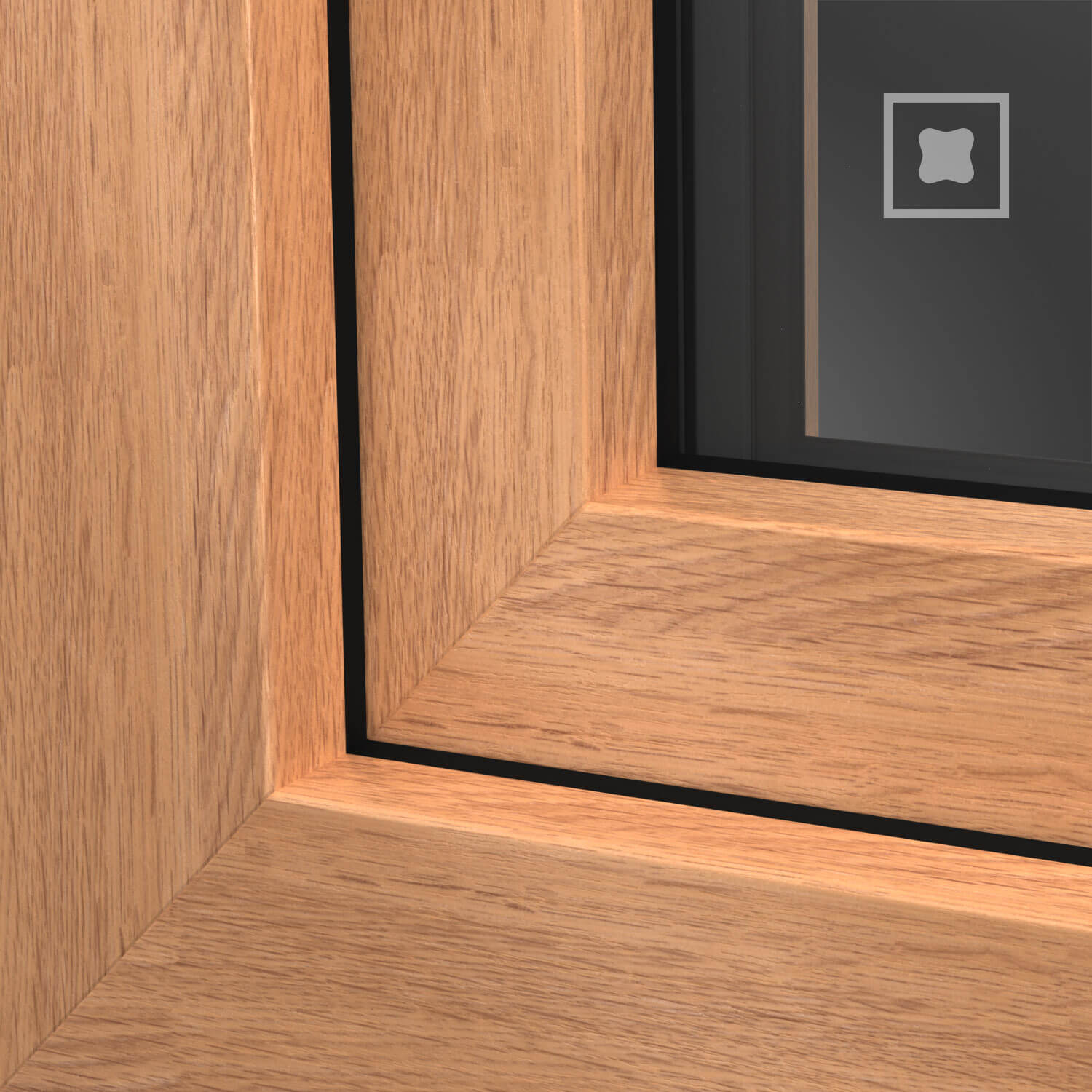

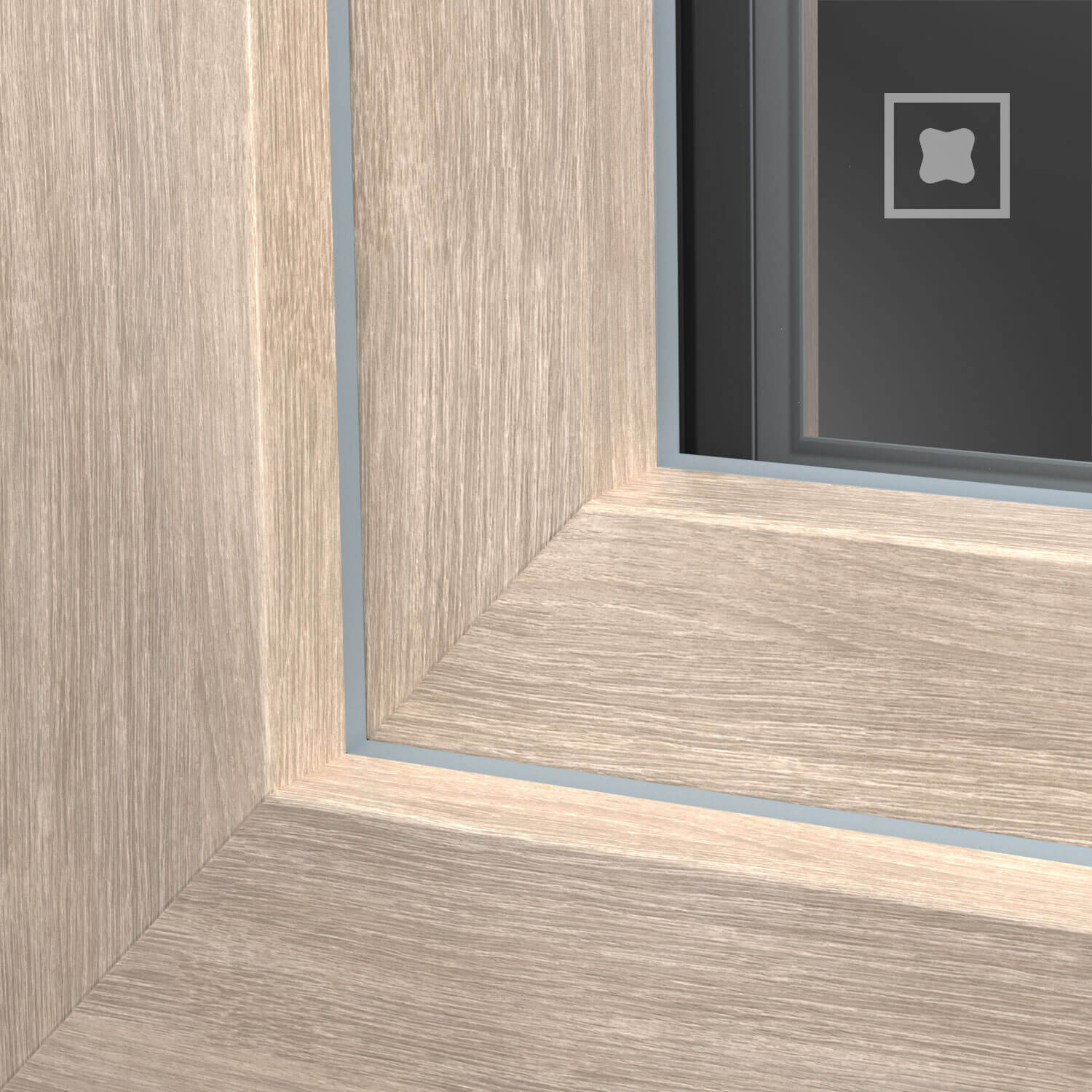

We have both the most popular traditional wood-like veneers, which perfectly fit into the classic construction e.g. Golden Oak, Walnut, Dark Oak, Winchester XA, as well as fashionable greys, black and aluminium-inspired veneers (e.g. Jet Black matt CC+, Alux DB, Metbrush Alu, Anthracite Satin).

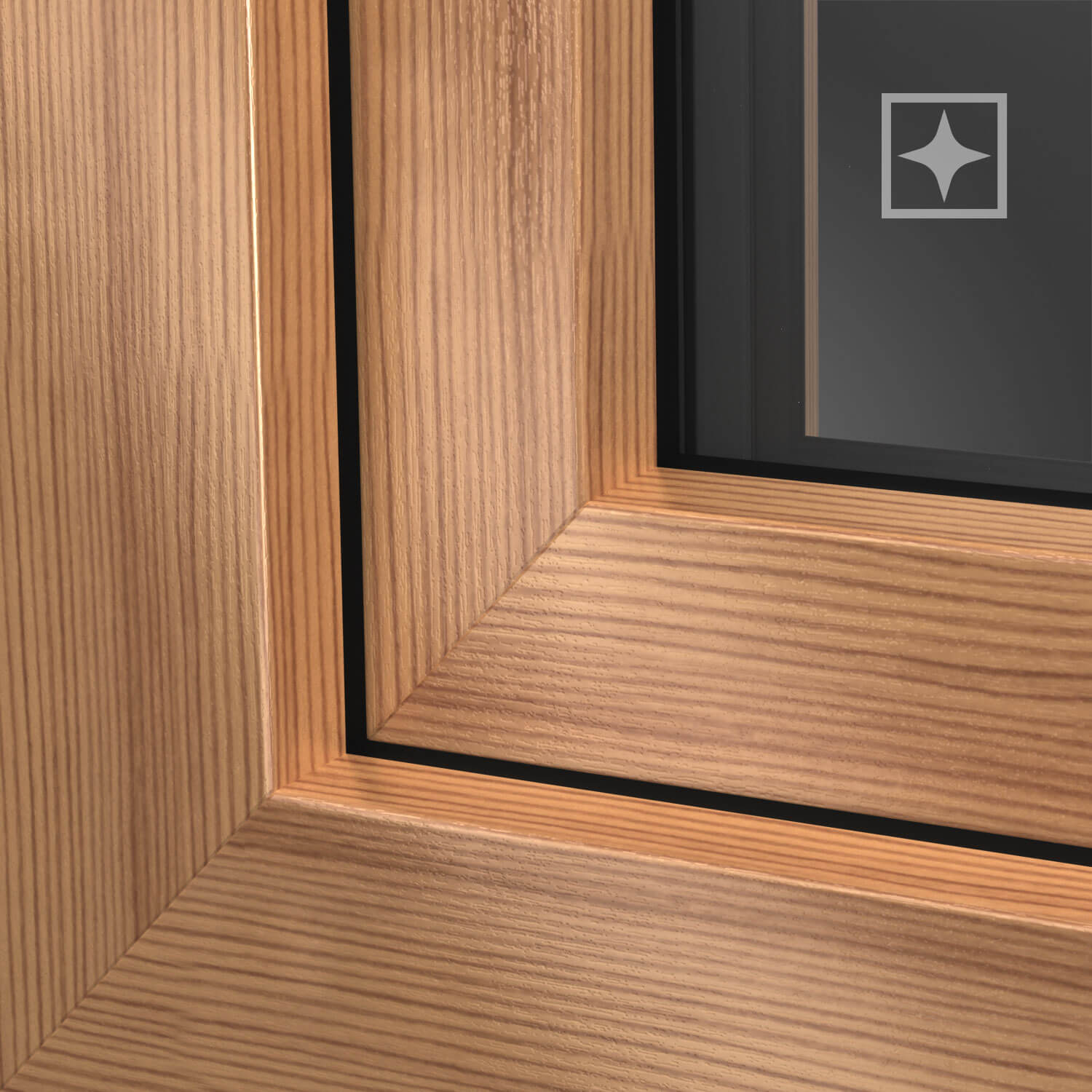

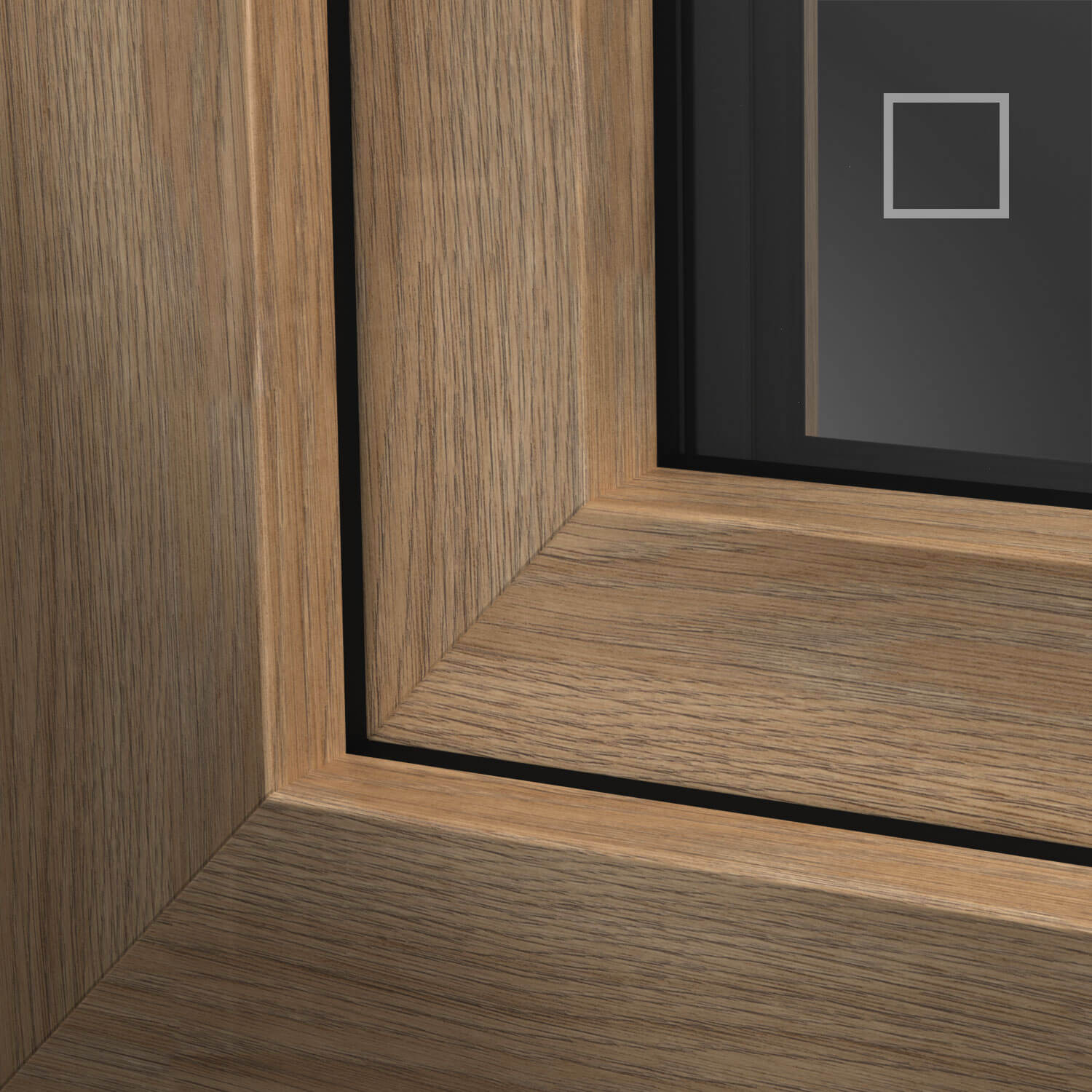

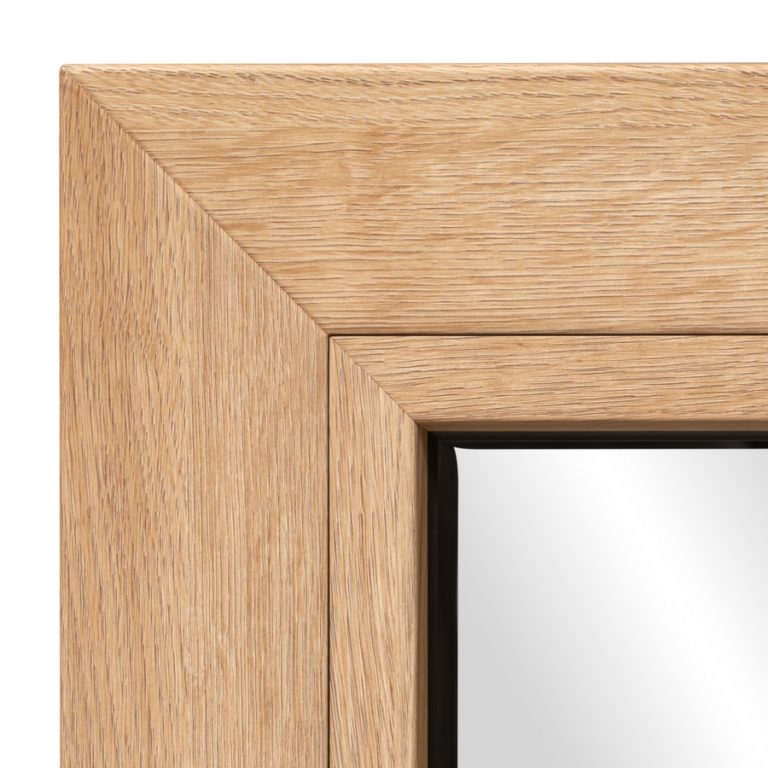

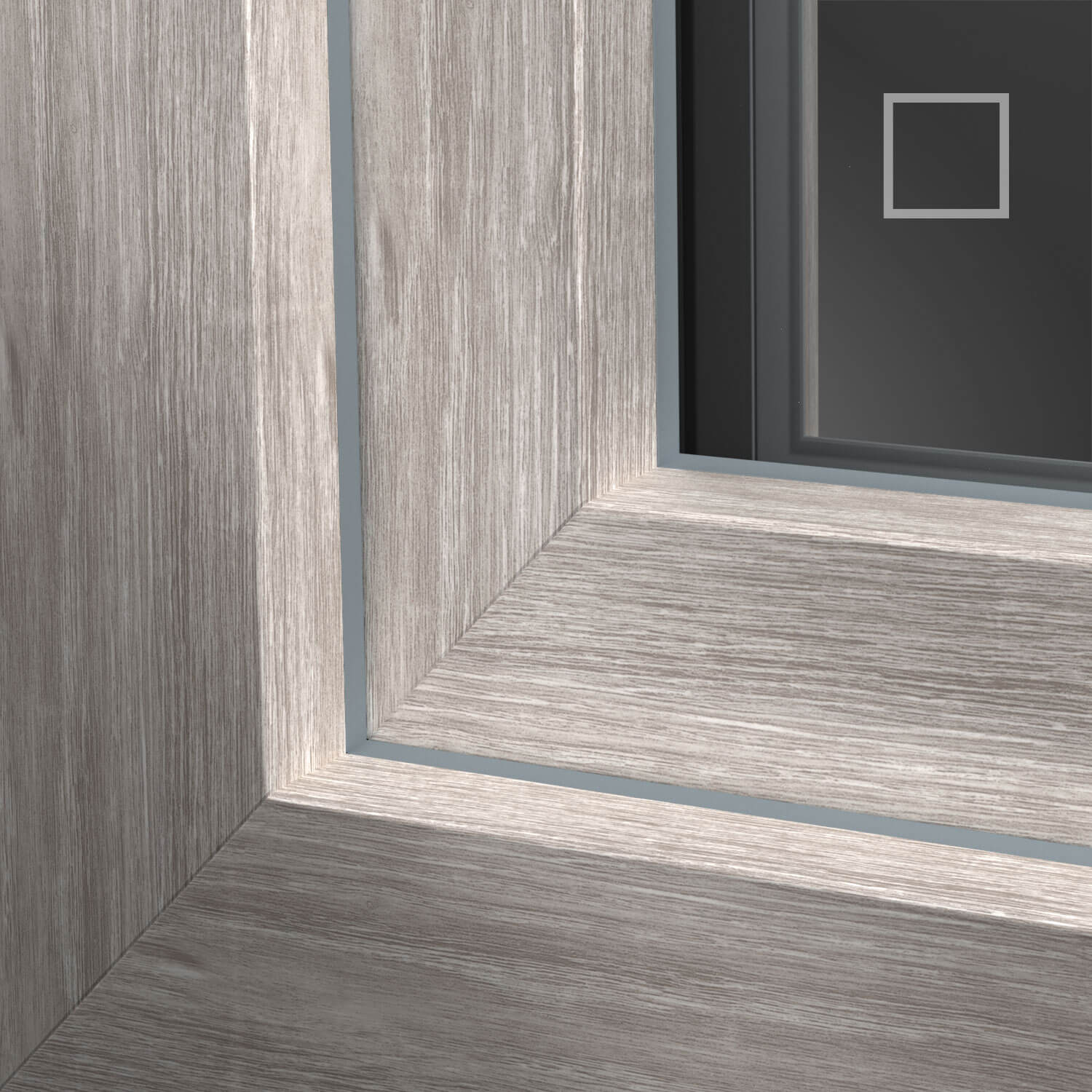

New are three veneers from the Woodec series, which are distinguished by a distinct wood structure and imitate a natural grain. The Turner Oak is characterized by subtle caramel colours, while Alpine in a cooler tone perfectly matches the Scandinavian style. Concrete veneer, on the other hand, impresses with the colour of wood thrown out of the sea, which will perfectly match modern construction.

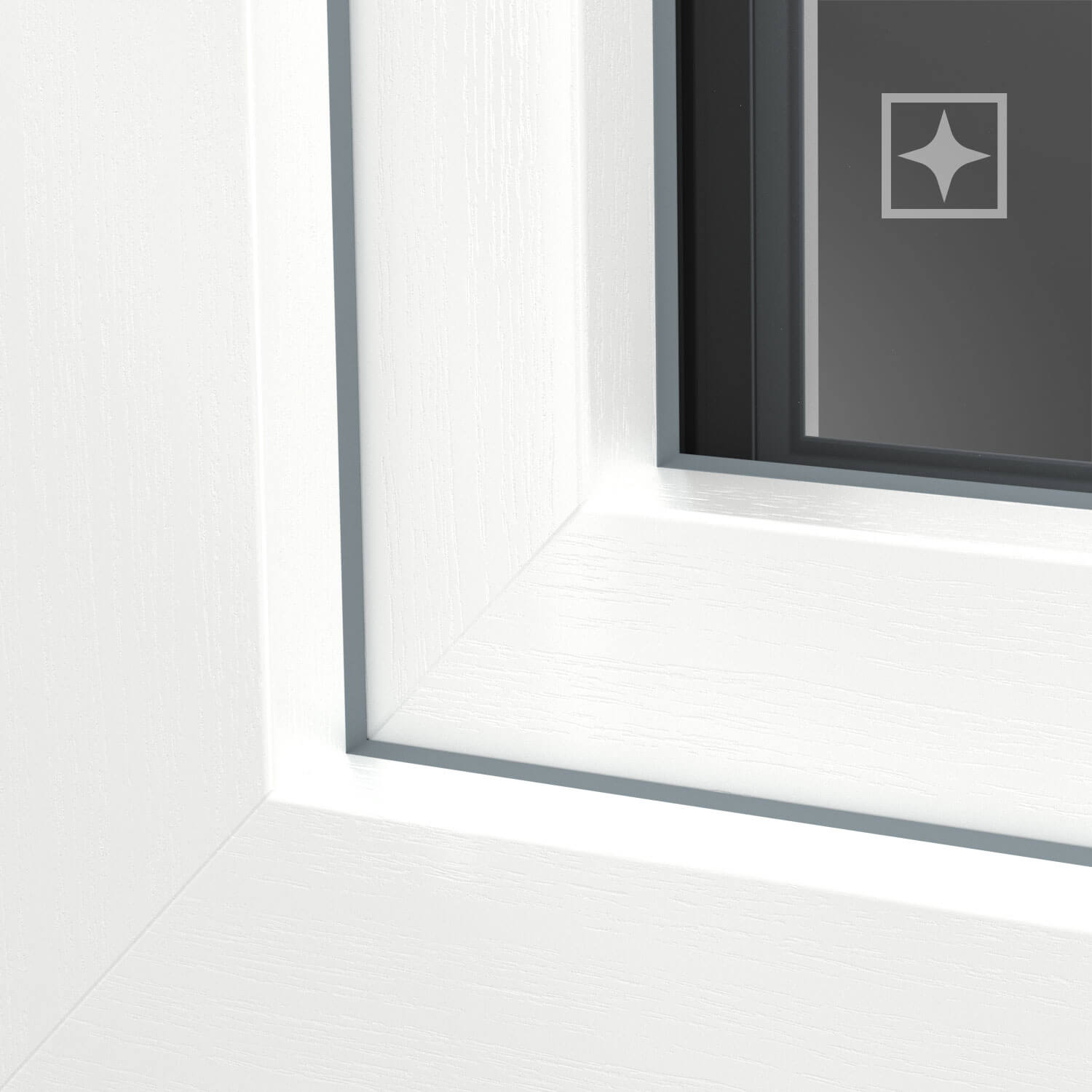

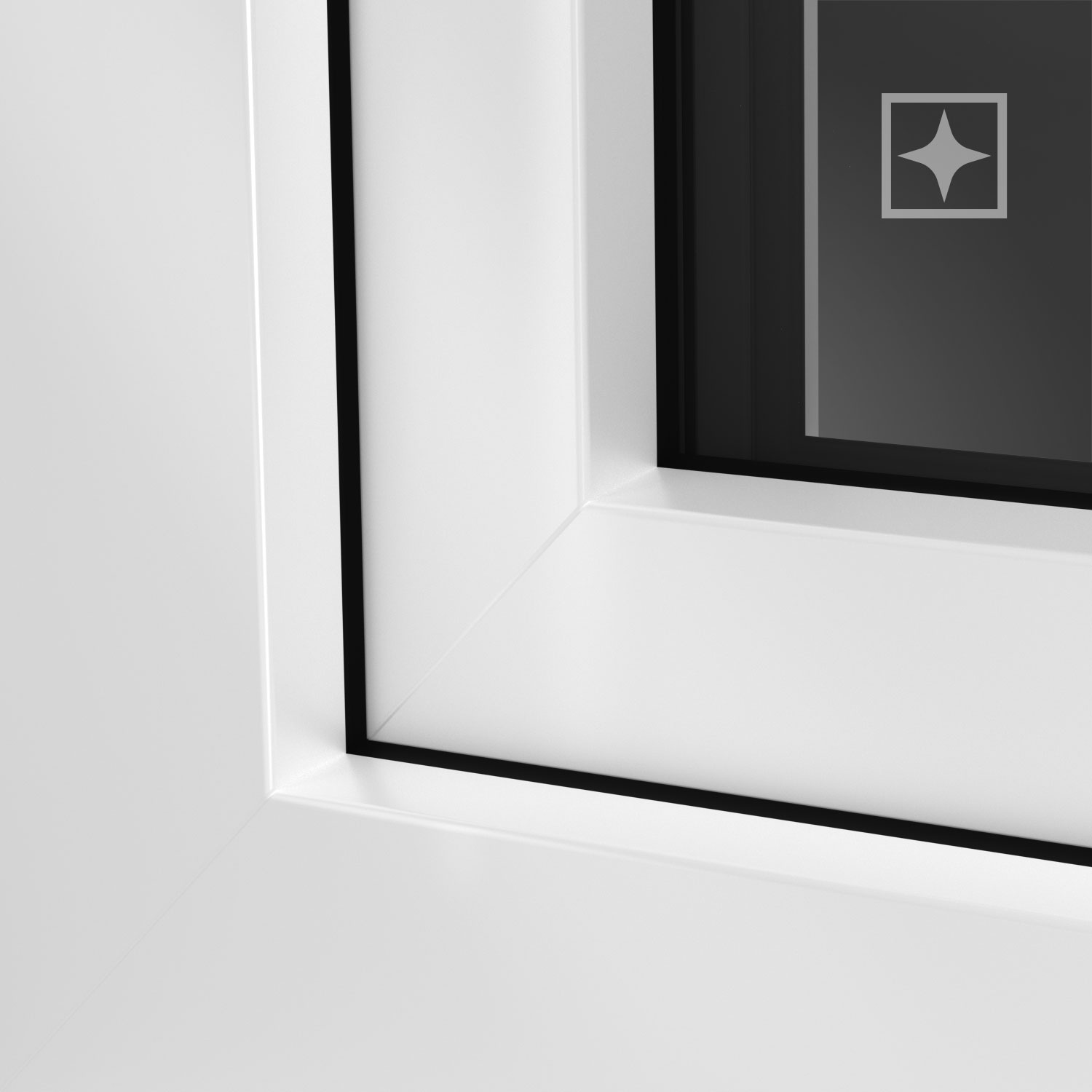

Shine

Semi-matte

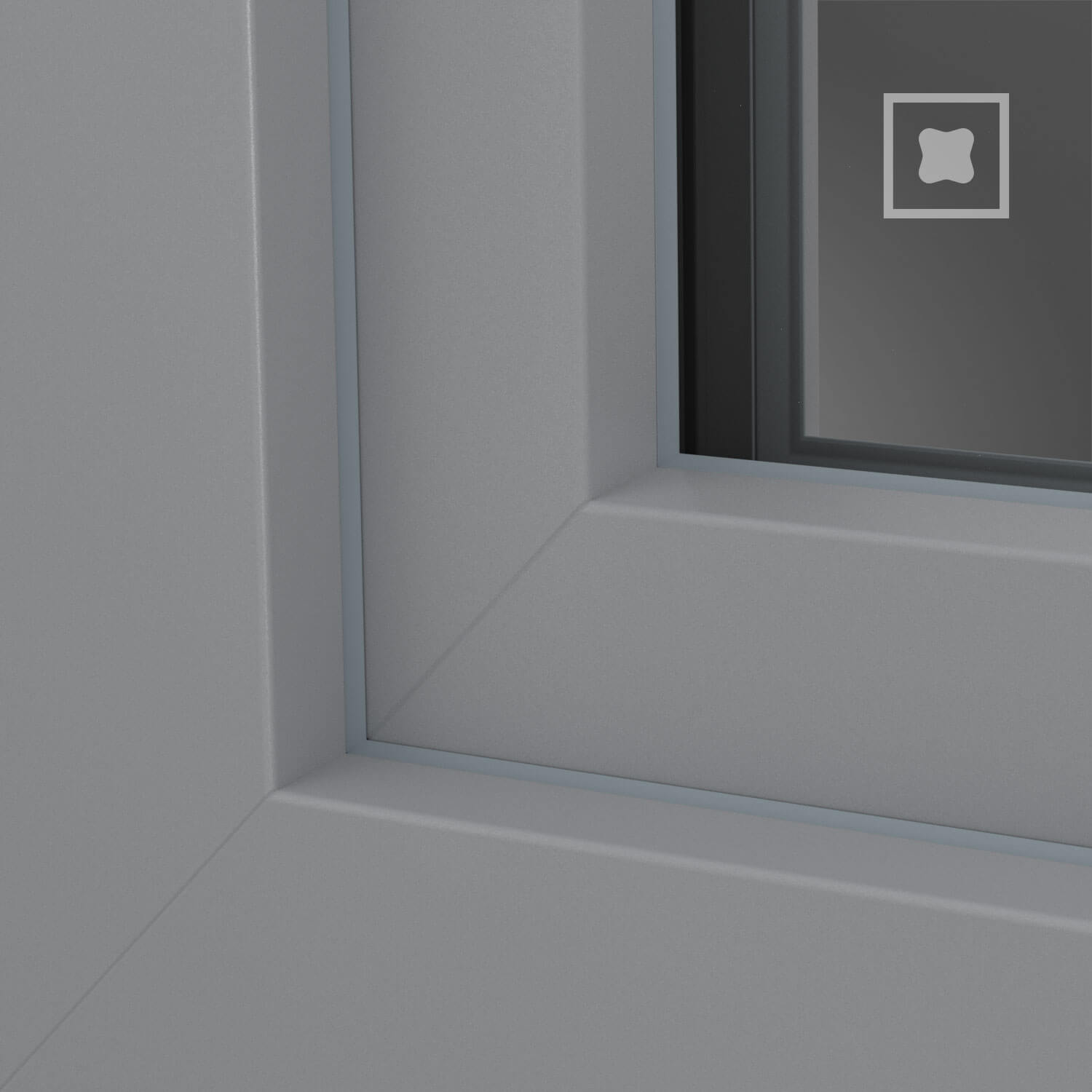

Matte

Cross-sections

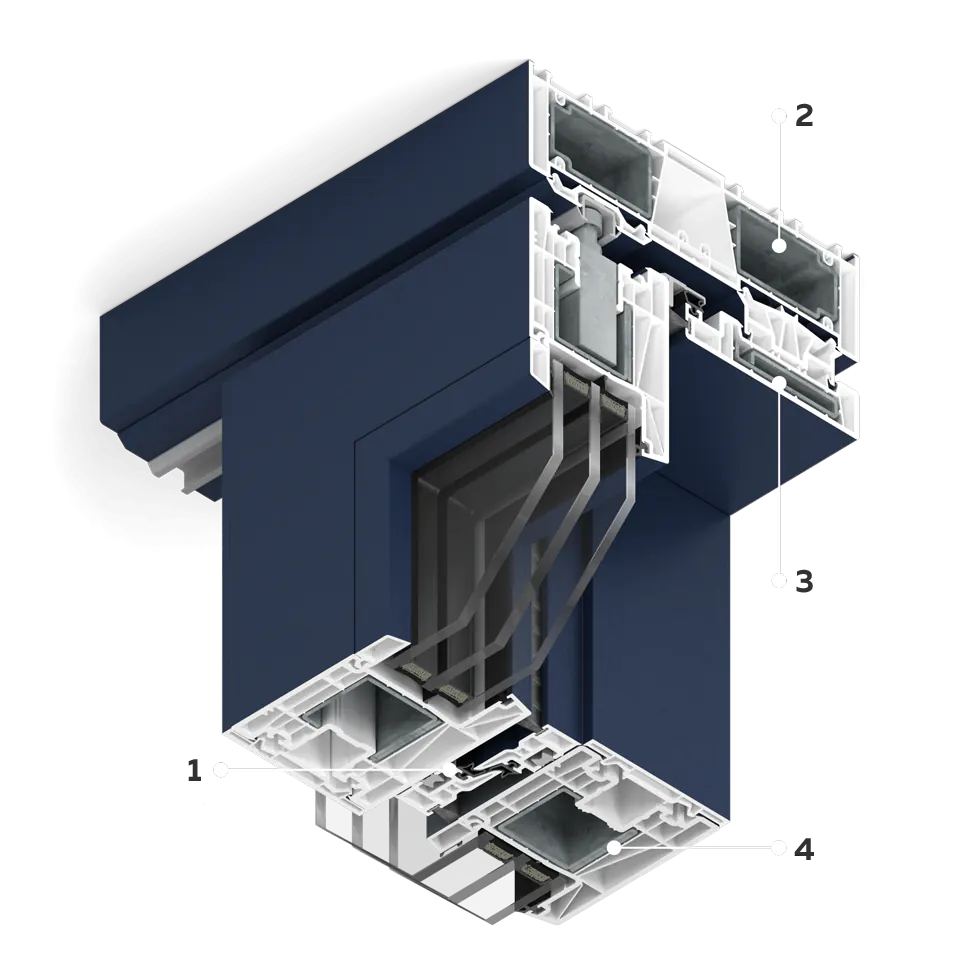

Cross-section of the upper part of Patio HST 82
  1. Interlocks center seal with two seals
  2. 2 mm reinforcements closed in the frame
  3. Safe sealing strip with steel reinforcement
  4. Double bent reinforcement

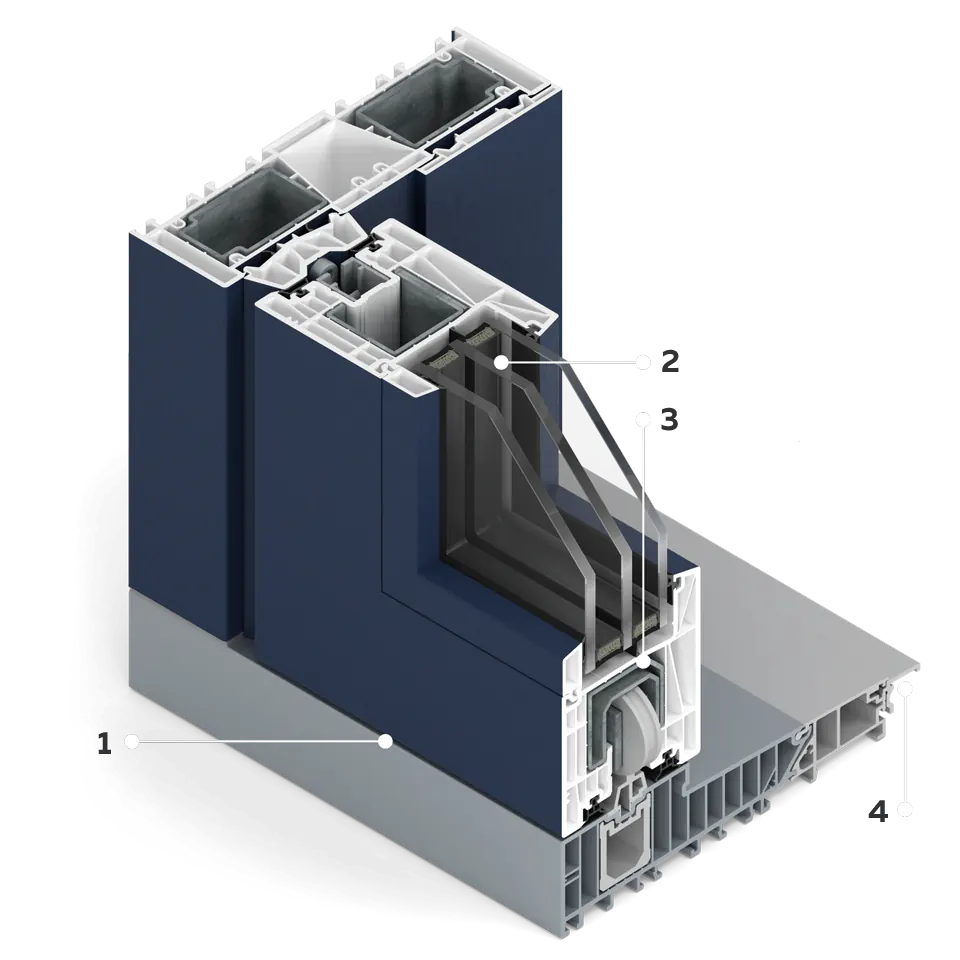

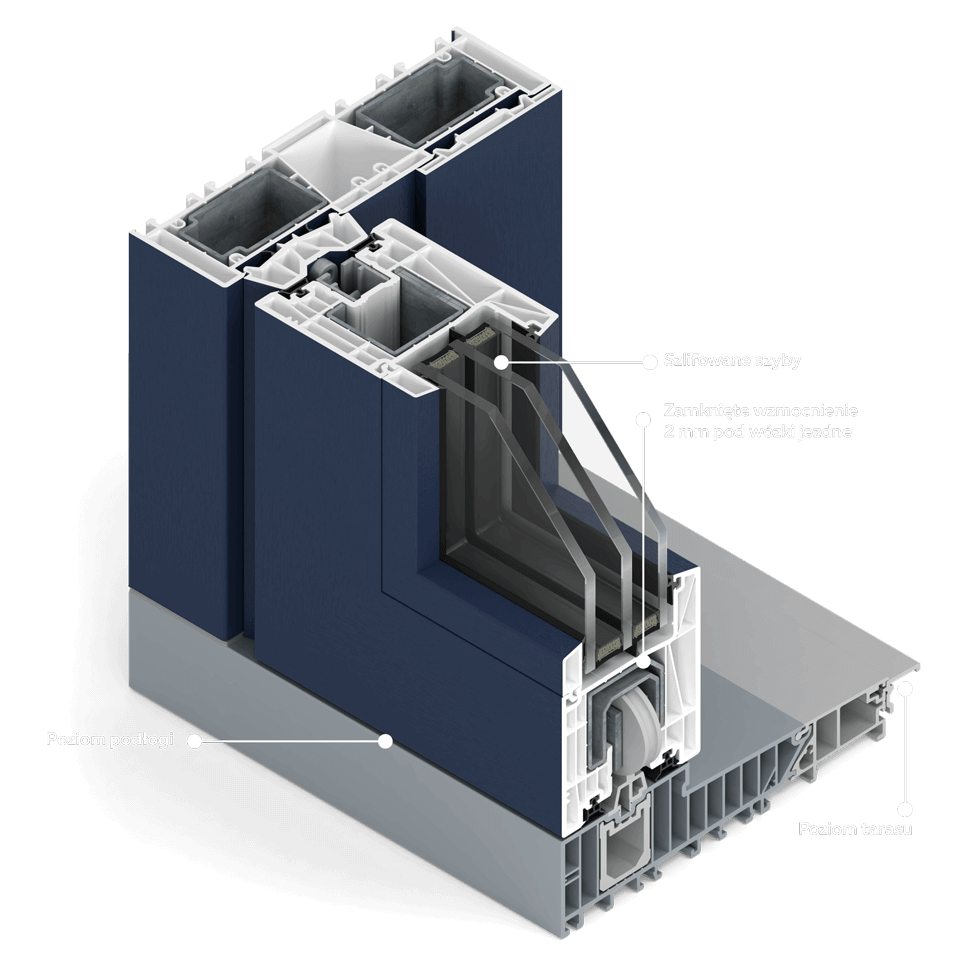

Cross-section of the lower part of Patio HST 82
  1. Floor level

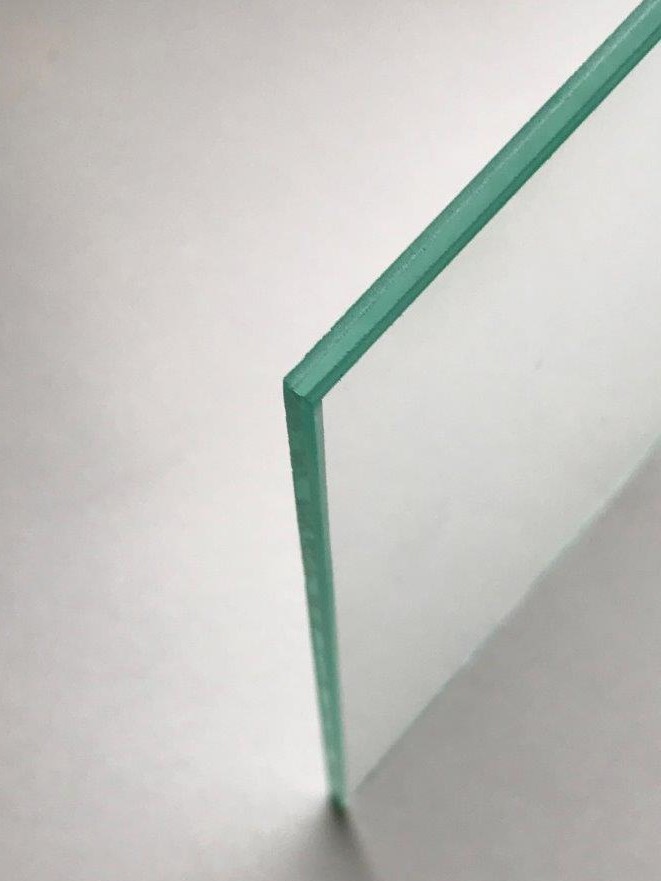

  2. Ground glass
  3. Closed 2 mm reinforcement for trolleys
  4. Terrace level

PARAMETERS

Ud = 0.78 W/m²K

for 3500 x 2180 mm construction

Lt = 74 %

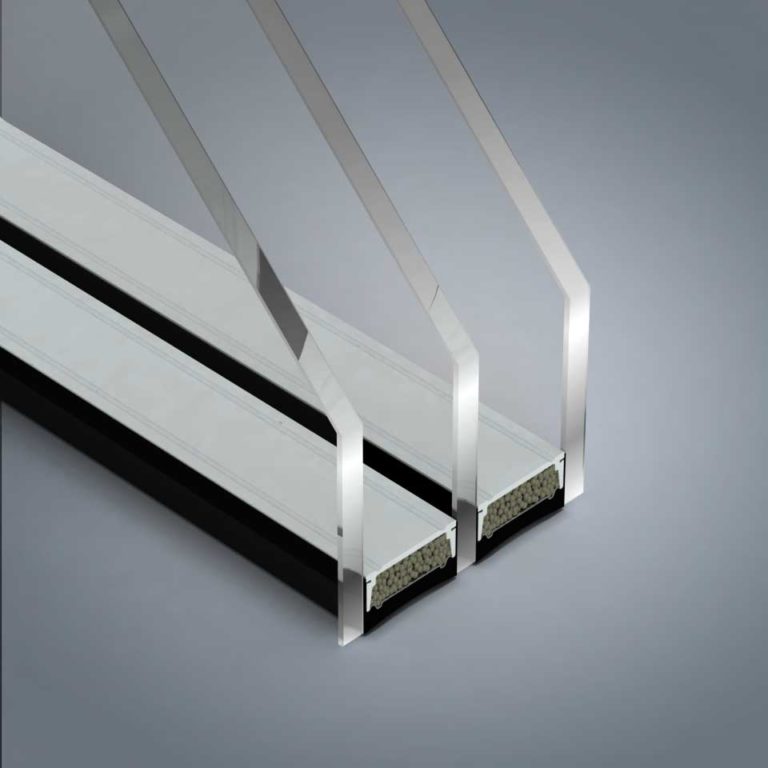

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

G = 53%

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

Withstands a pressure of 800 Pa caused by a wind speed of 129 km/h.

It does not pass water in heavy rain with a wind speed of 112 km/h.

Rw = 35 dB to 46 dB
depending on the acoustic glass
