External harmony

Optimum 79N US windows

The hidden window sash of Optimum 79N US promotes integration with the surroundings. The sash hidden behind the frame makes the structure blend in with the building’s façade, creating external harmony . Aluminum windows are characterized by very good thermal performance due to the use of special profile insulation technology.

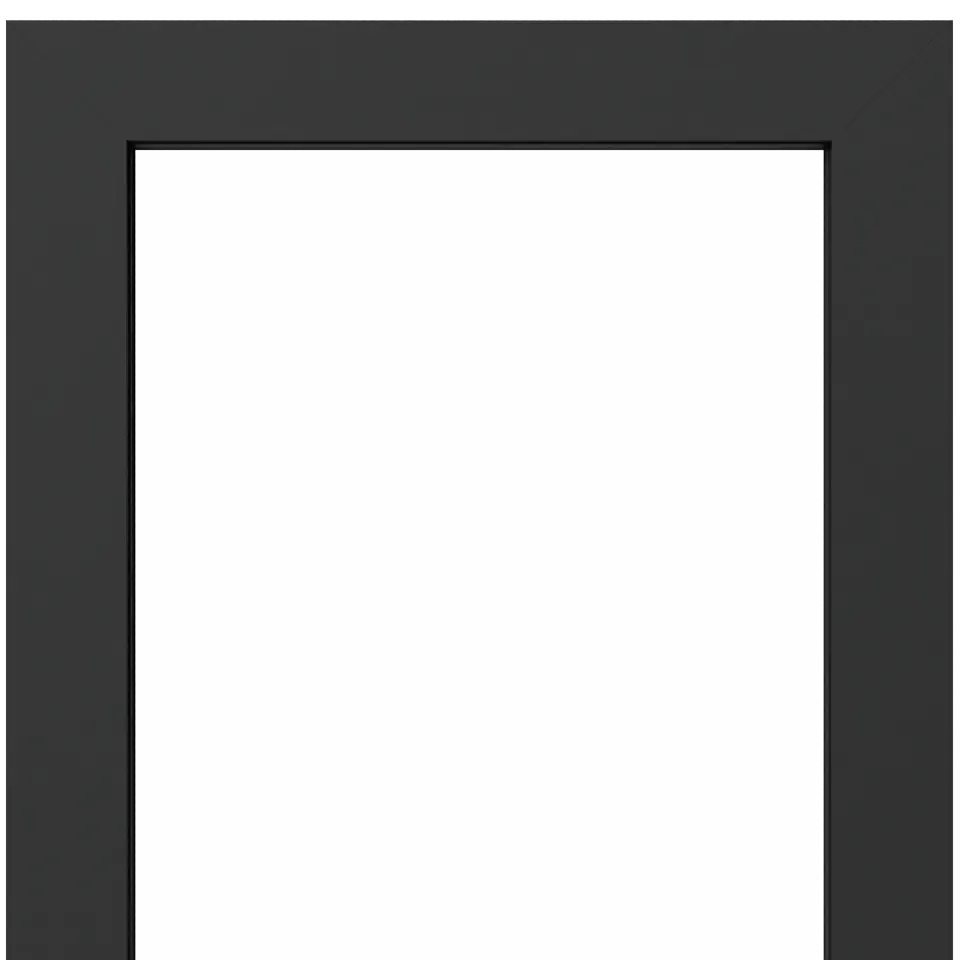

The best visual effect is guaranteed by single-leaf structures. From the outside, they look as if only glass was installed instead of windows.

The best visual effect is guaranteed by single-leaf structures. From the outside, they look as if only glass was installed instead of windows. The solution with a hidden leaf fits perfectly with the entire Premium 86 offer – patio and entrance doors, sliding structures and facades.

HARMONY

OUTSIDE

Center seal

A specially designed central seal in the frame and sash ( SI ) guarantees excellent thermal parameters. Uw for the reference window is 0.82 W/m2K (with SUPERtermo 0.5 double-chamber glass and THERMOBAR warm edge).

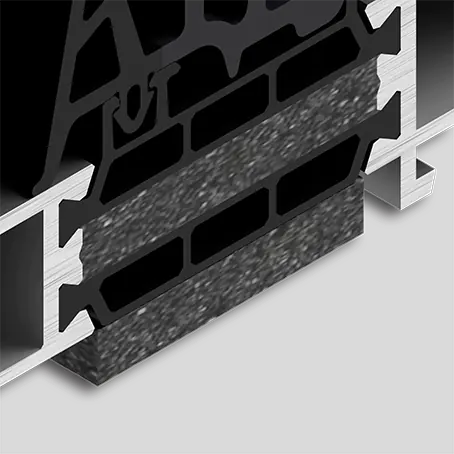

AERO TECHNOLOGY

The AERO profile insulation technology guarantees the structure excellent thermal parameters. A special insert in the frame is made of airgel (a highly insulating material). The heat transfer coefficient Uw for the reference window is 0.78 W/m ² K (with SUPERtermo 0.5 double-chamber glass and Thermobar warm edge).

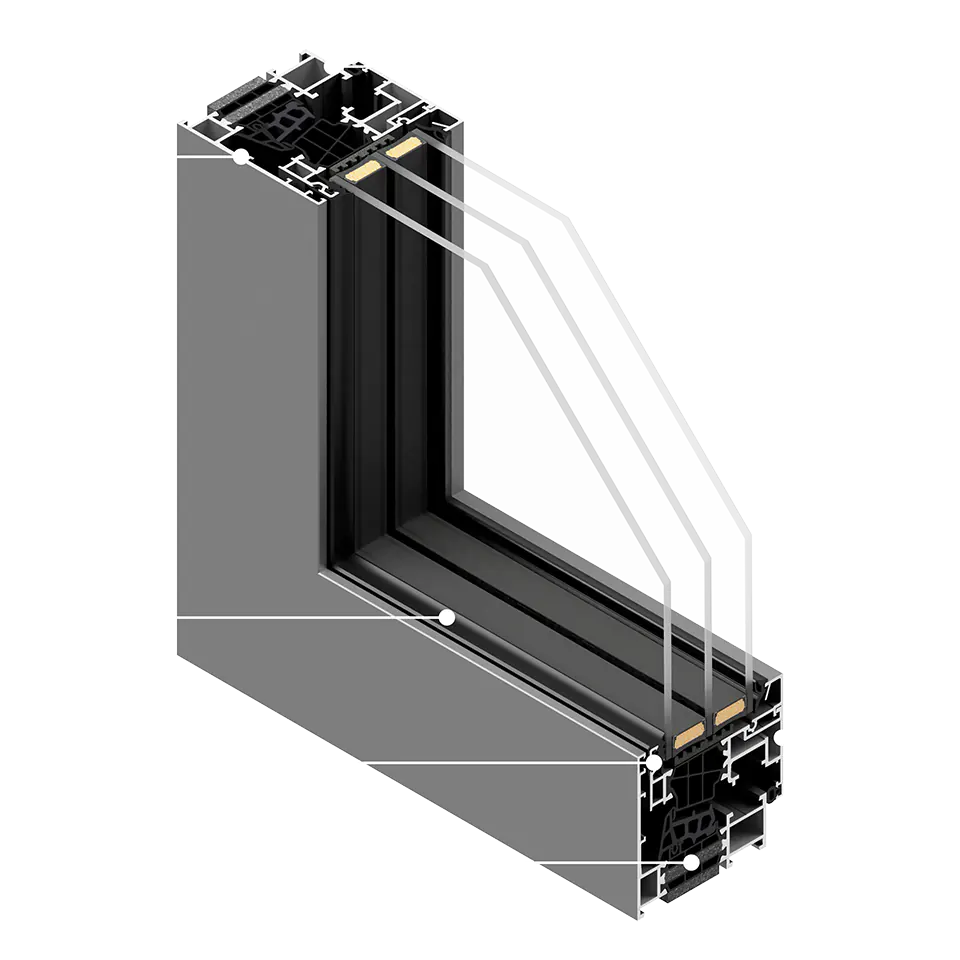

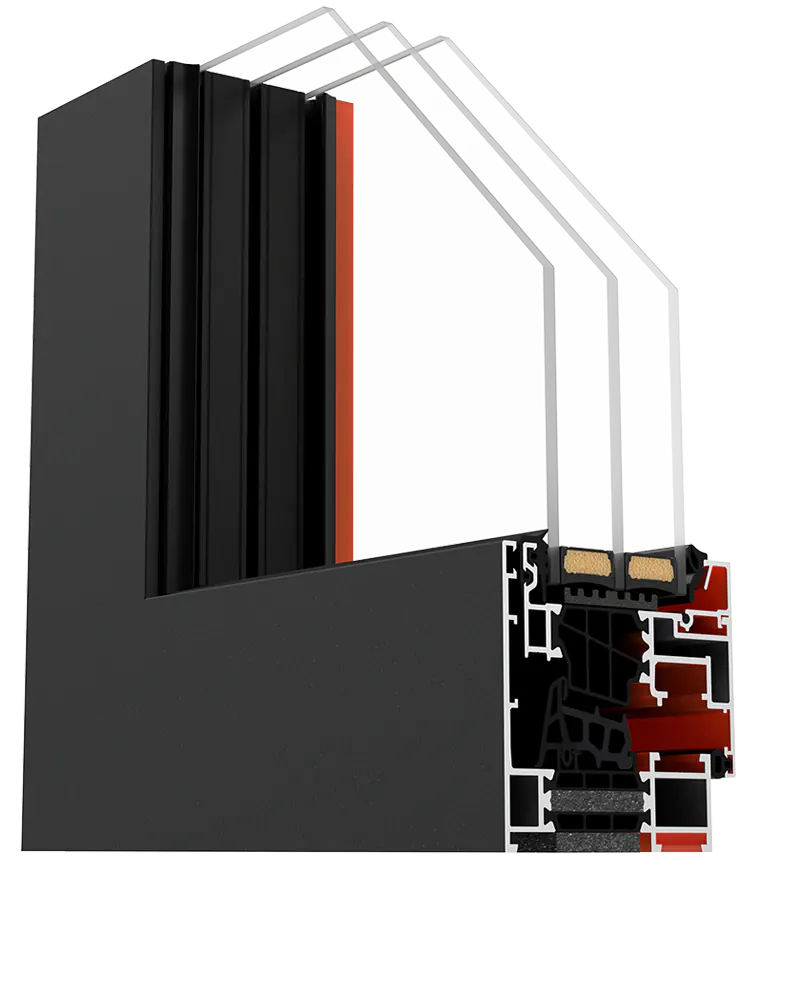

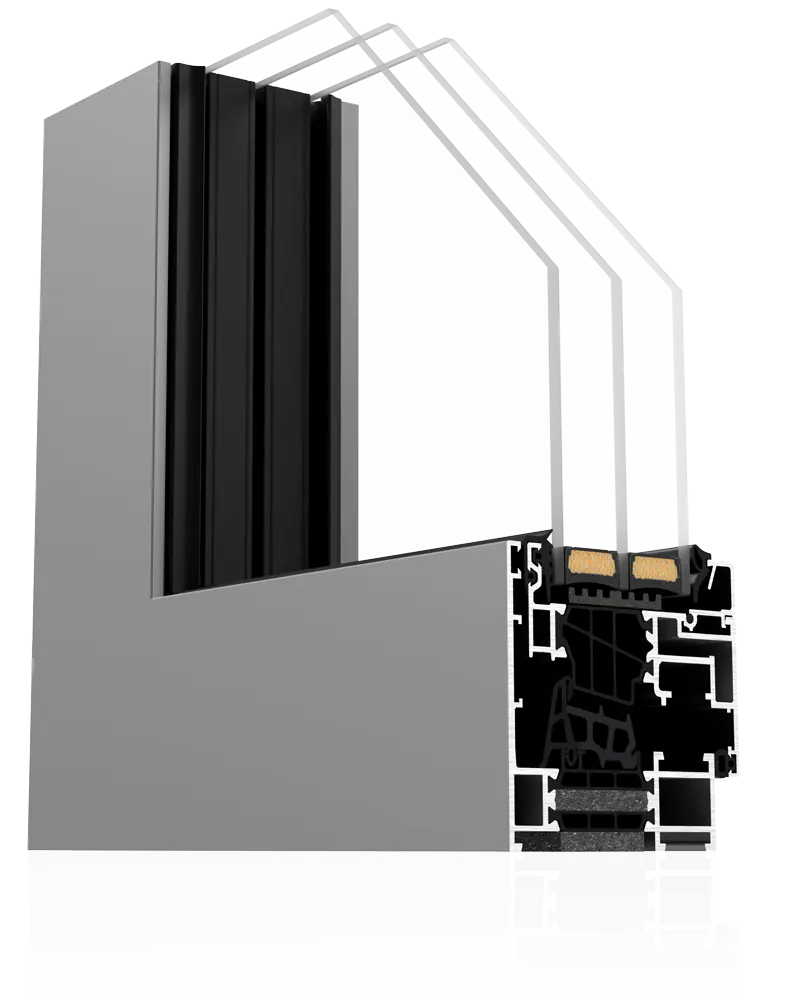

Cross-sections

Folding width – 77 mm (frame/leaf)
Outer leaf seal

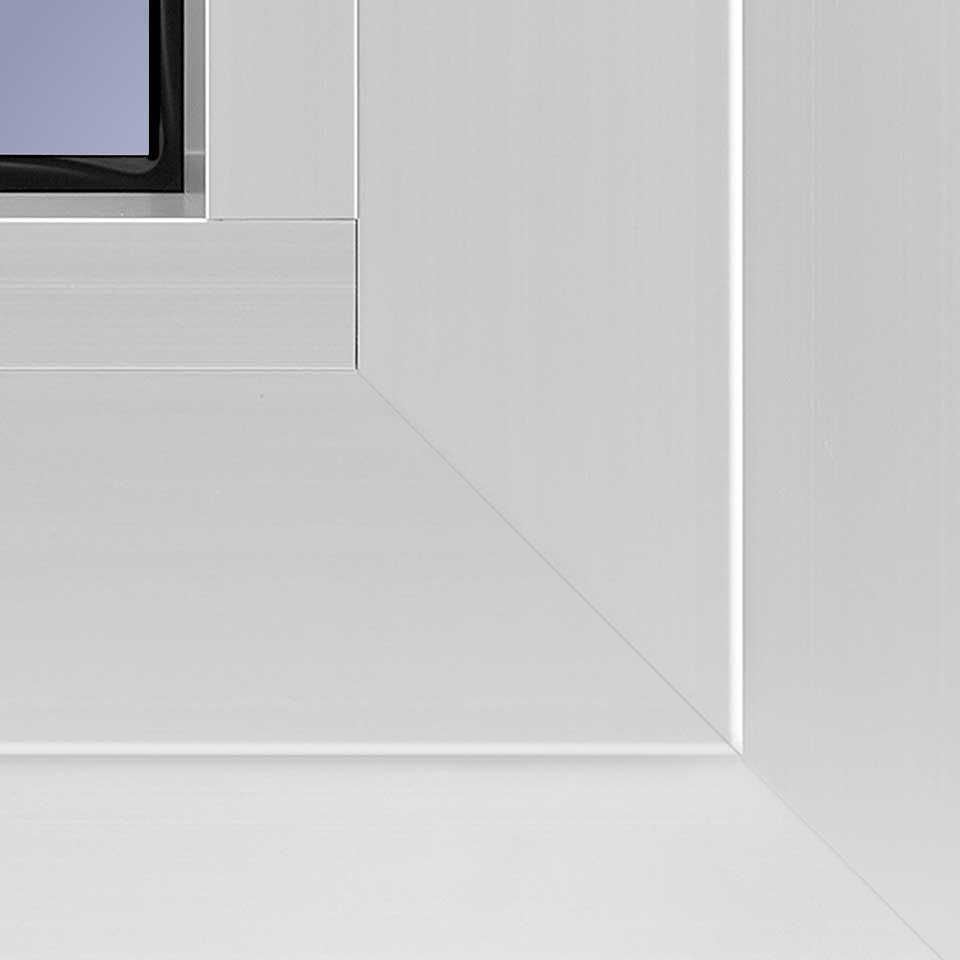

Completely hidden wings behind the frame
SI – dedicated insulating inserts in the thermal break zone
Frame depth – 70 mm
Leaf depth – 79 mm

Colour

Color versions of profiles used in the production of Optimum 79N US windows are created using one of two processes – powder coating or sublimation. The first one guarantees a smooth coating – without imperfections such as streaks or wrinkles – in various RAL shades. The second one allows you to create aluminum structures in wood-like colors. The variety of available options allows you to give your joinery a unique character.

Hits! RAL Decor
