A simple topic

The section of the FORMA window available in the MS beyond WINDOWS offer.

FORMA windows

FORMA windows are a return to simple geometry and rediscovering the strength of the form of windows. Constructions made of Deceuninck profiles are available in many colour versions. Thanks to the availability of numerous veneers, it is possible to obtain a metallic or wood-effect shade.

Profiles with simple geometry are an ideal base for creating all kinds of constructions – both typical and nonstandard shapes. The permissible dimensions for white structures are as follows: 4 m wide and 2.6 m high (maximum area: 7.5 m²). In the photo you can see the triangular fixed glazings.

Profiles with simple geometry are an ideal base for creating all kinds of constructions – both typical and nonstandard shapes. The permissible dimensions for white structures are as follows: 4 m wide and 2.6 m high (maximum area: 7.5 m²). In the photo you can see the triangular fixed glazings.

PURE FORM

perfect line

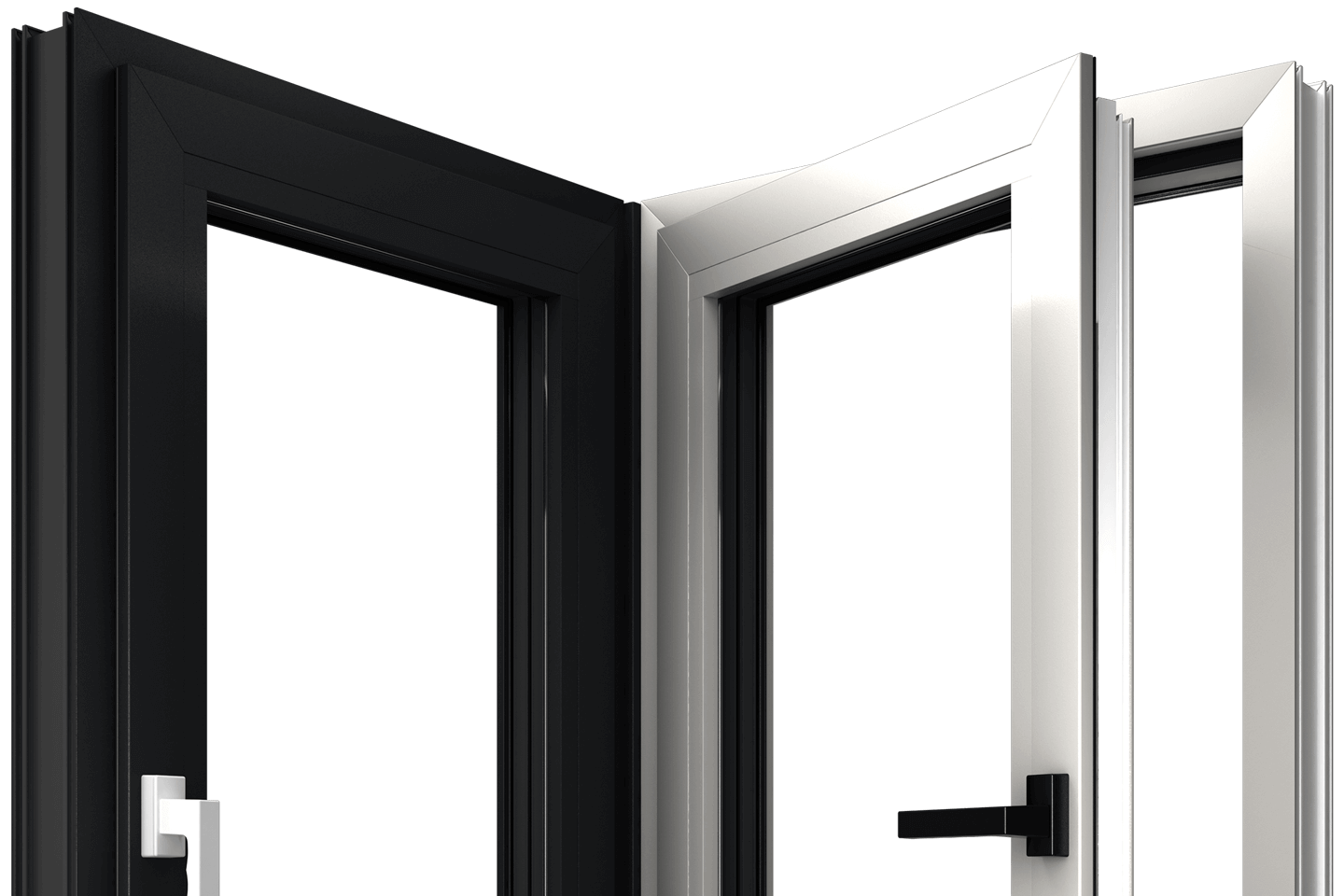

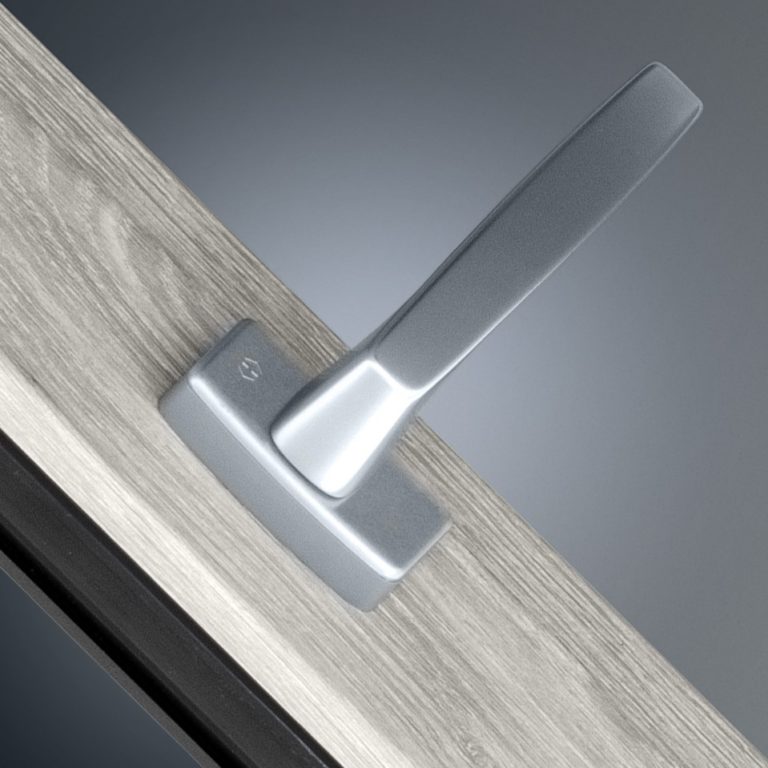

FORMA windows - dark with a white handle and bright with a black handle.

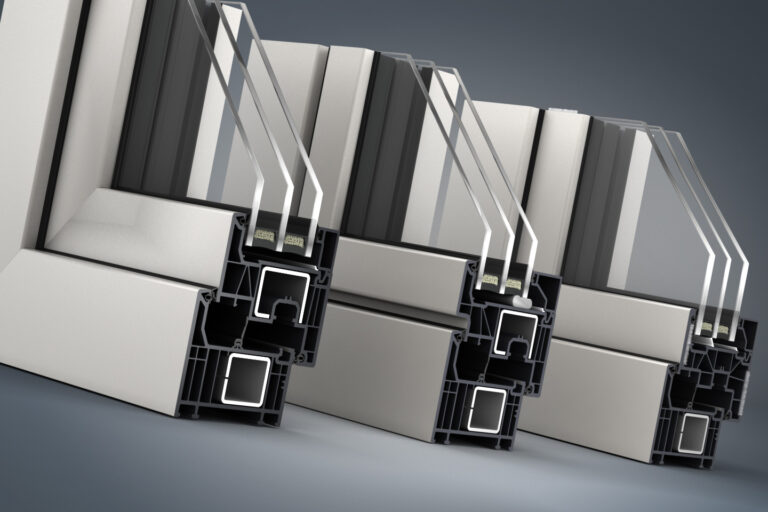

Cross-sections

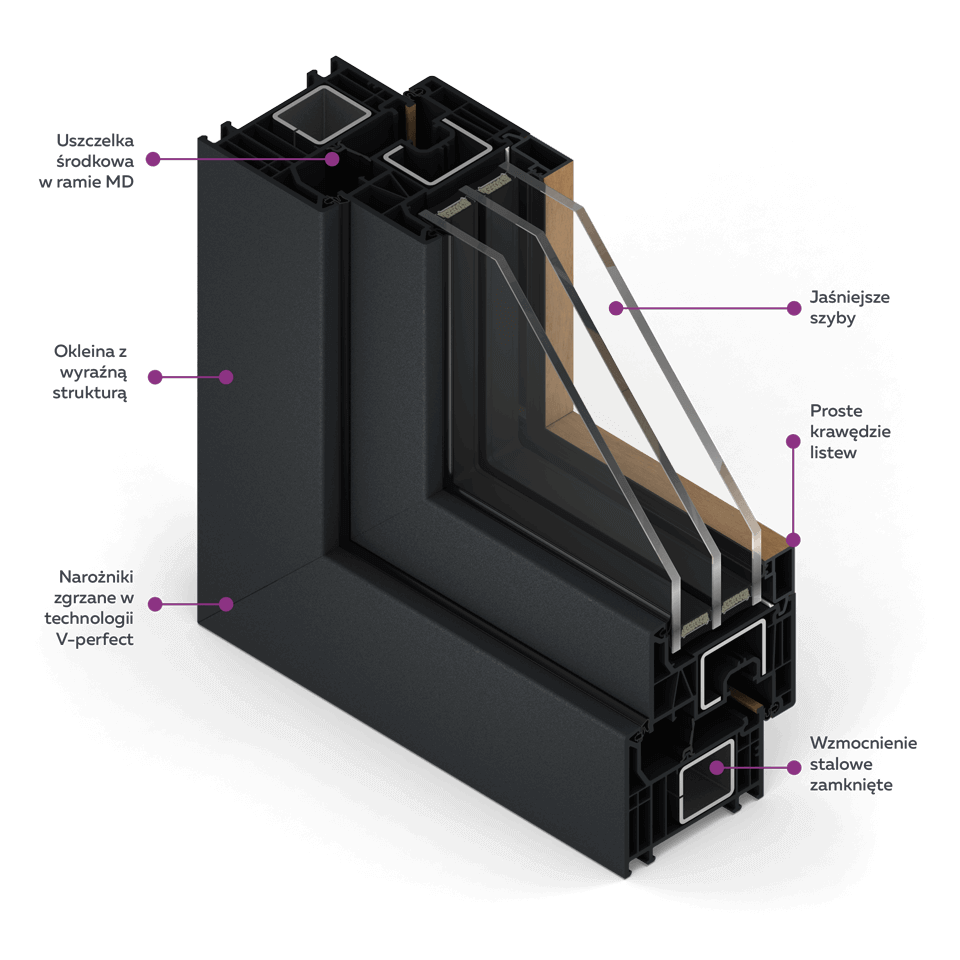

Section of FORMA window in dark veneer on the outside and wood-like veneer on the inside.
  1. Center seal in MD frame
  2. Veneer with a clear structure
  3. Corners welded using V-perfect technology
  4. Clearer windows
  5. Straight edges of the strips

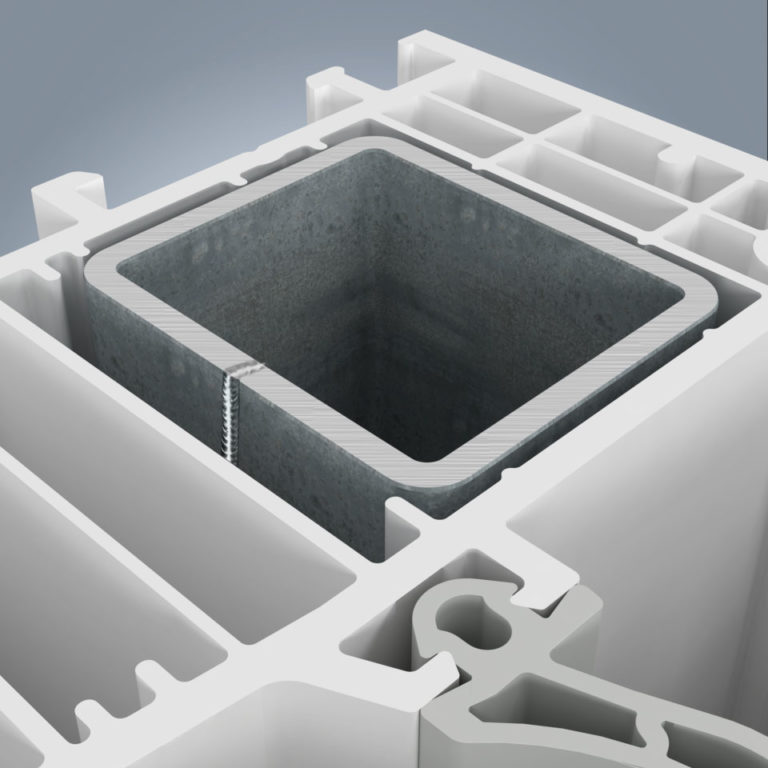

  6. Closed steel reinforcement
Section of FORMA window from the inside - visible veneer imitating wood.
  1. Frame depth 76 mm
  2. Leaf depth 80 mm
  3. Wood imitating veneer

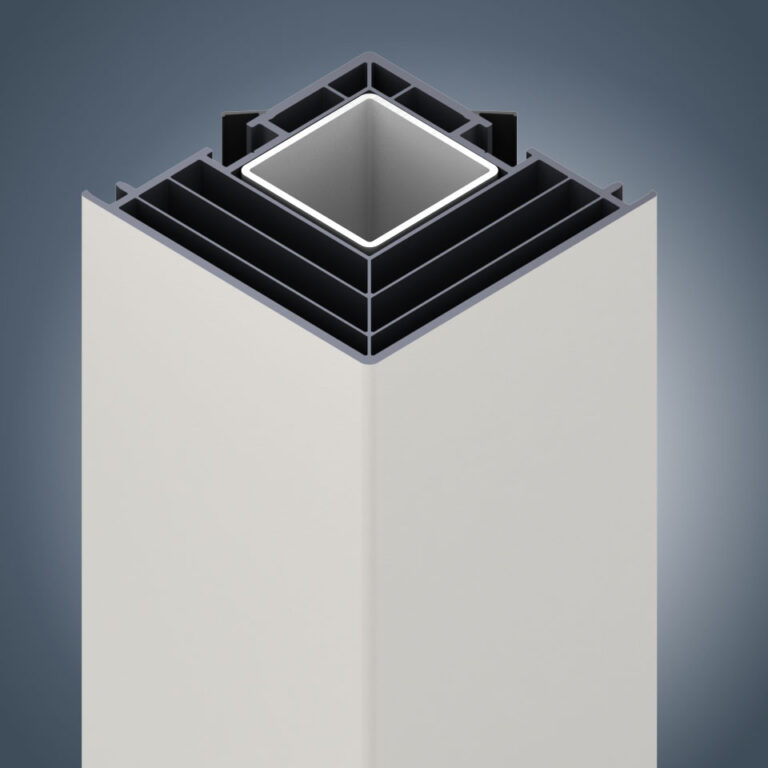

  4. Connecting the strips at a right angle
  5. Very narrow rebates

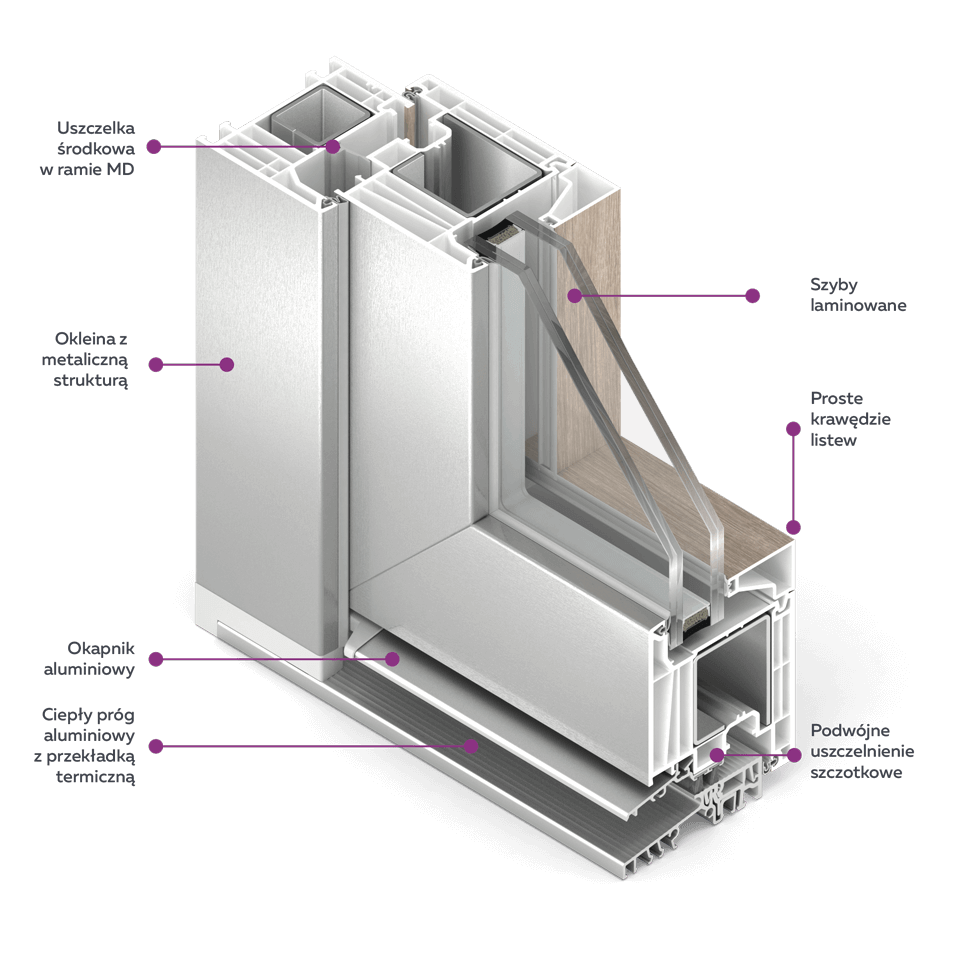

FORMA window section with a warm aluminium threshold.
  1. Center seal in MD frame
  2. Veneer with a metallic structure
  3. Aluminum drip cap
  4. Warm aluminum threshold with a thermal break
  5. Laminated glass
  6. Straight edges of the strips
  7. Double brush seal

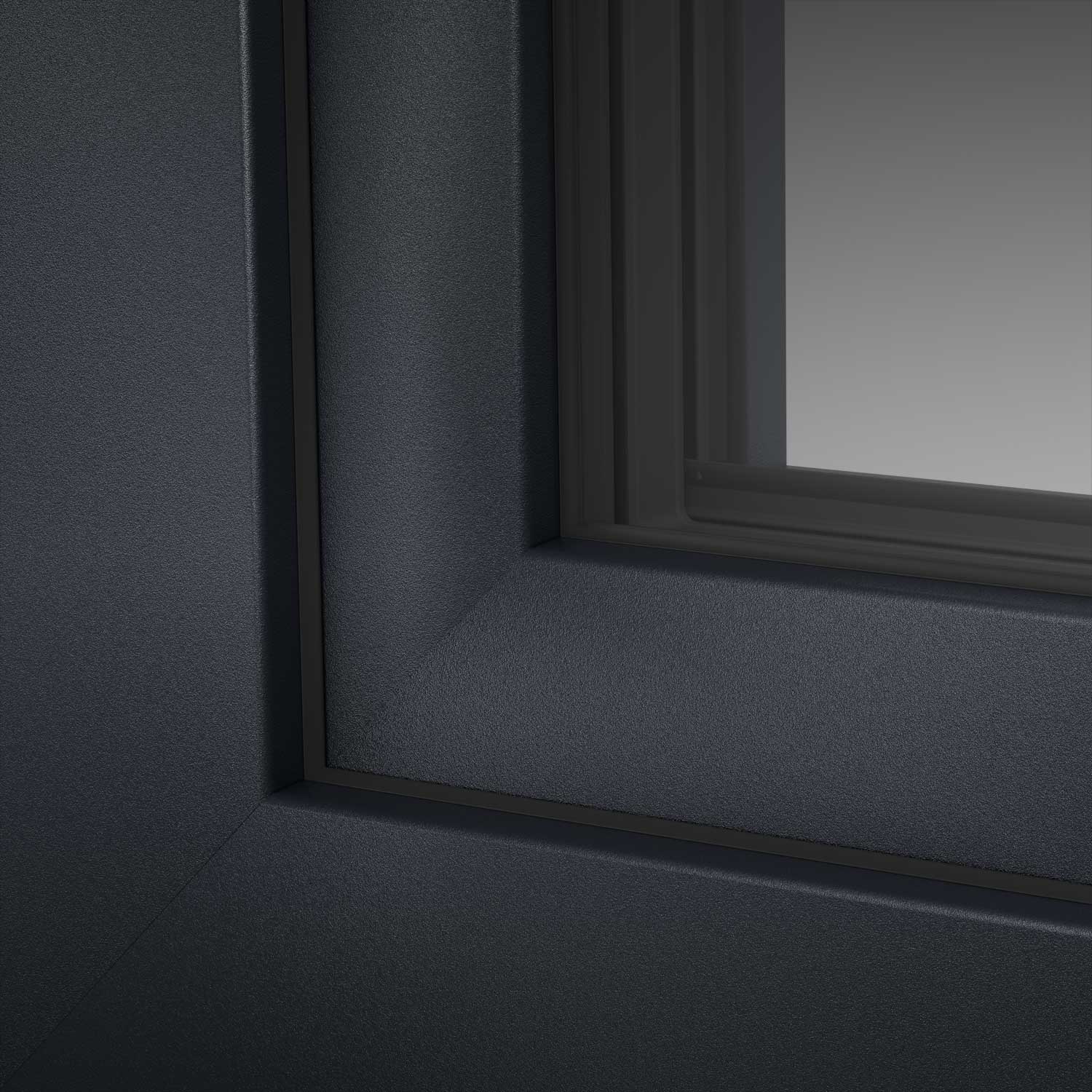

Colour

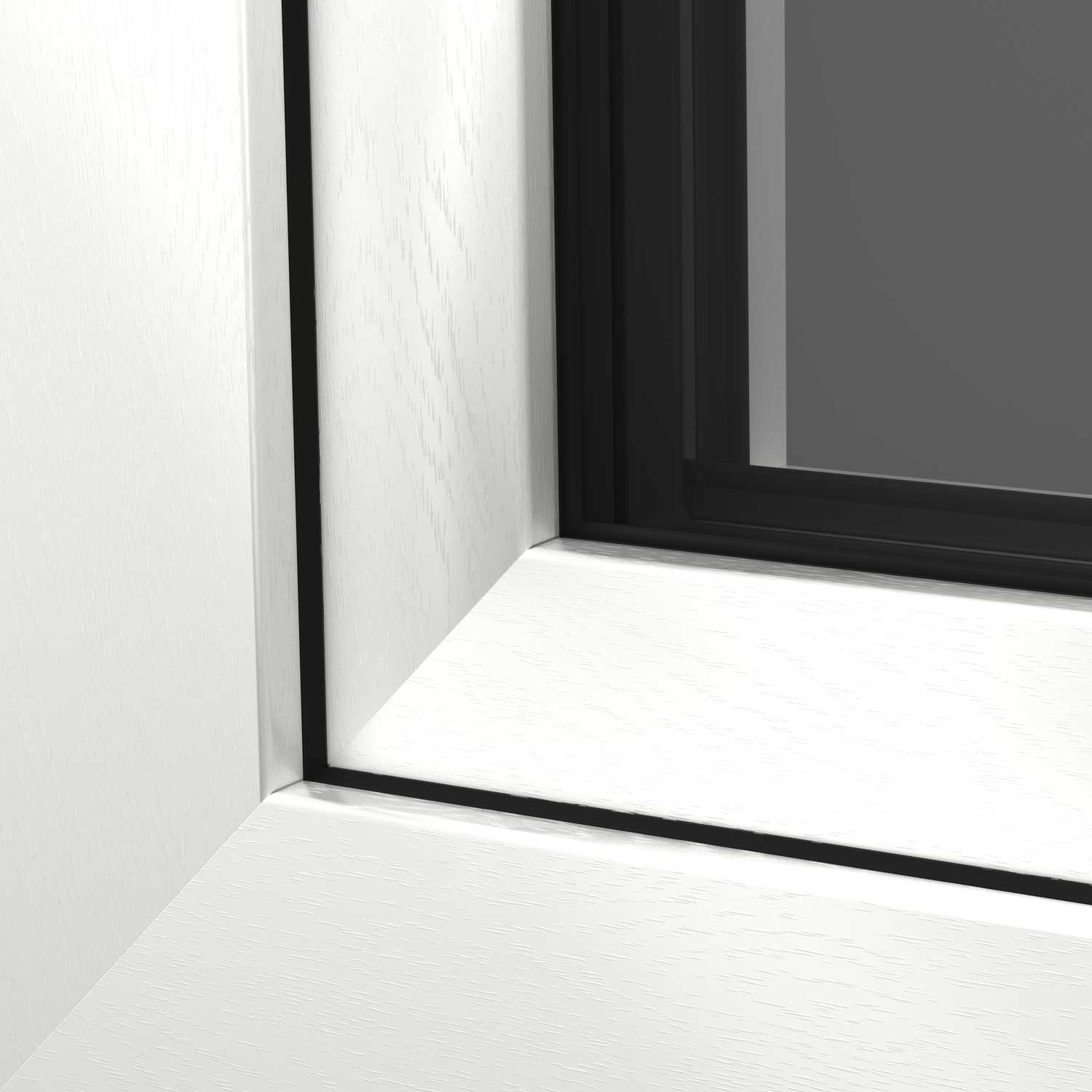

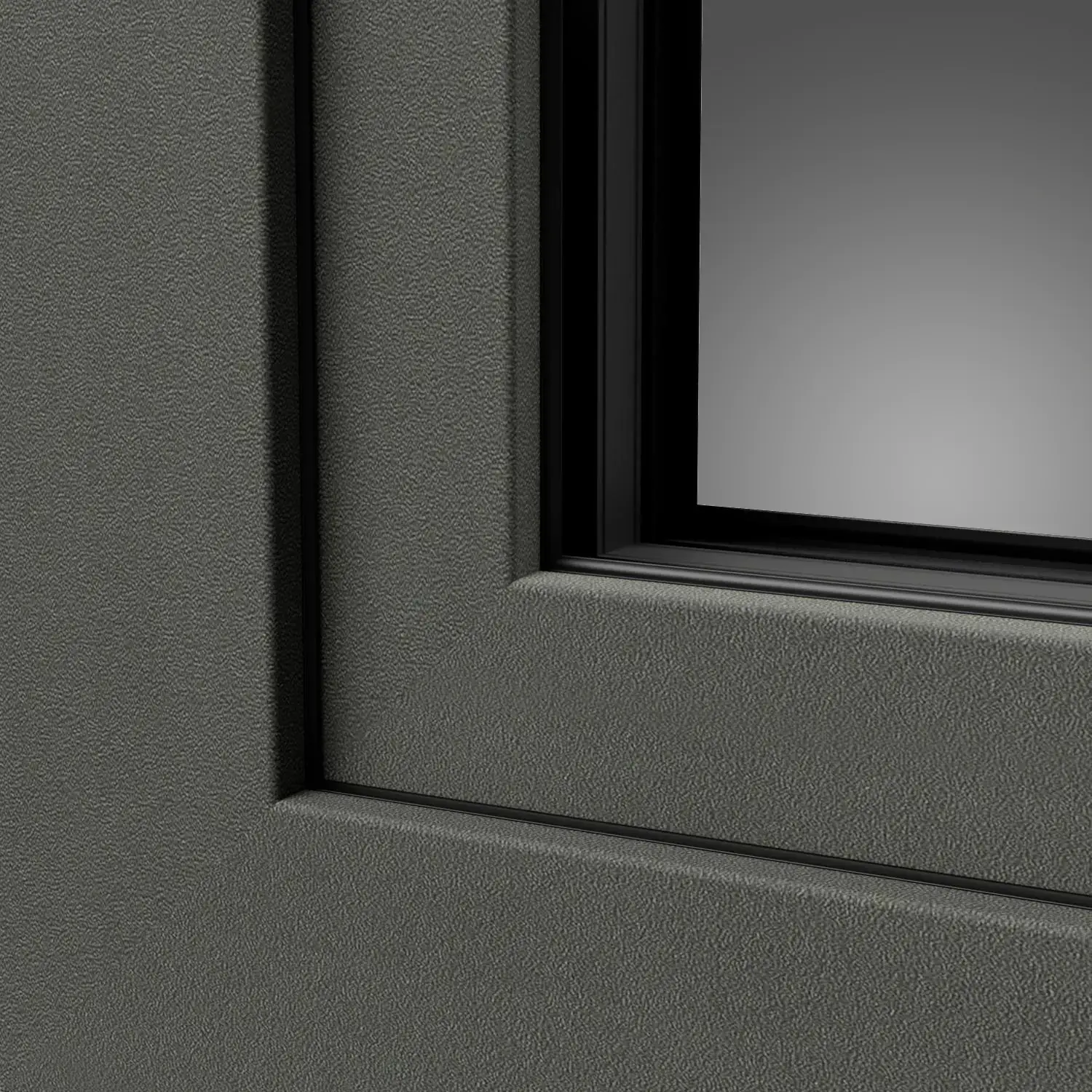

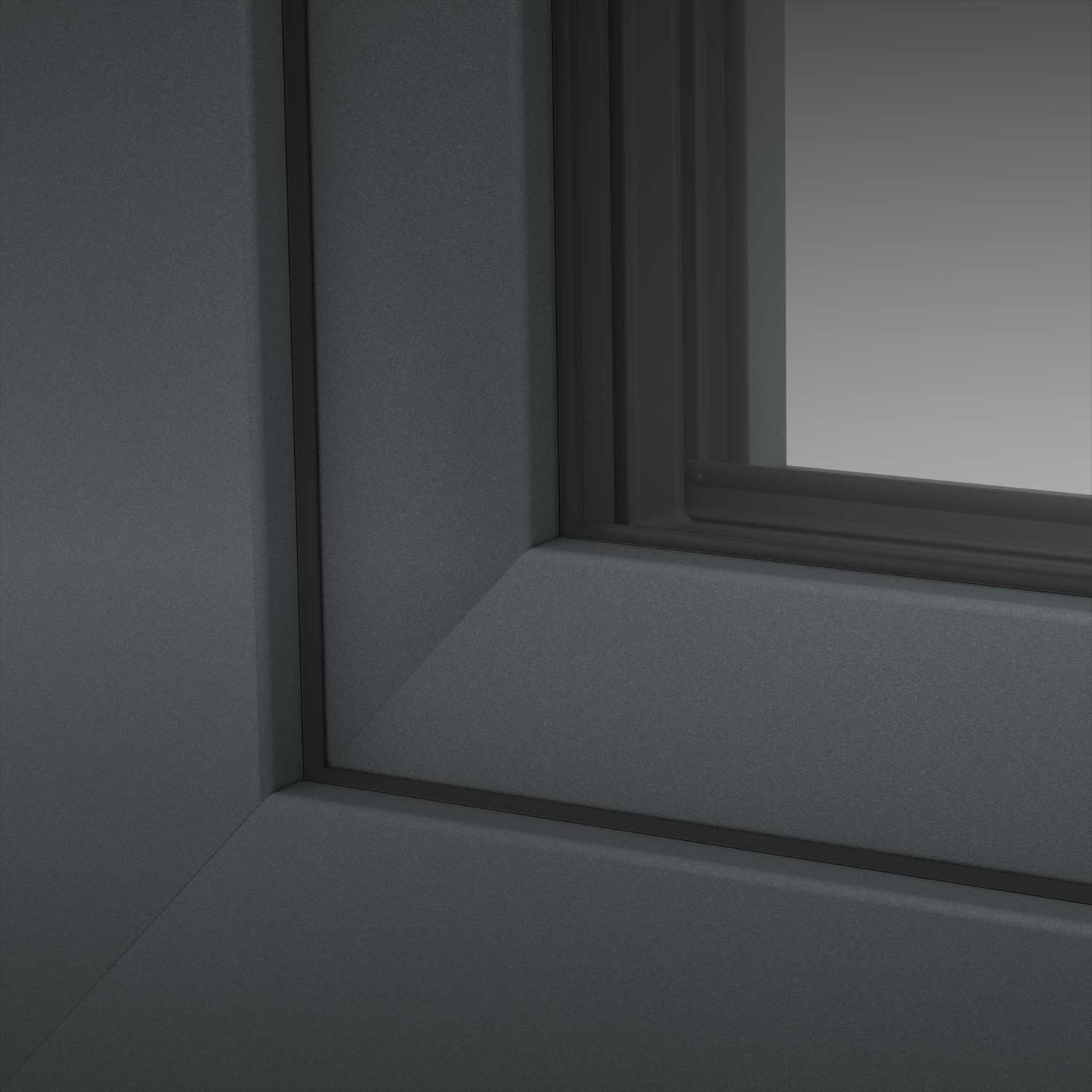

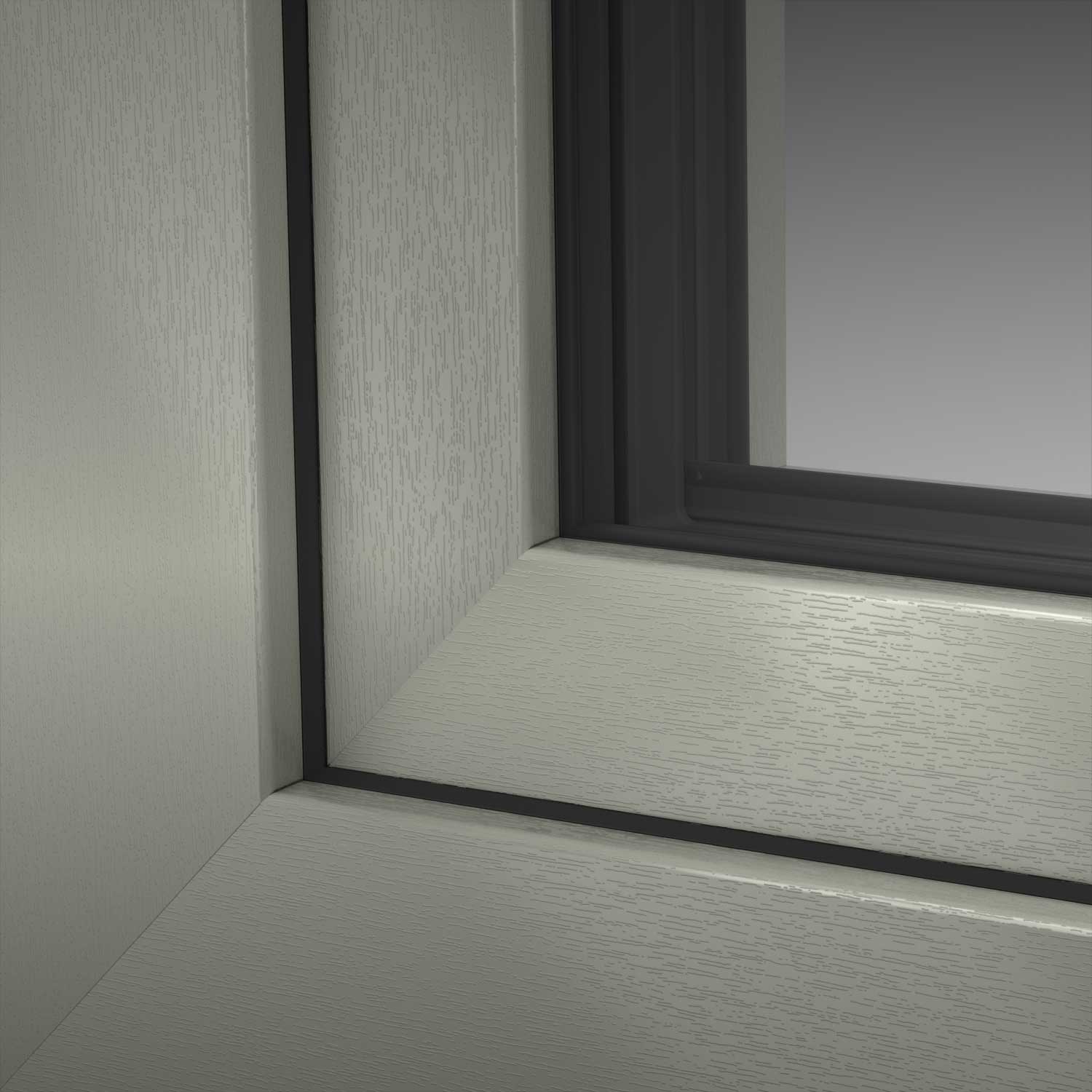

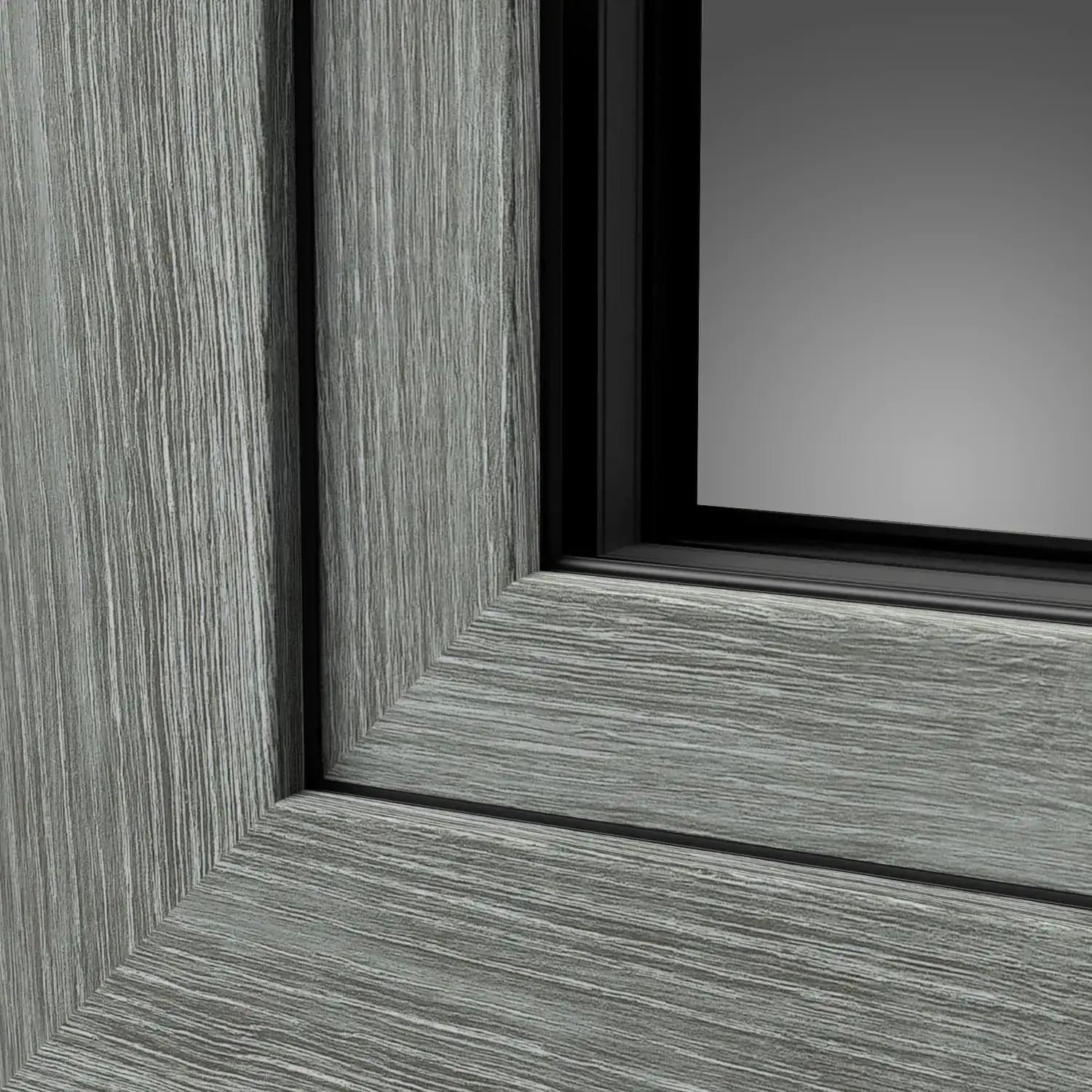

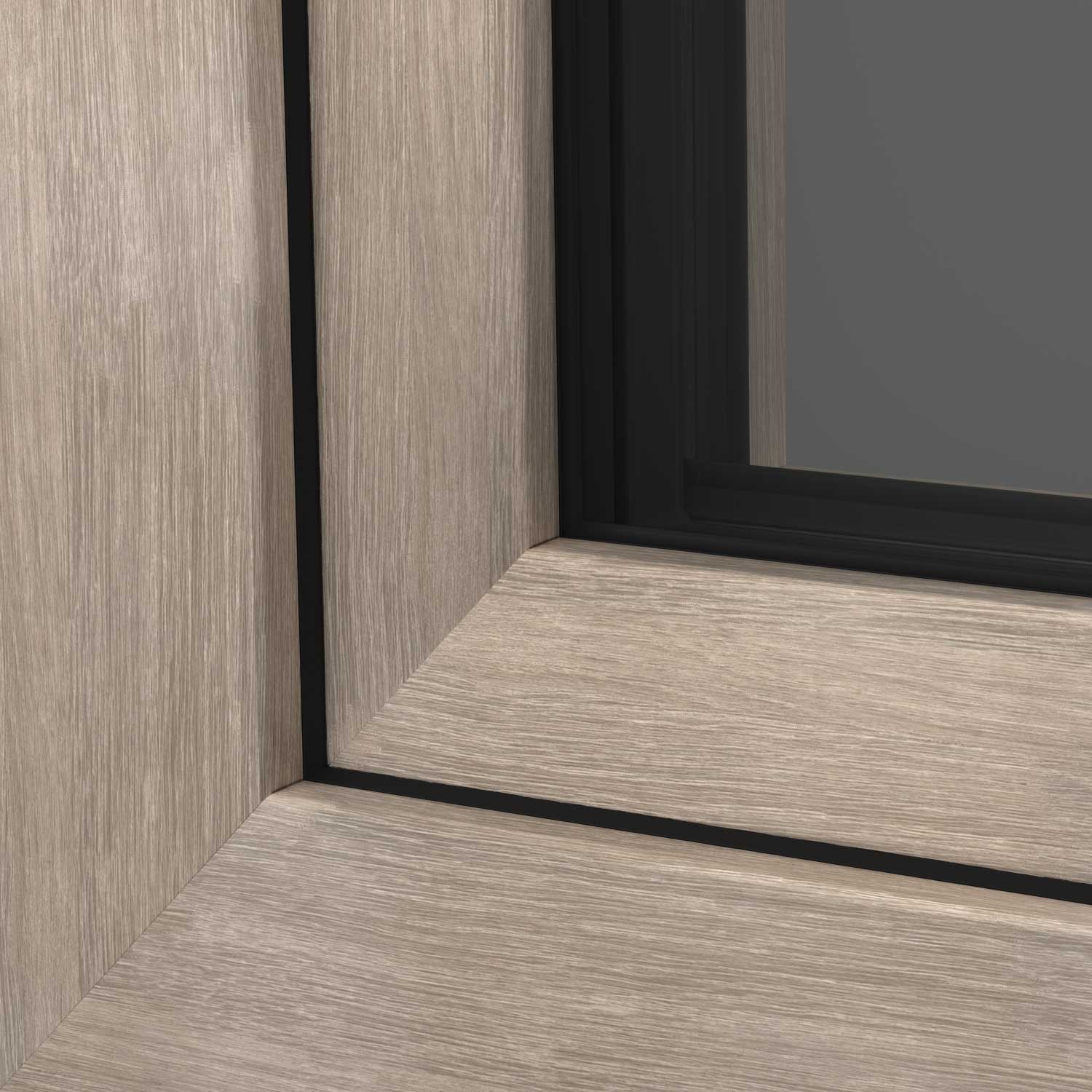

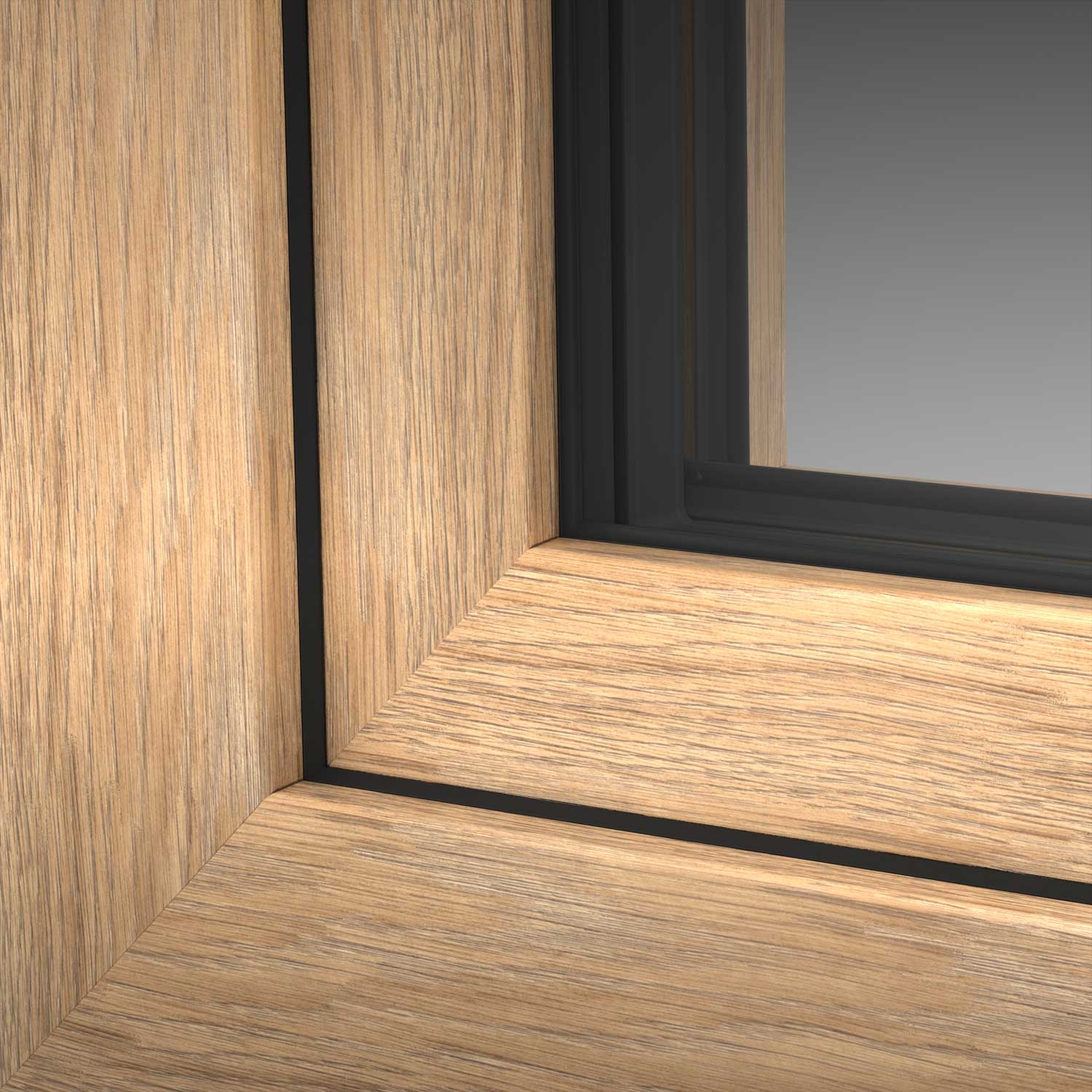

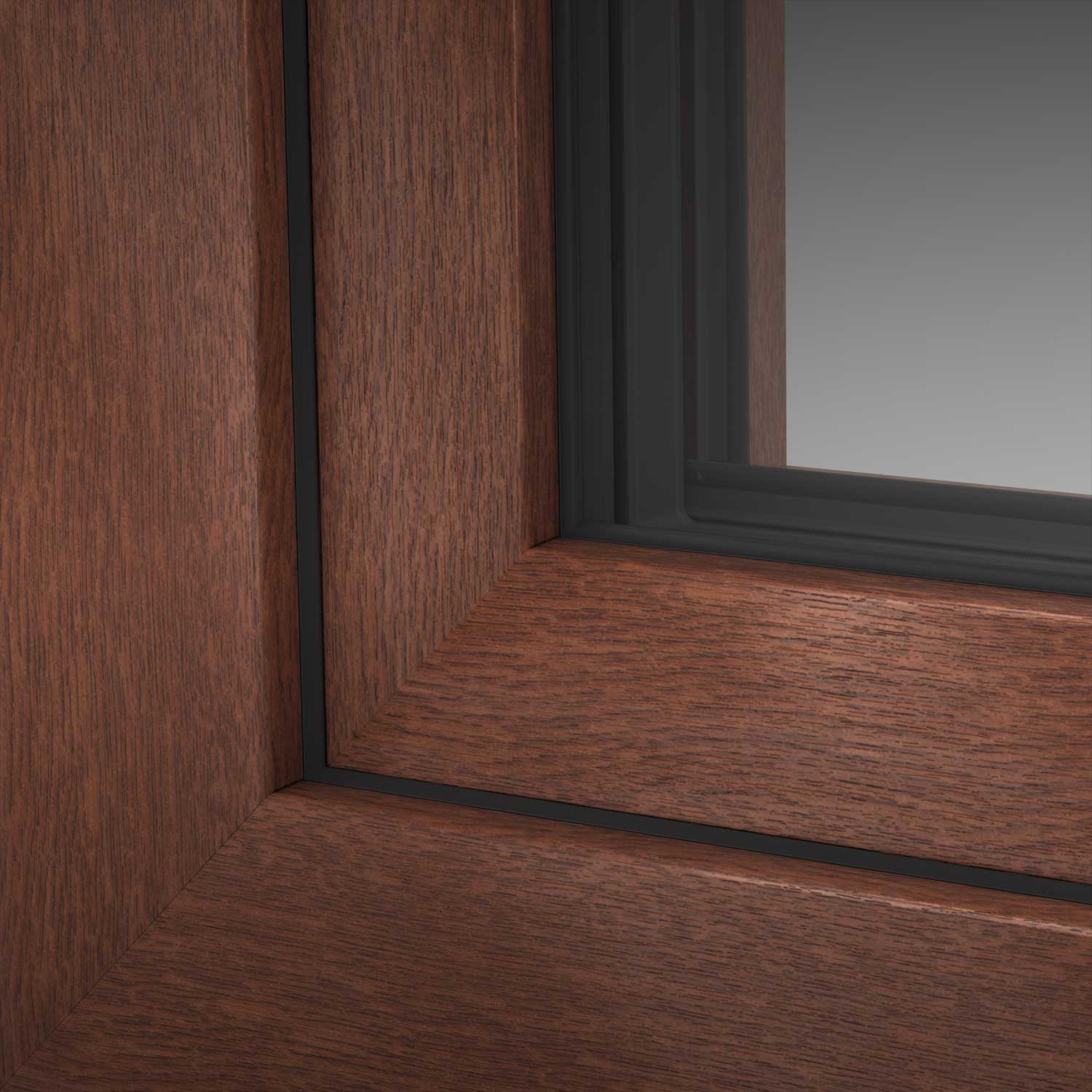

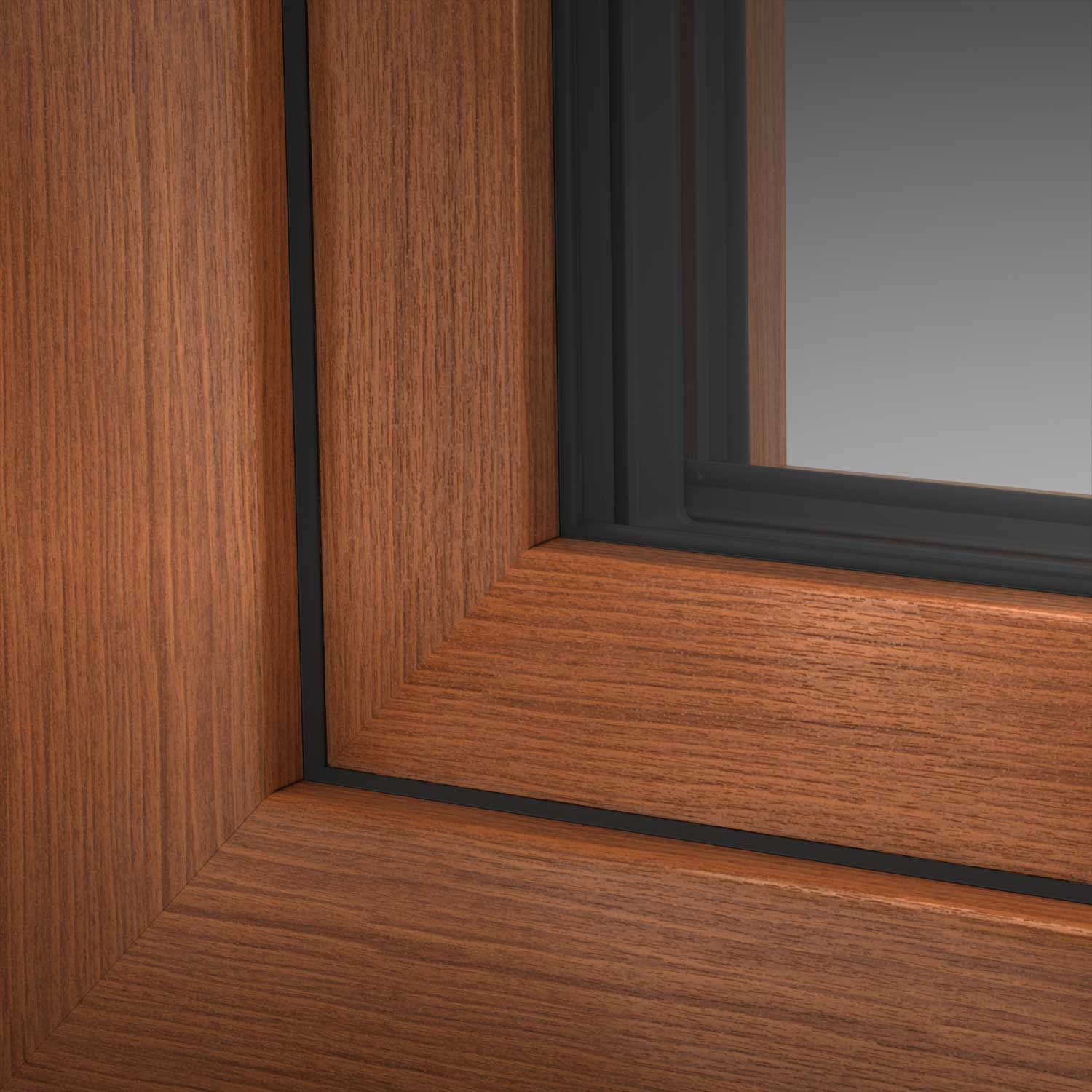

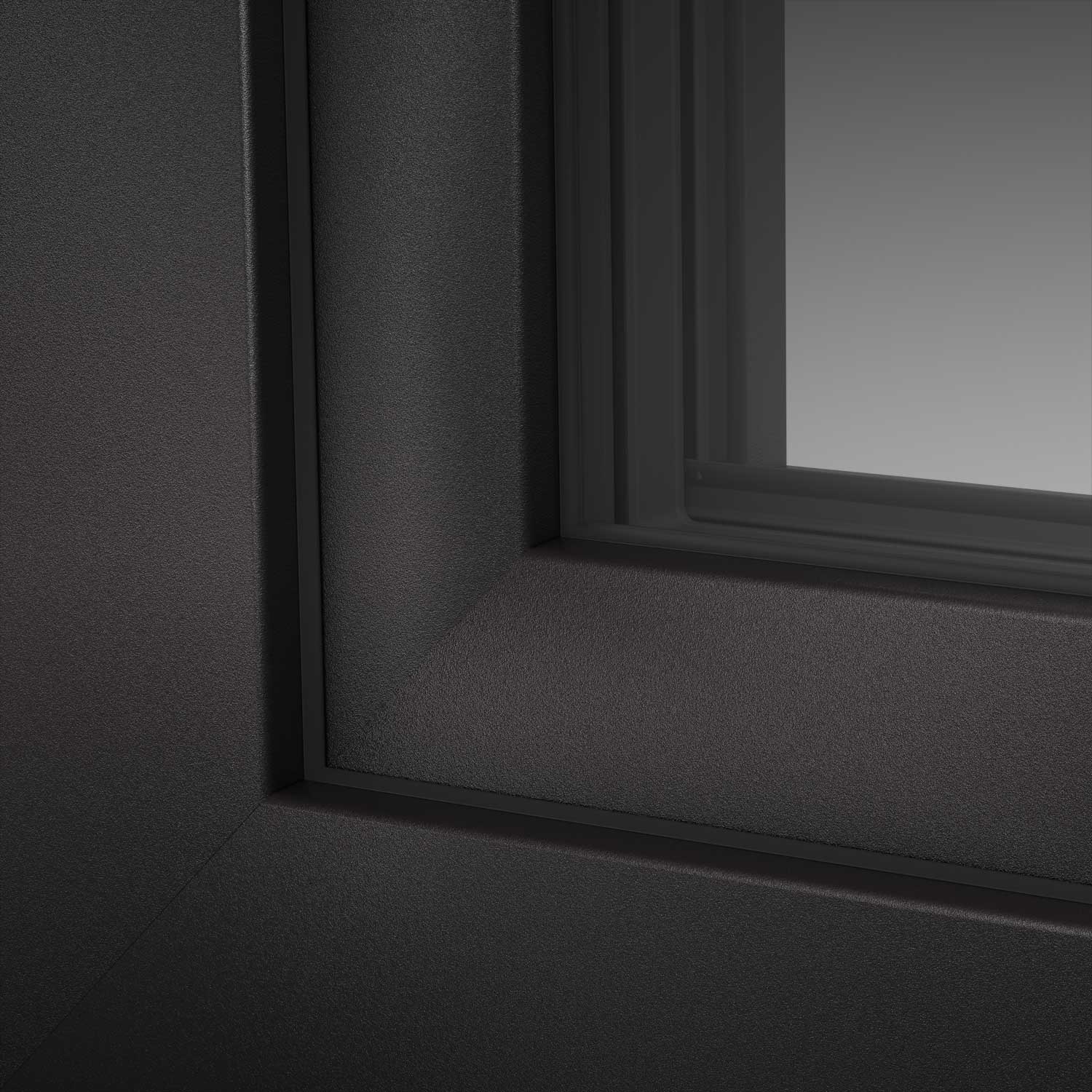

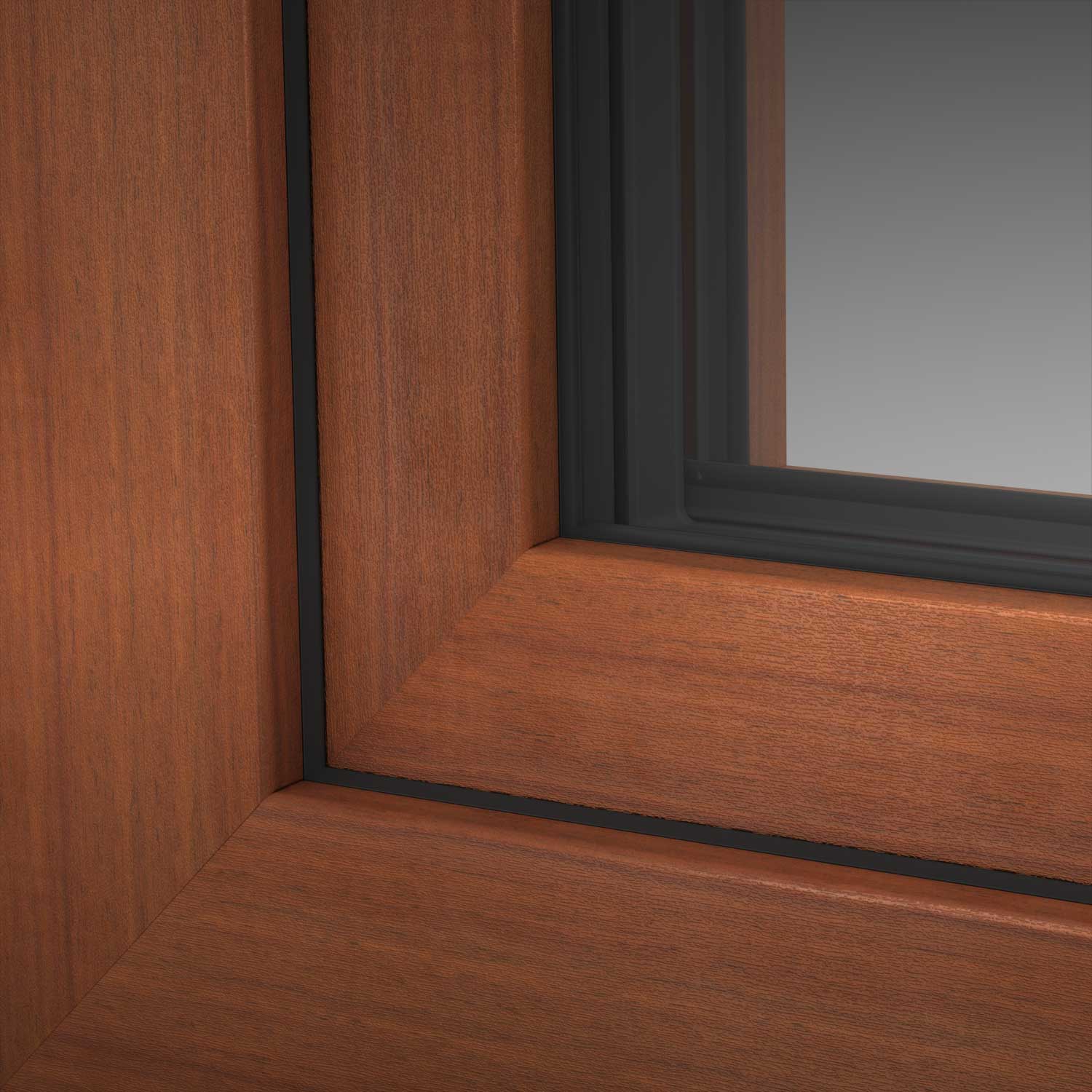

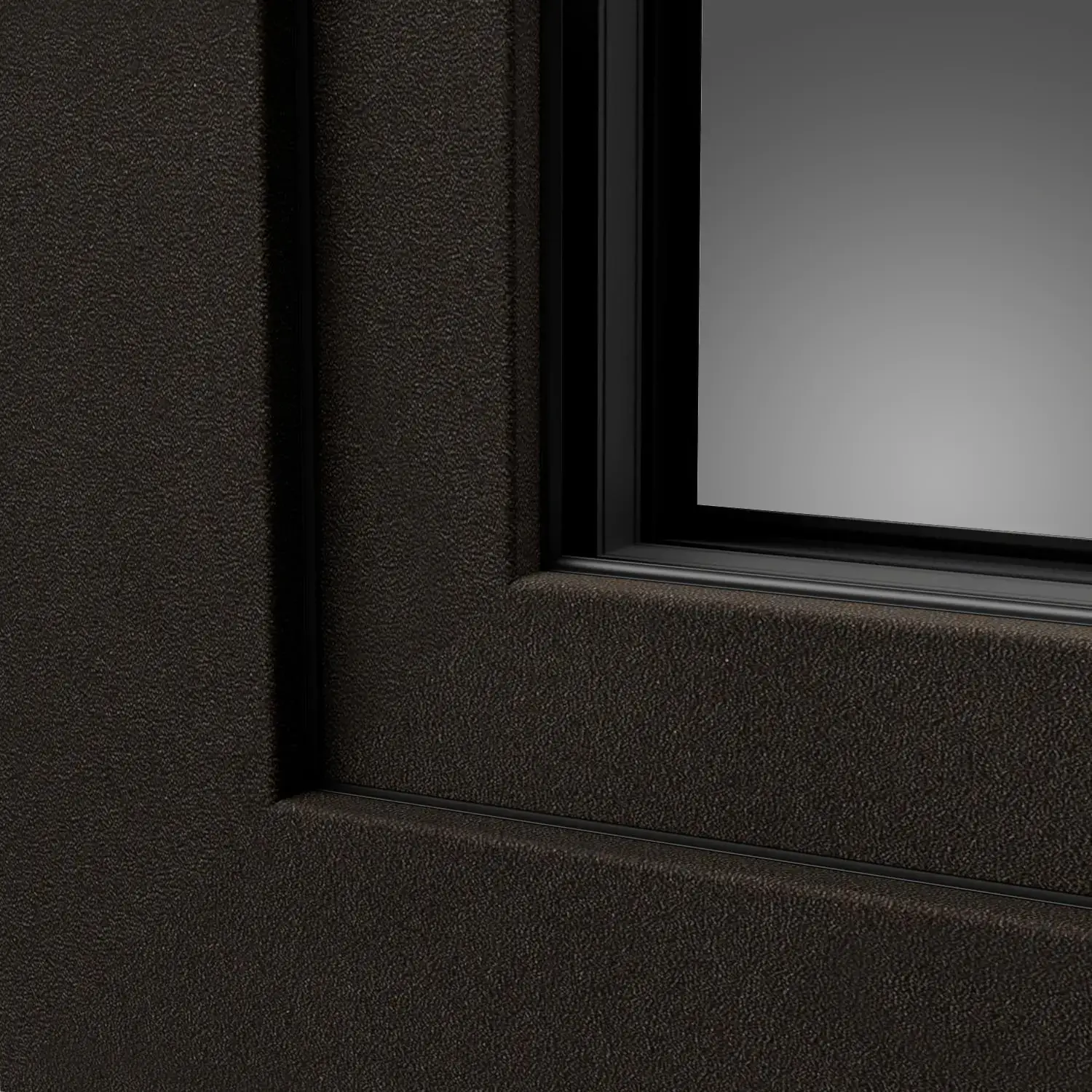

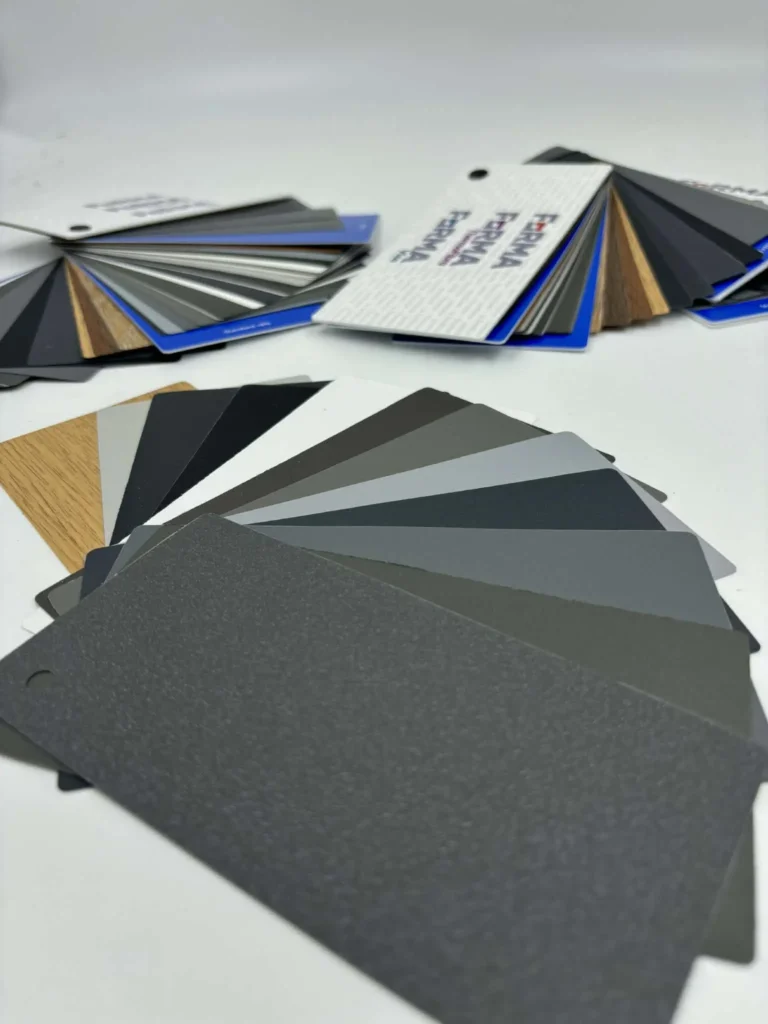

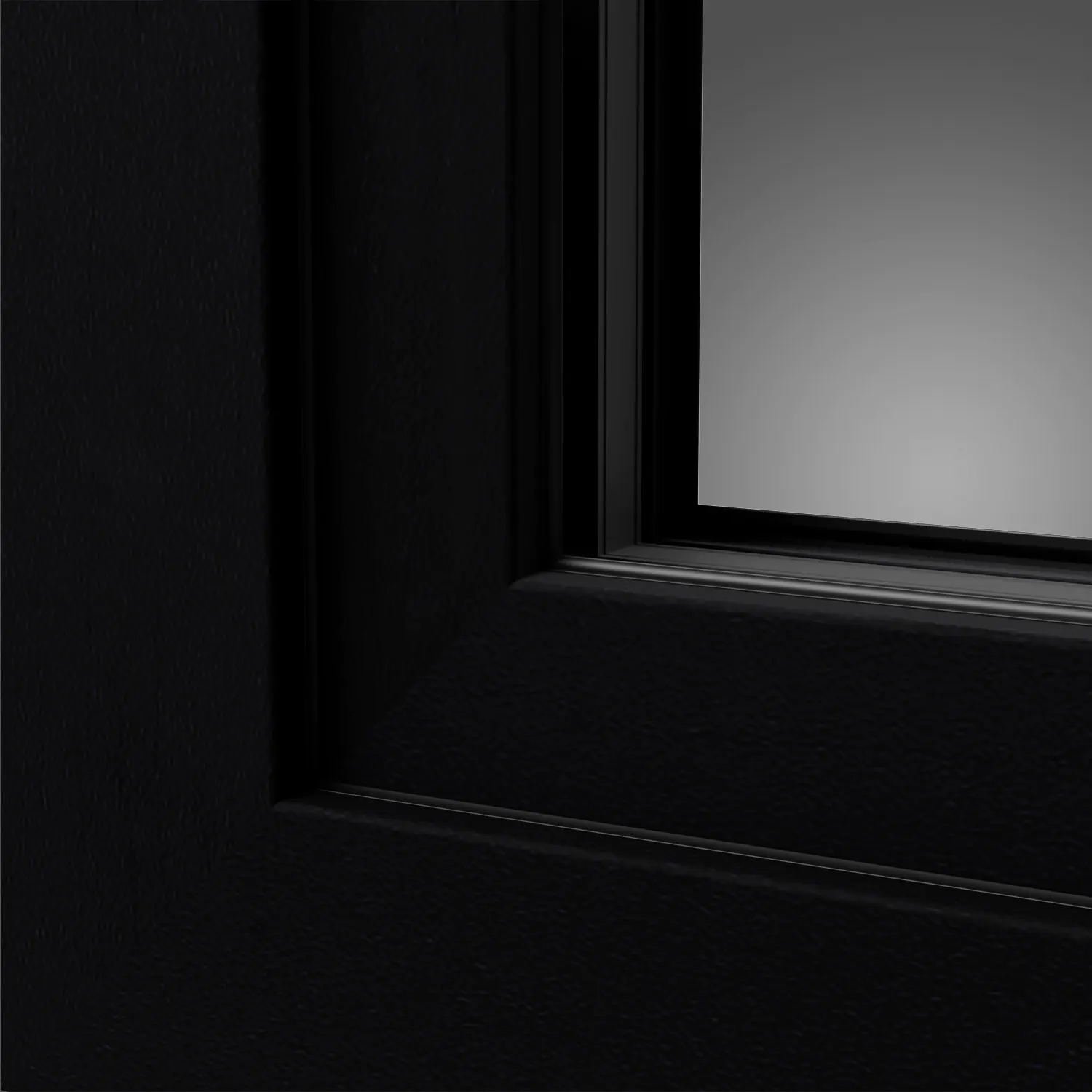

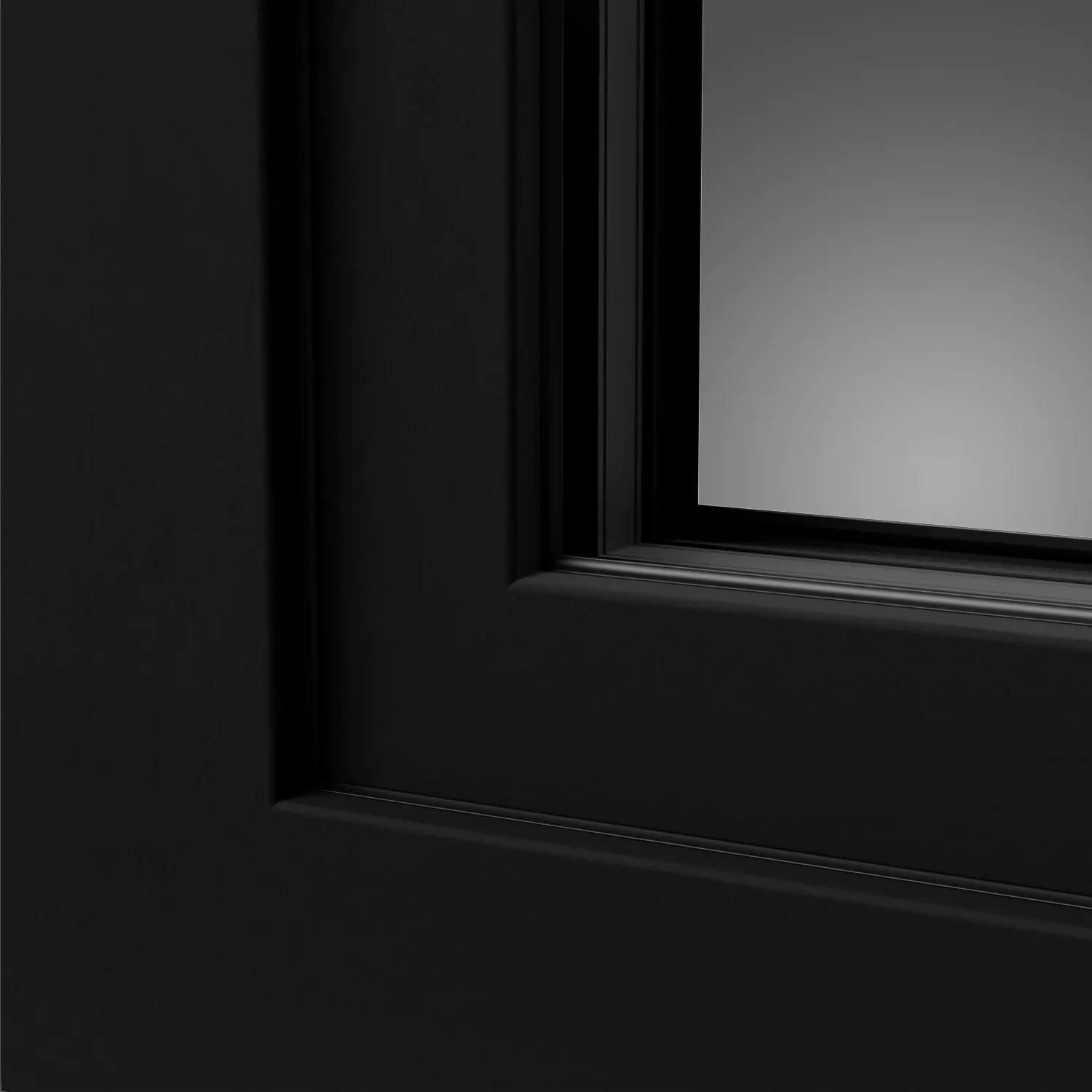

Windows constructed on the basis of the Deceuninck system can take any form. All thanks to simple geometry and an extensive colour range containing 50 types of veneers, divided into four groups: natural wood, coloured wood, satins and metallics.

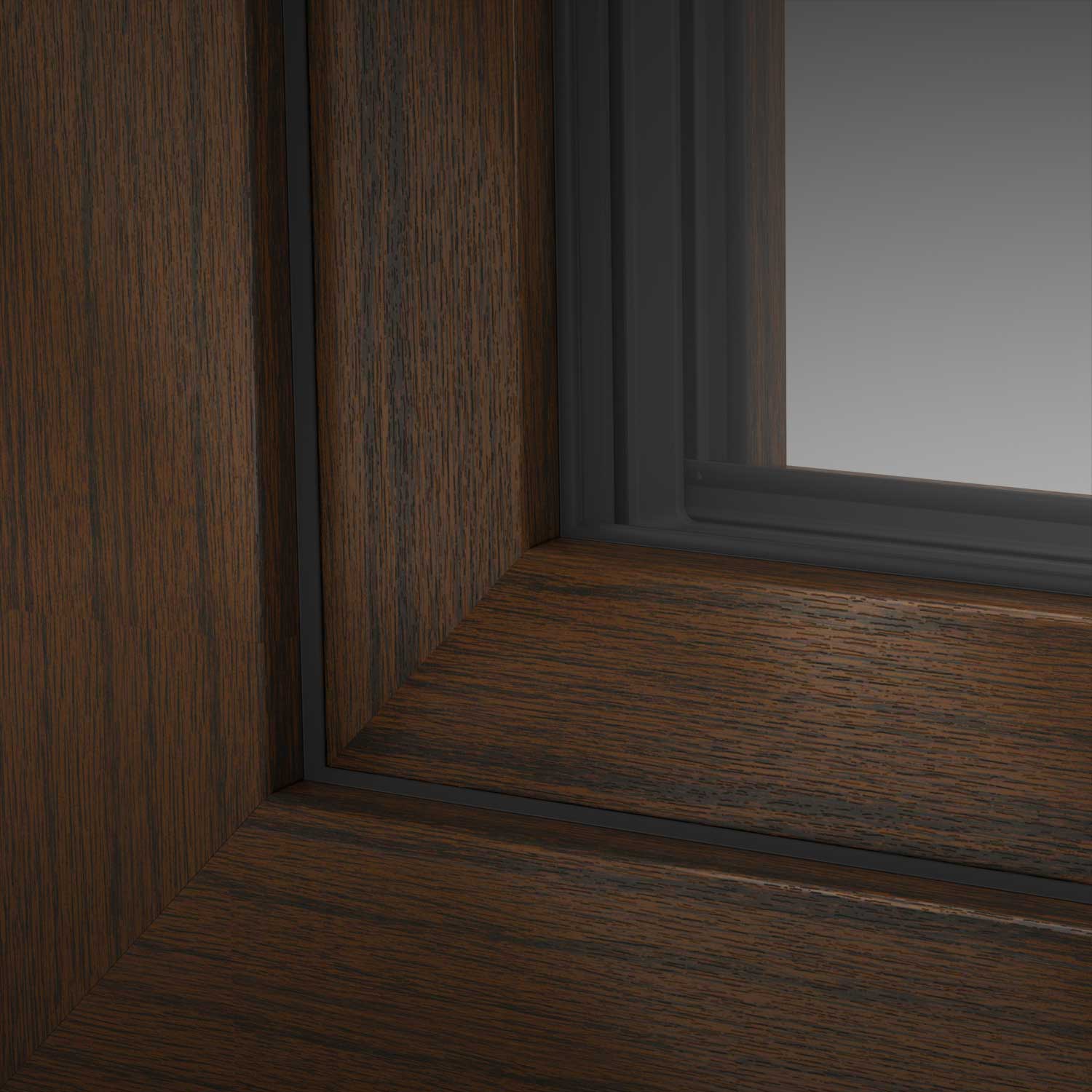

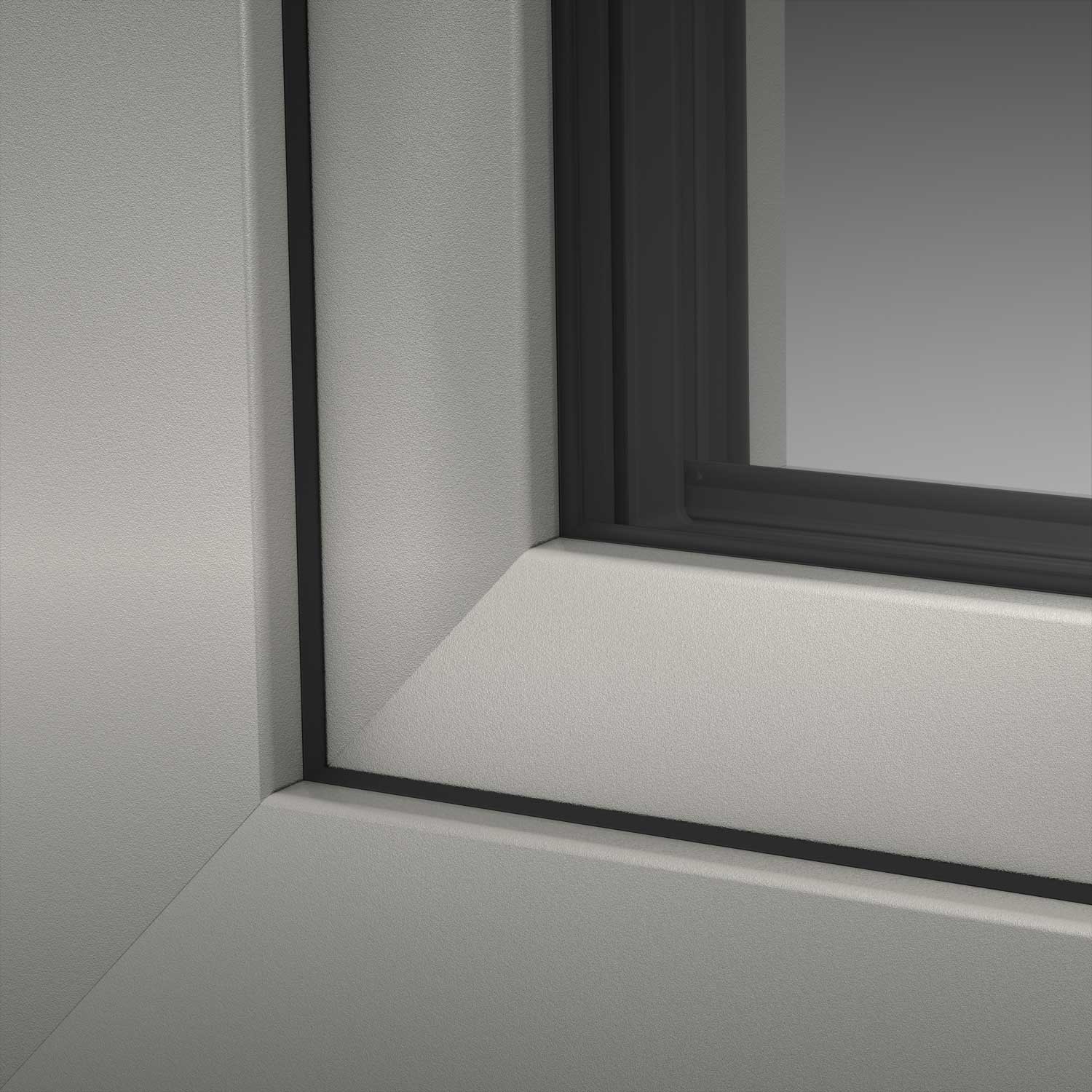

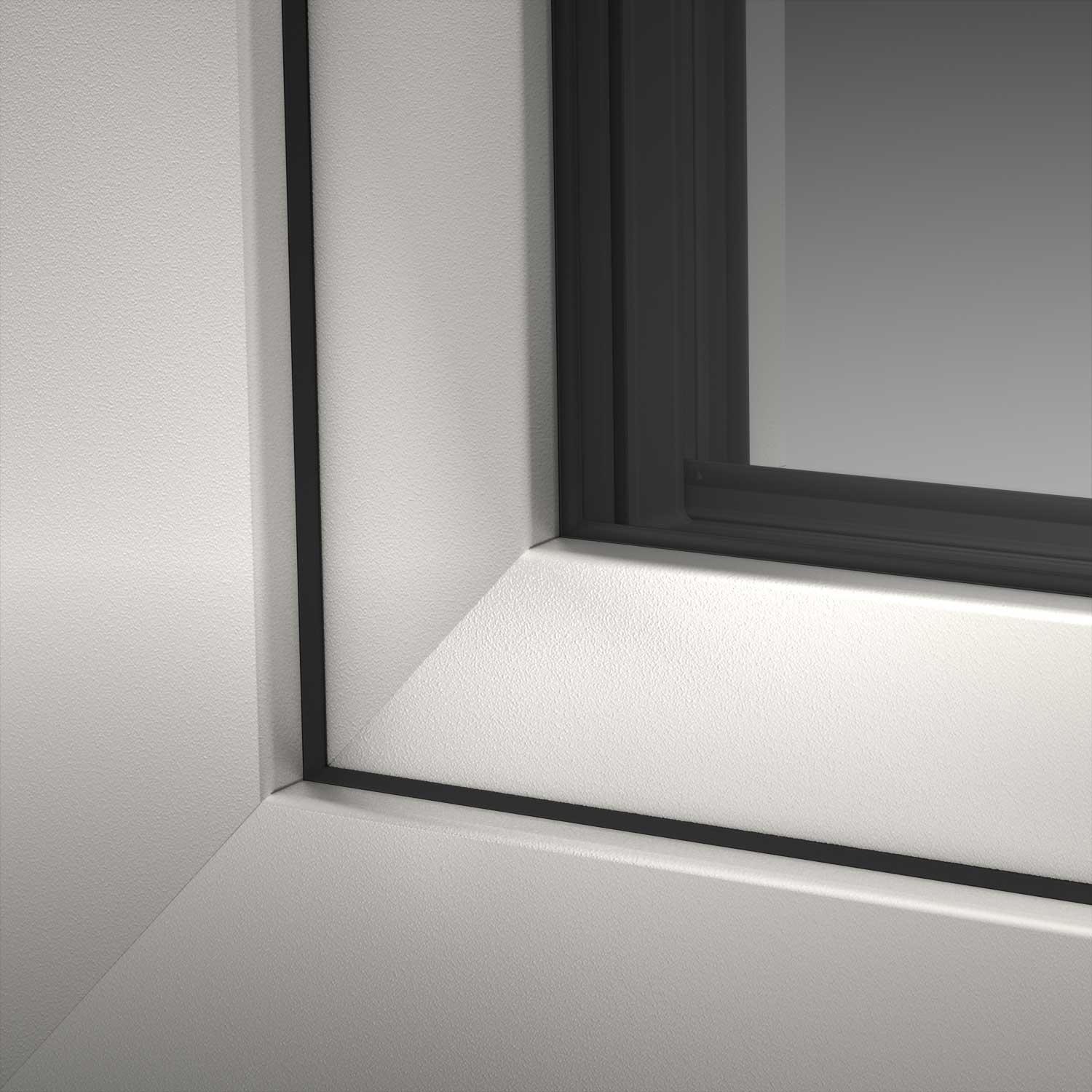

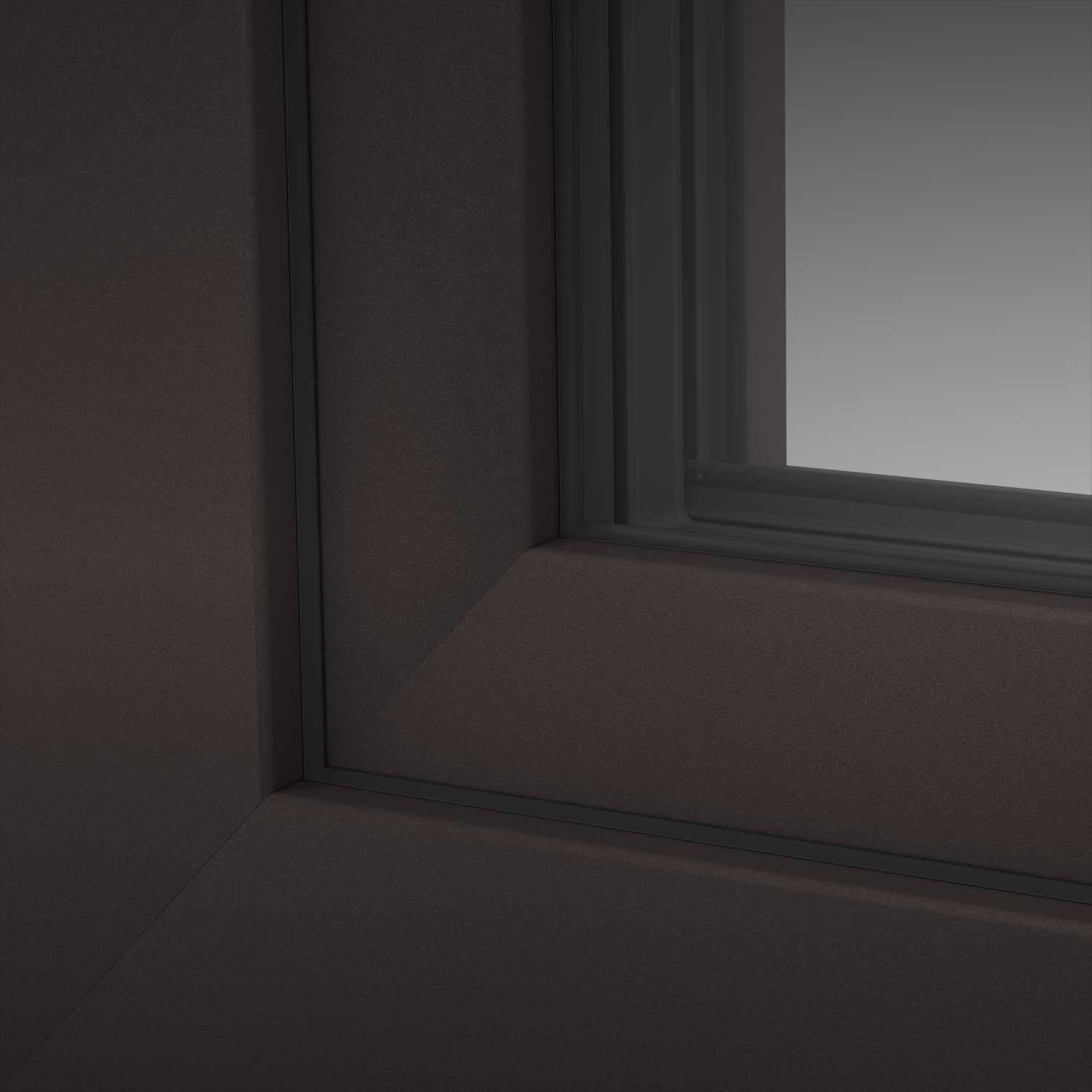

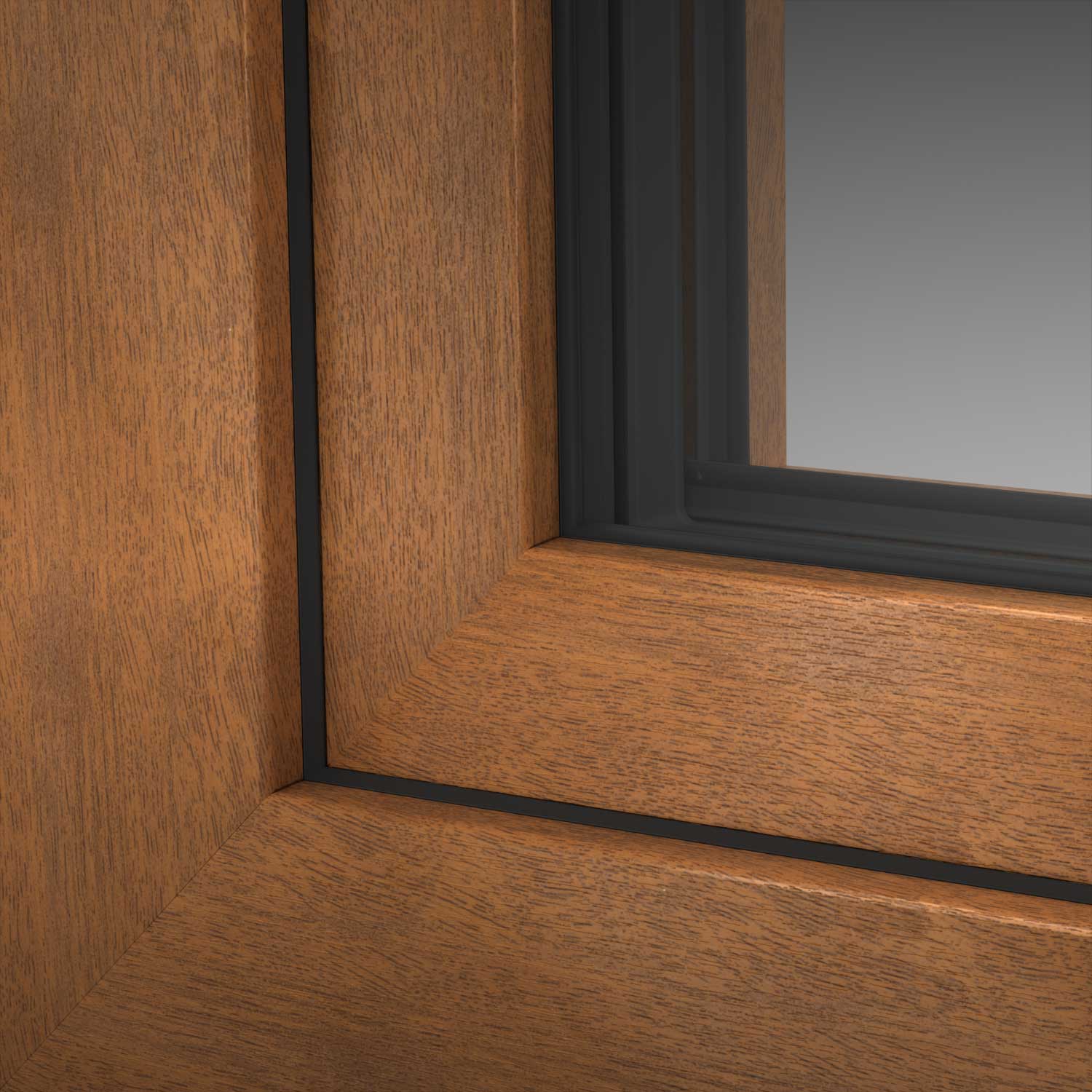

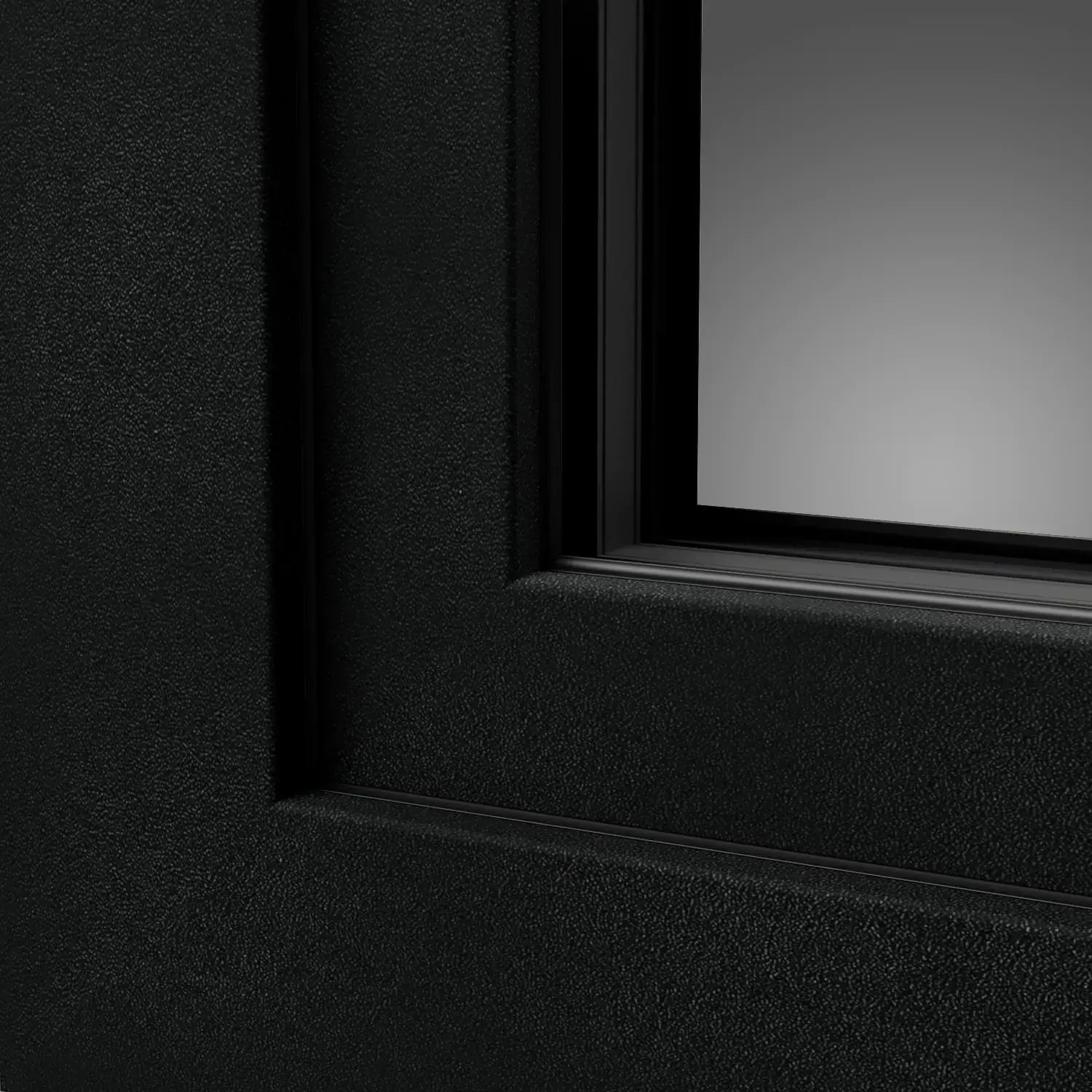

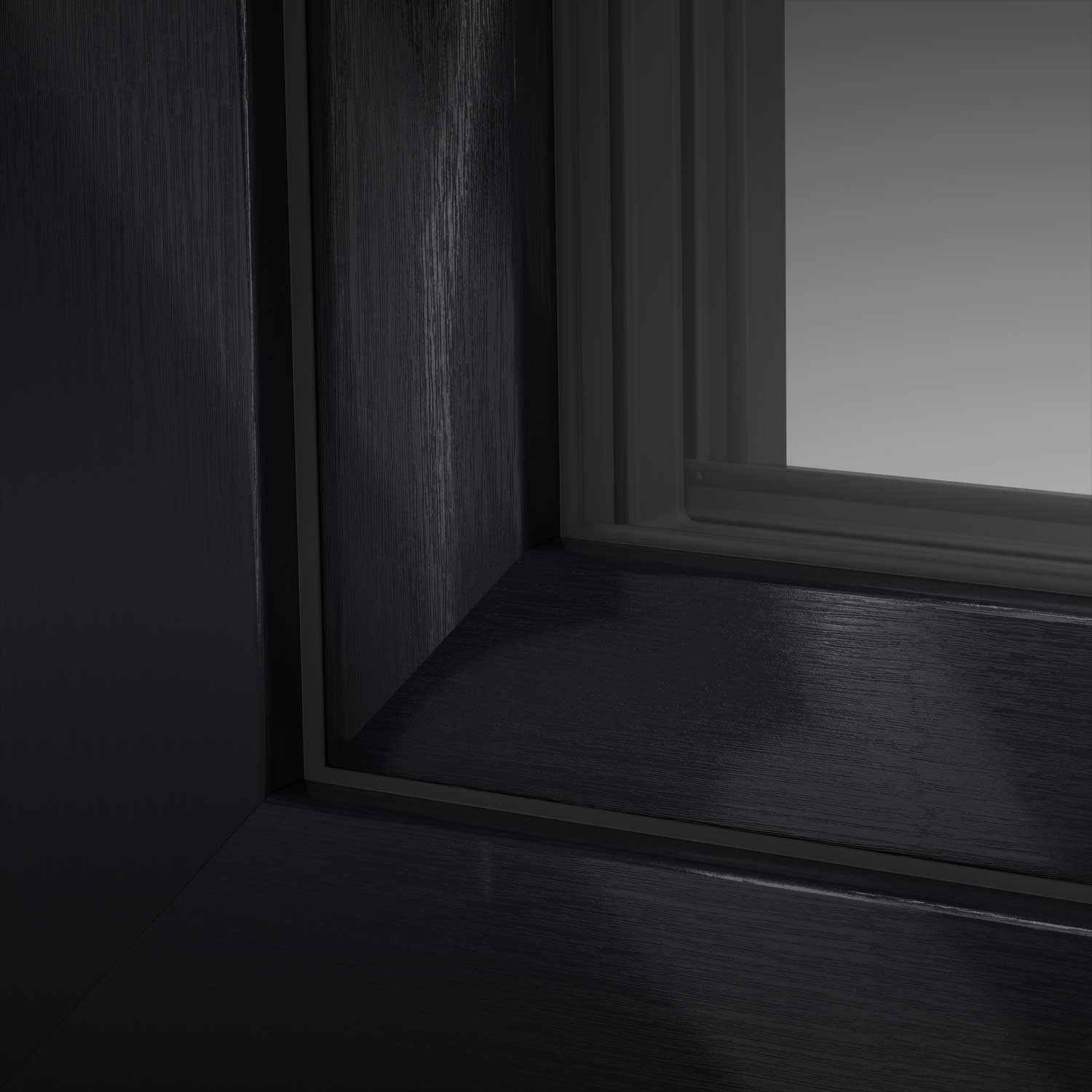

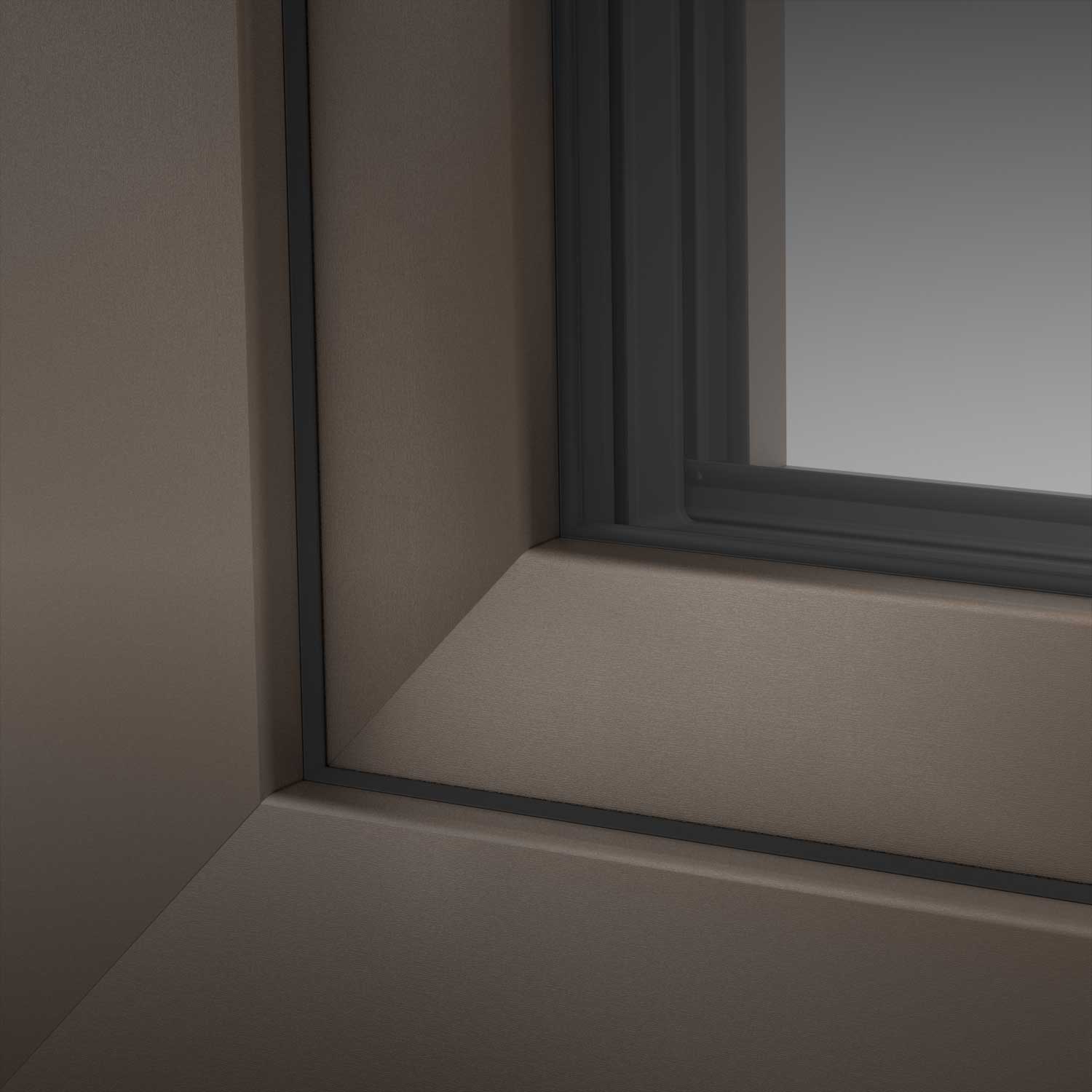

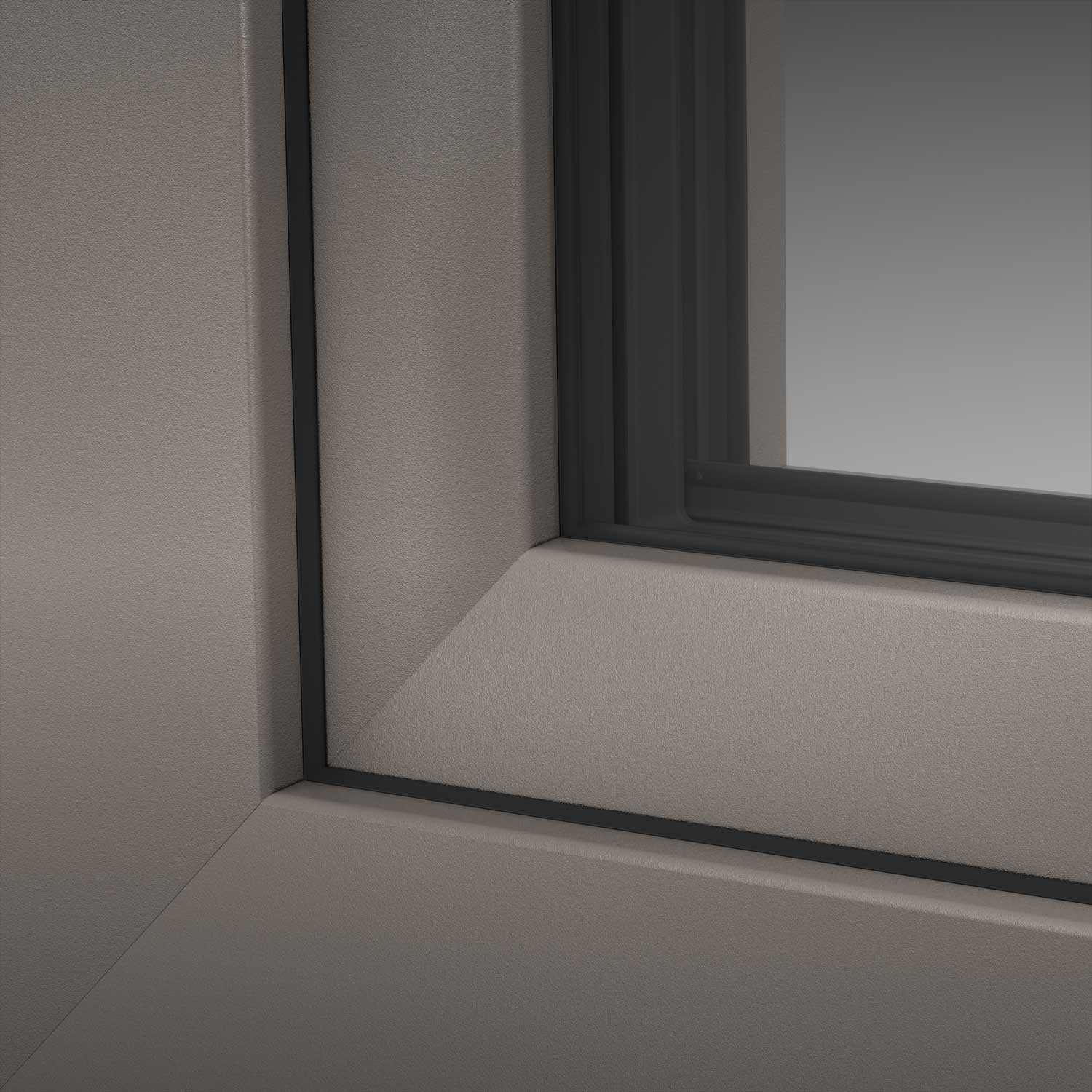

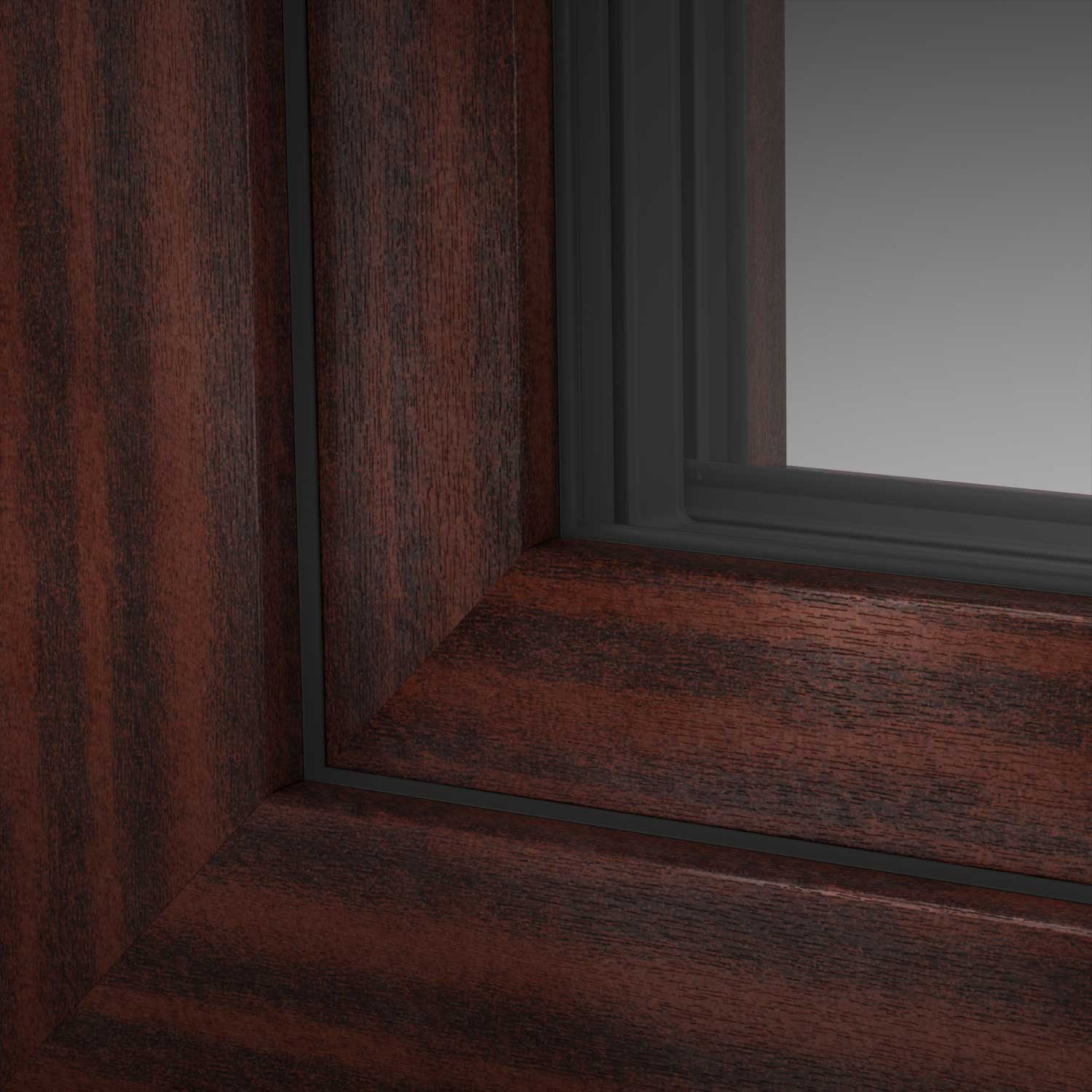

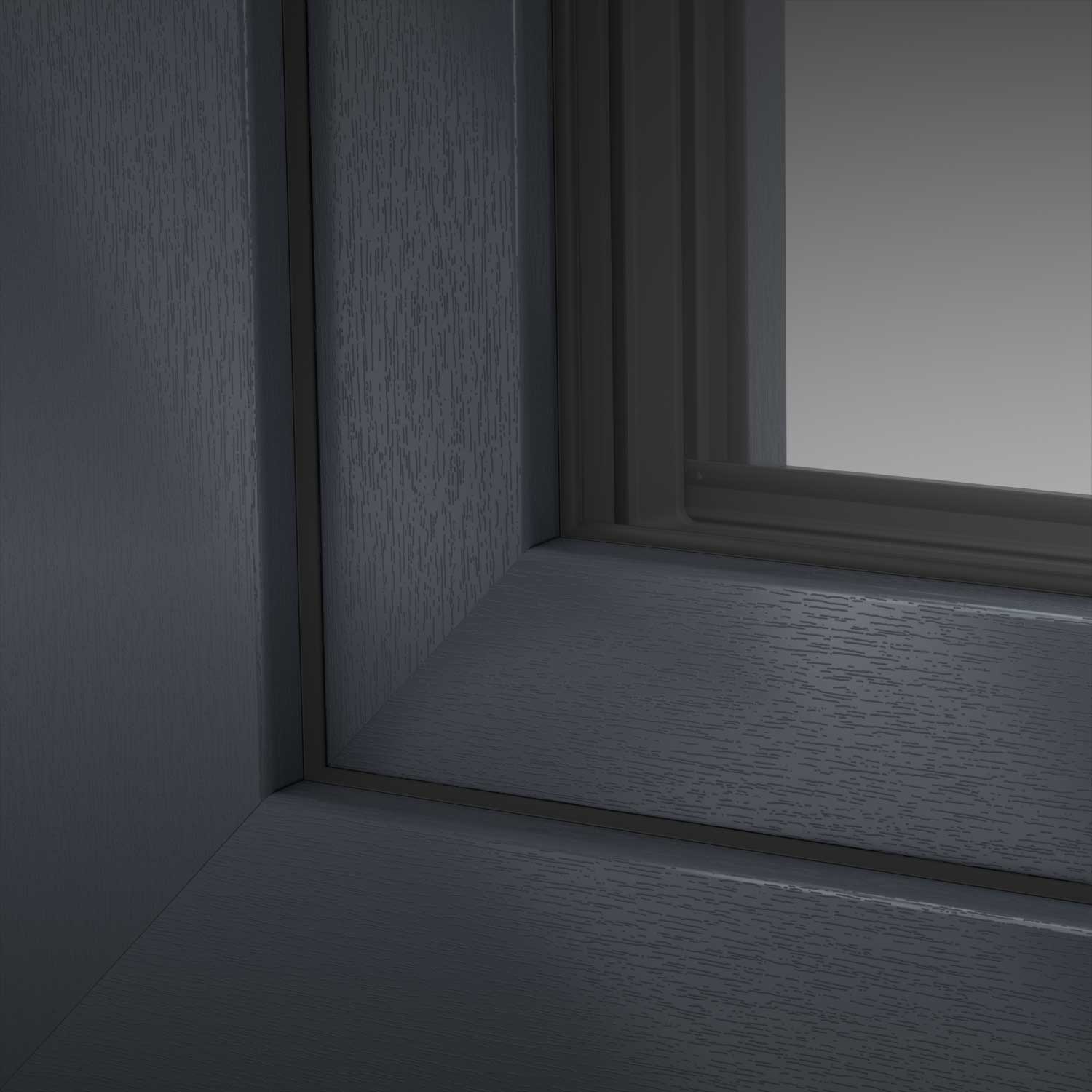

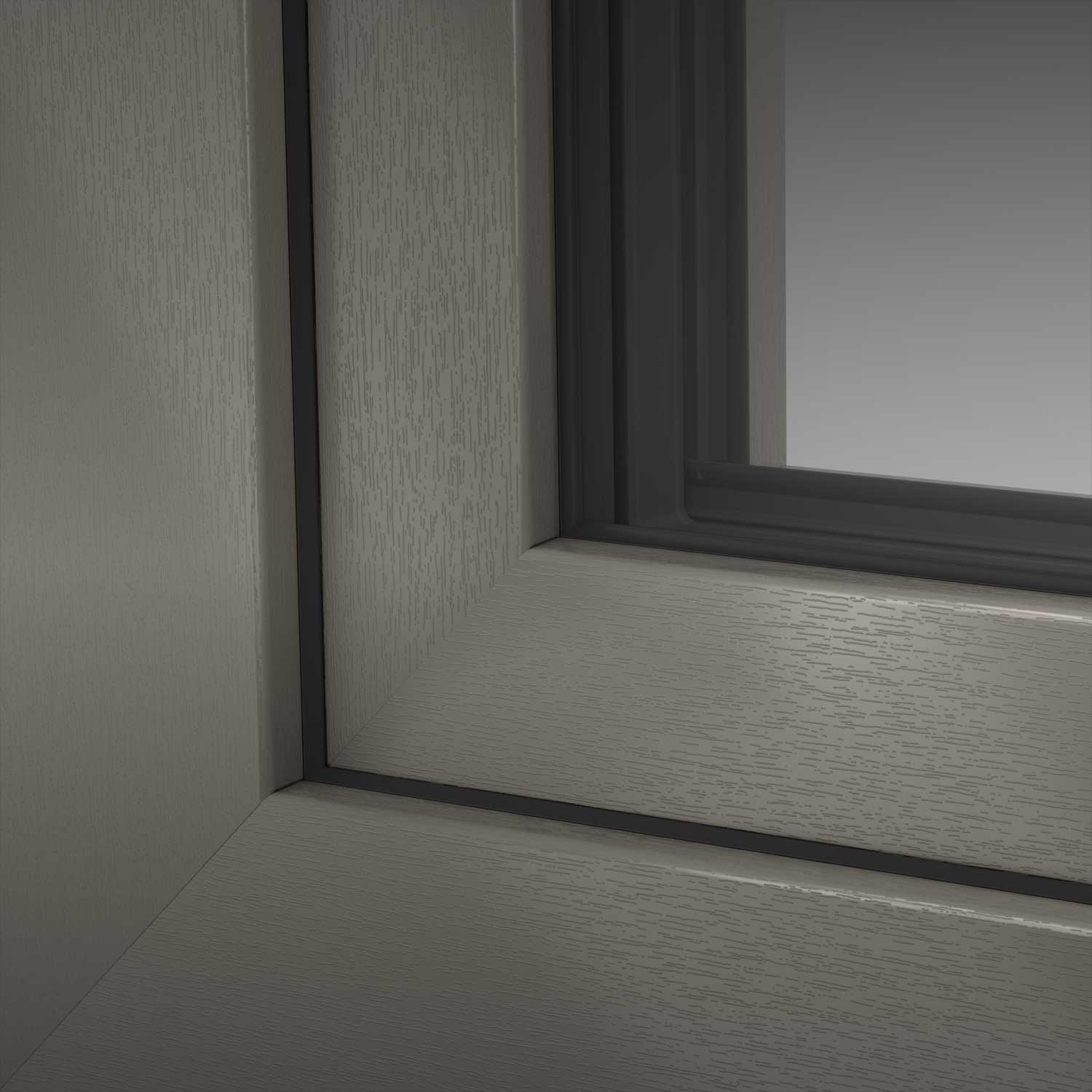

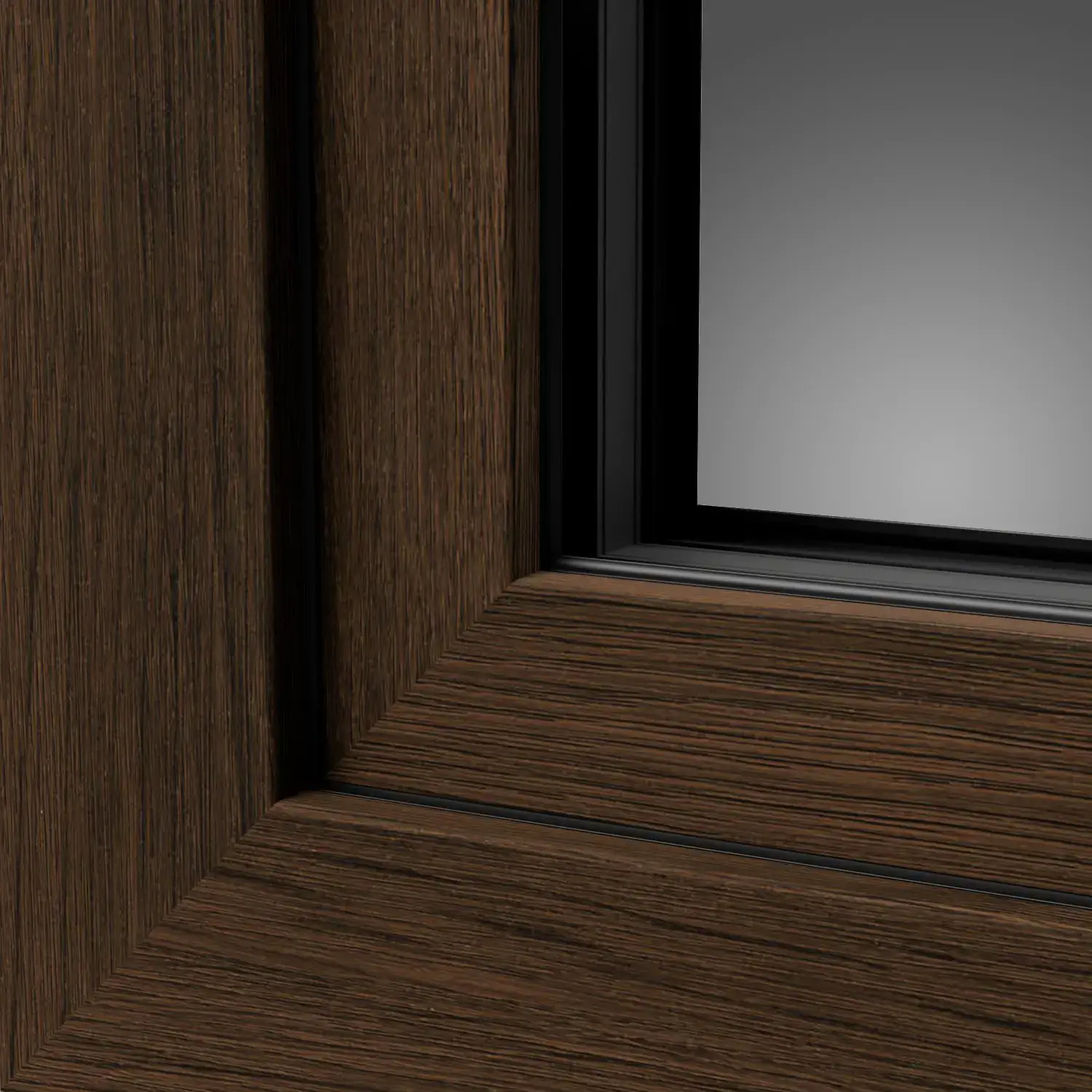

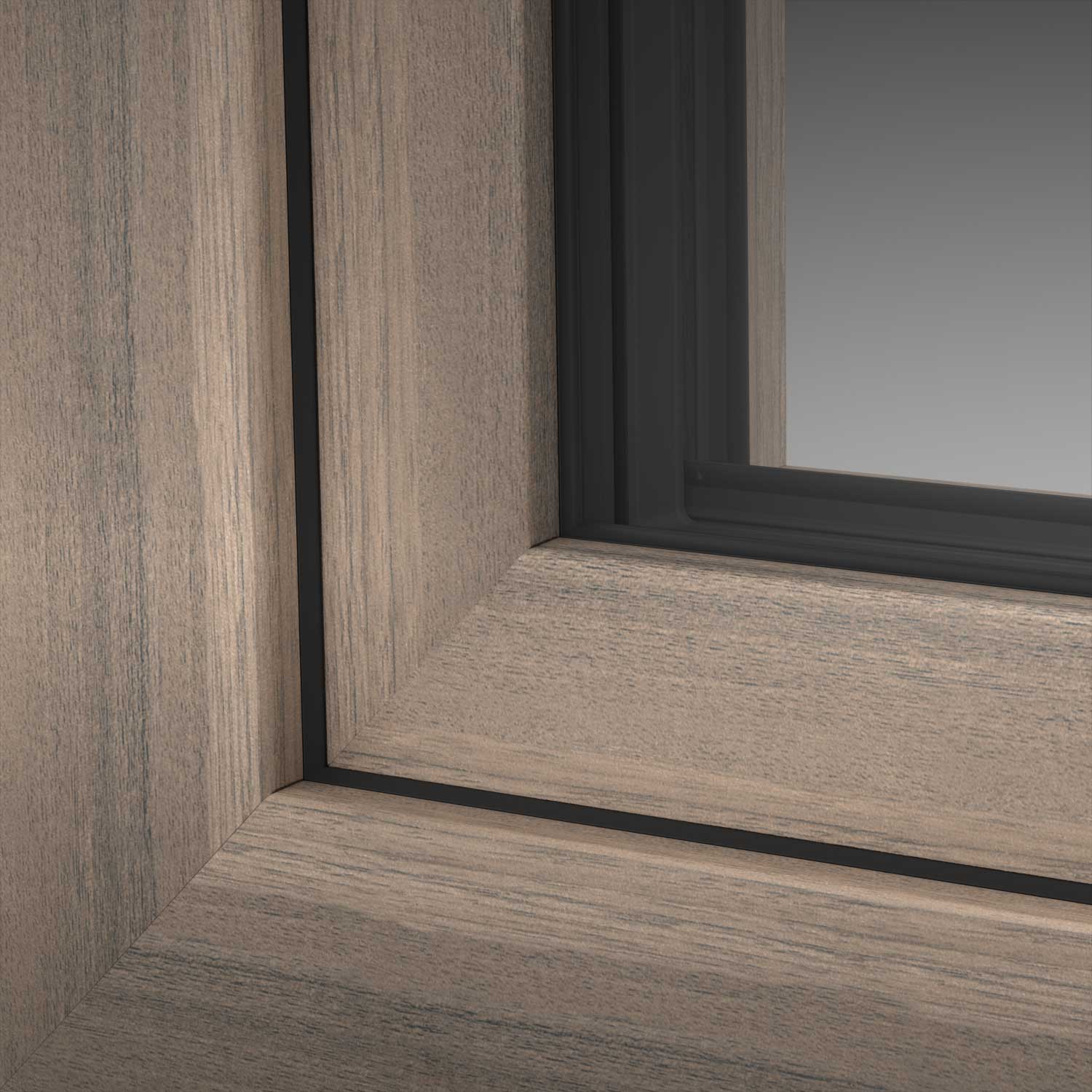

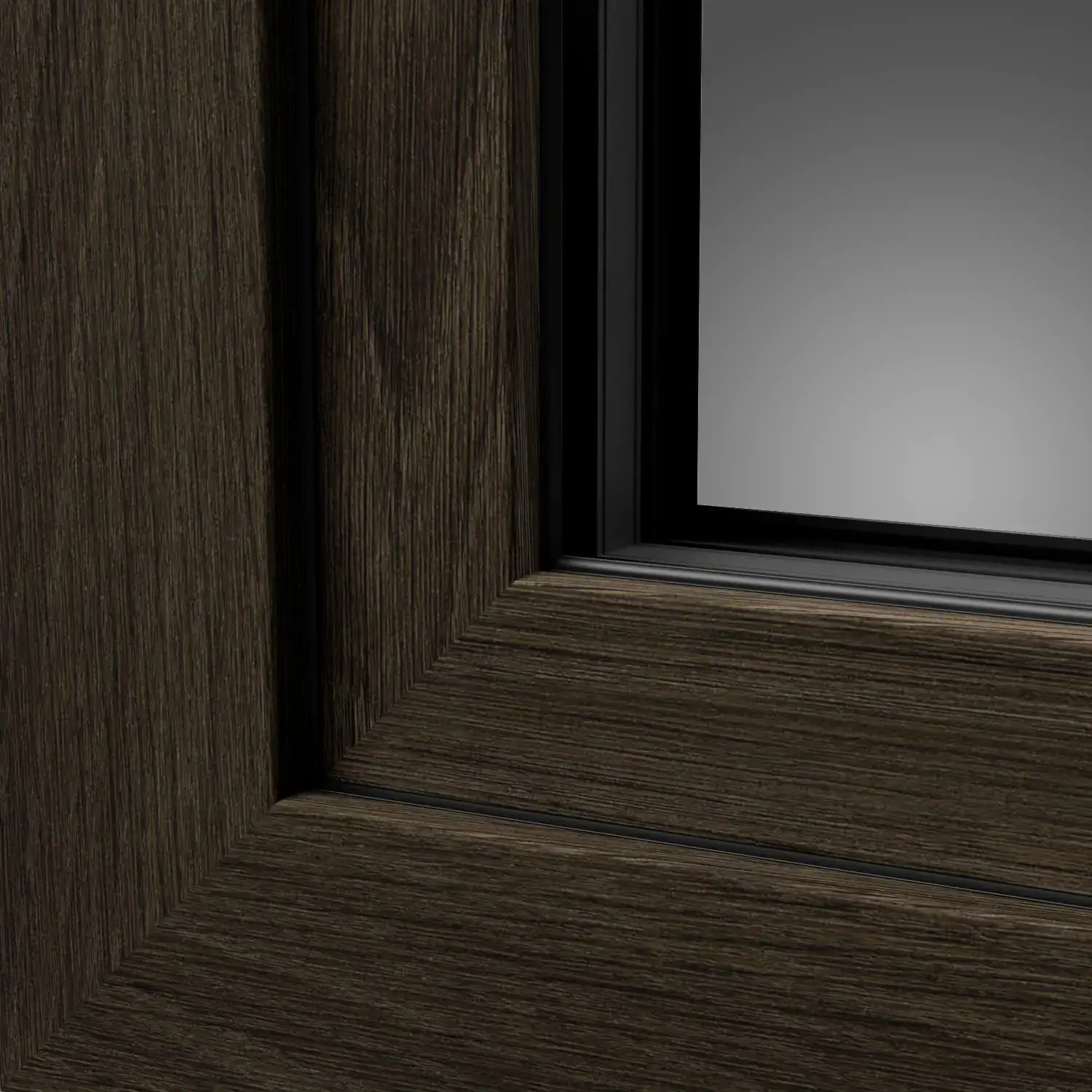

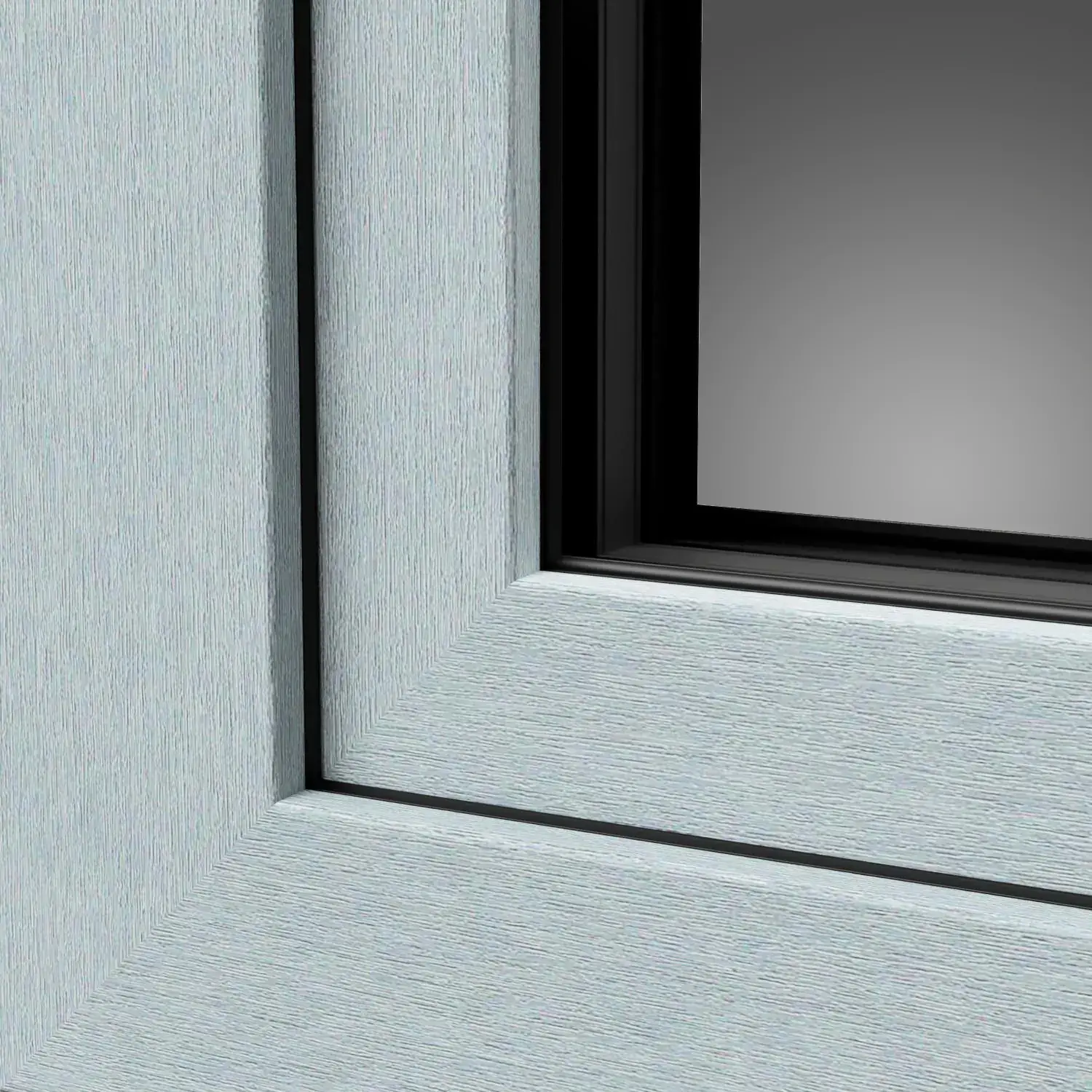

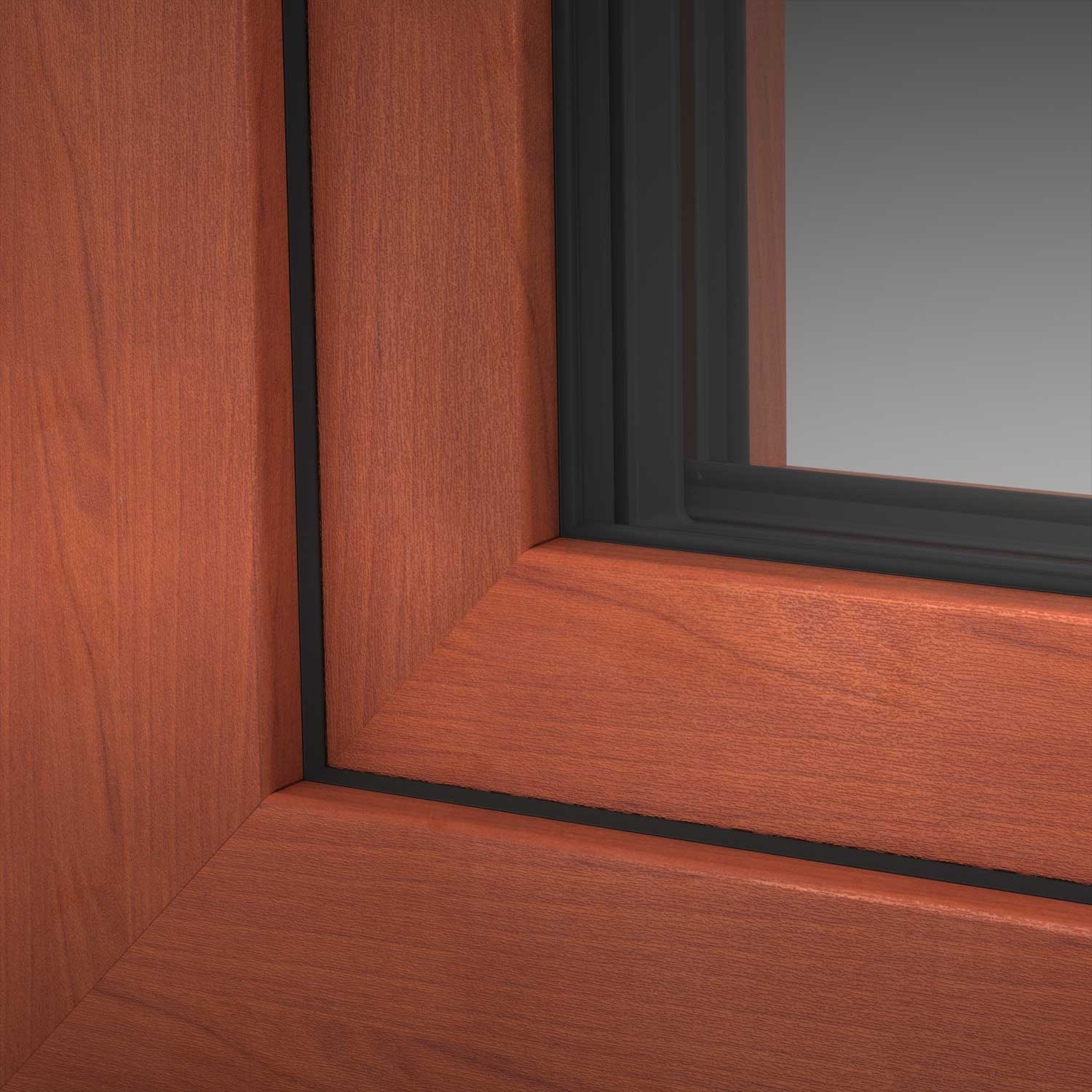

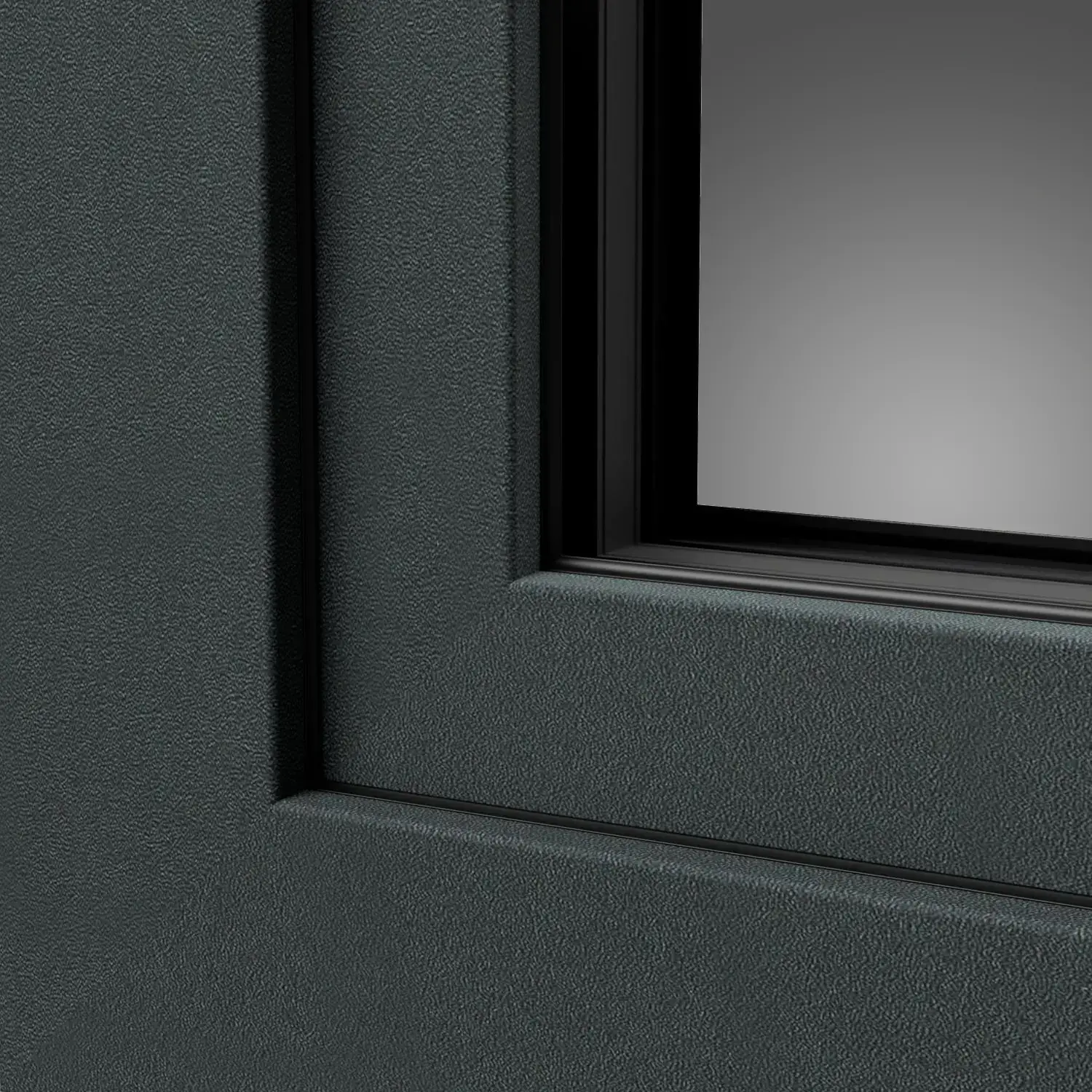

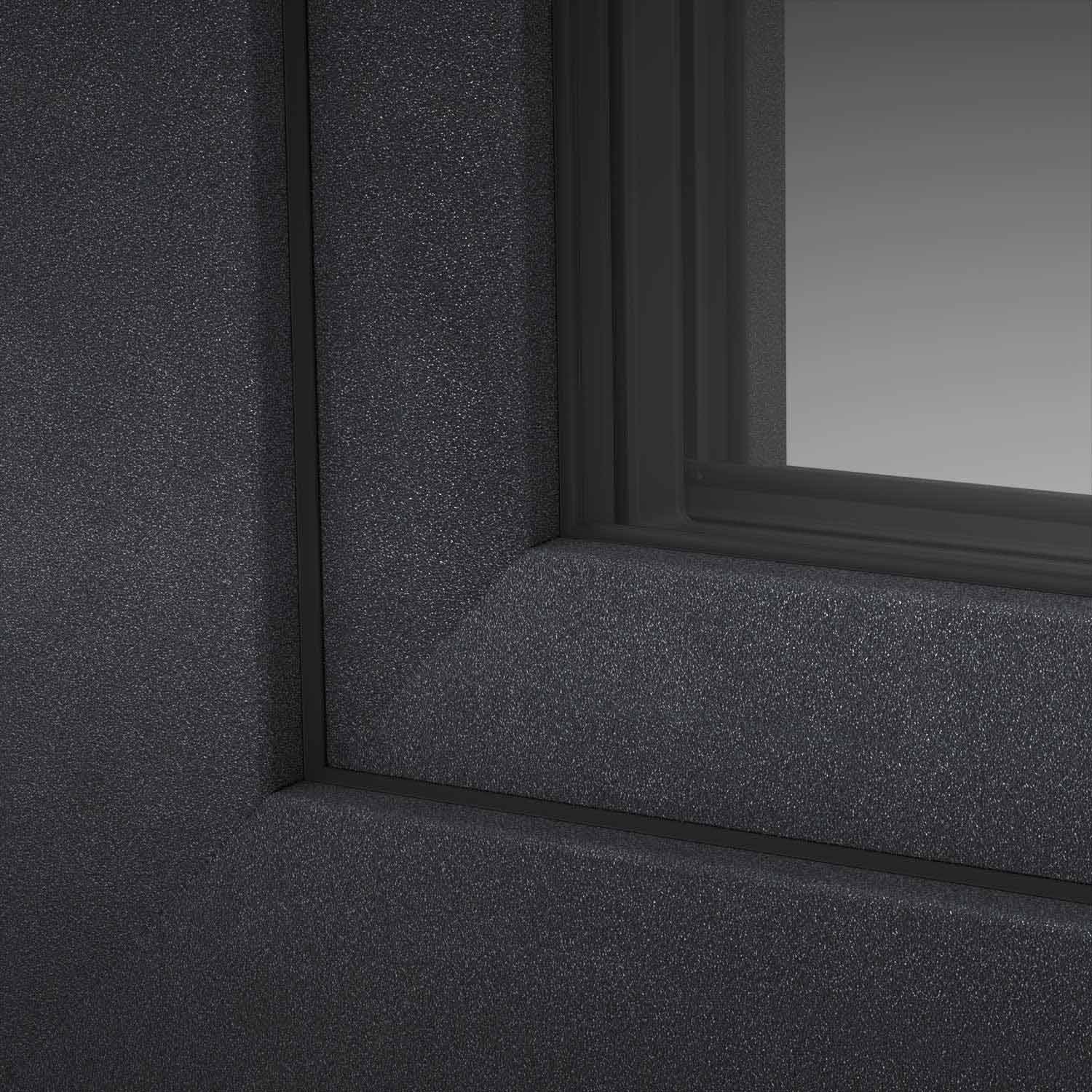

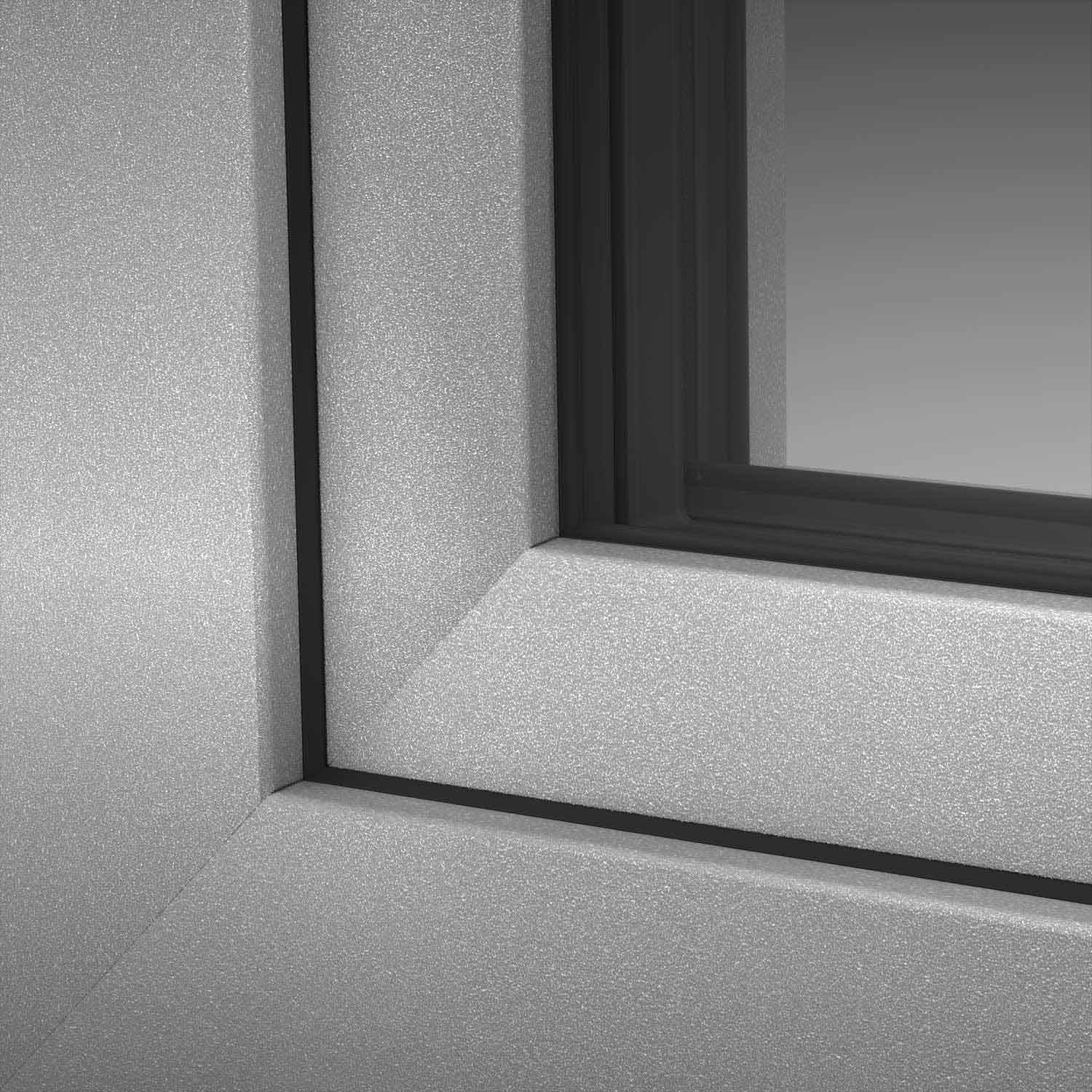

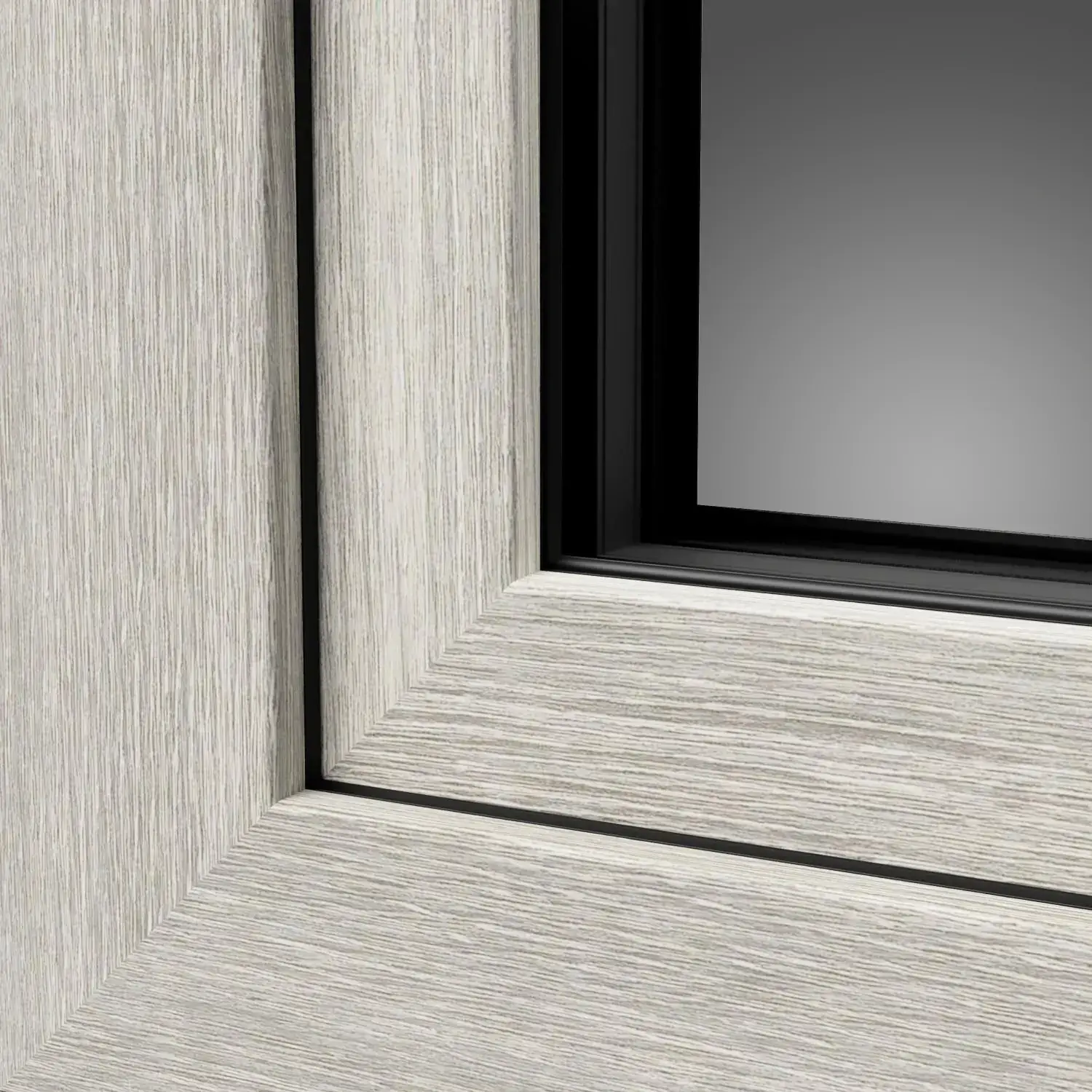

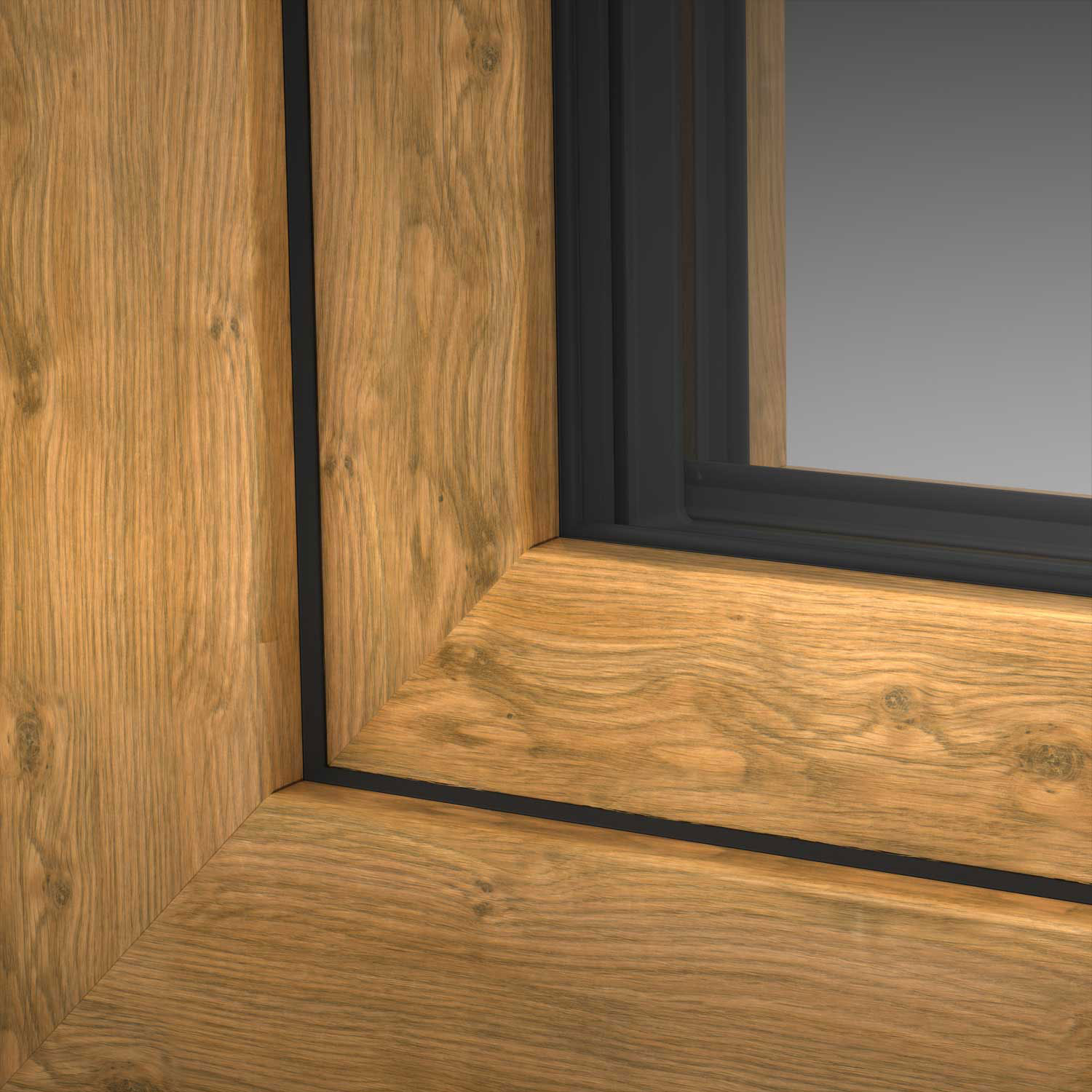

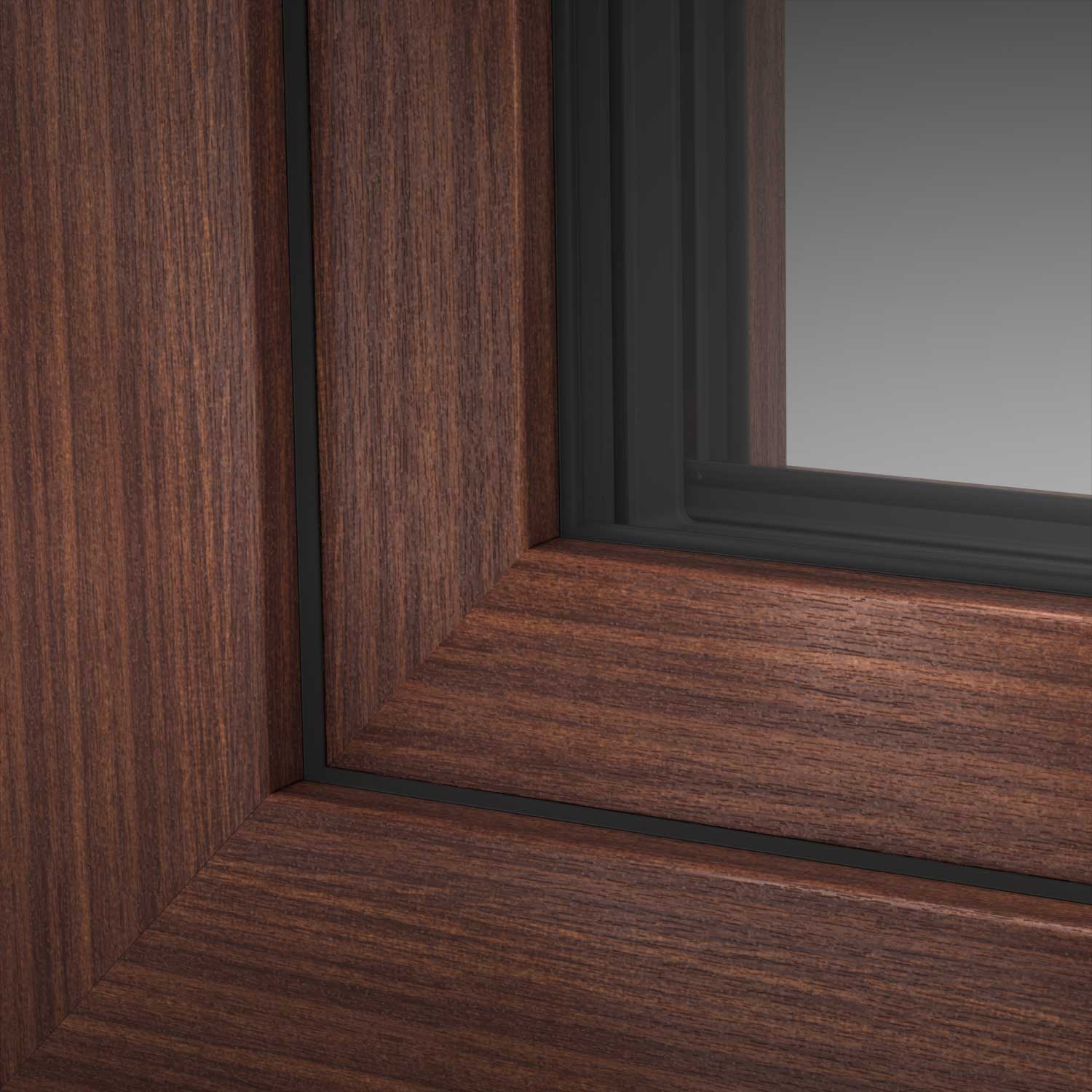

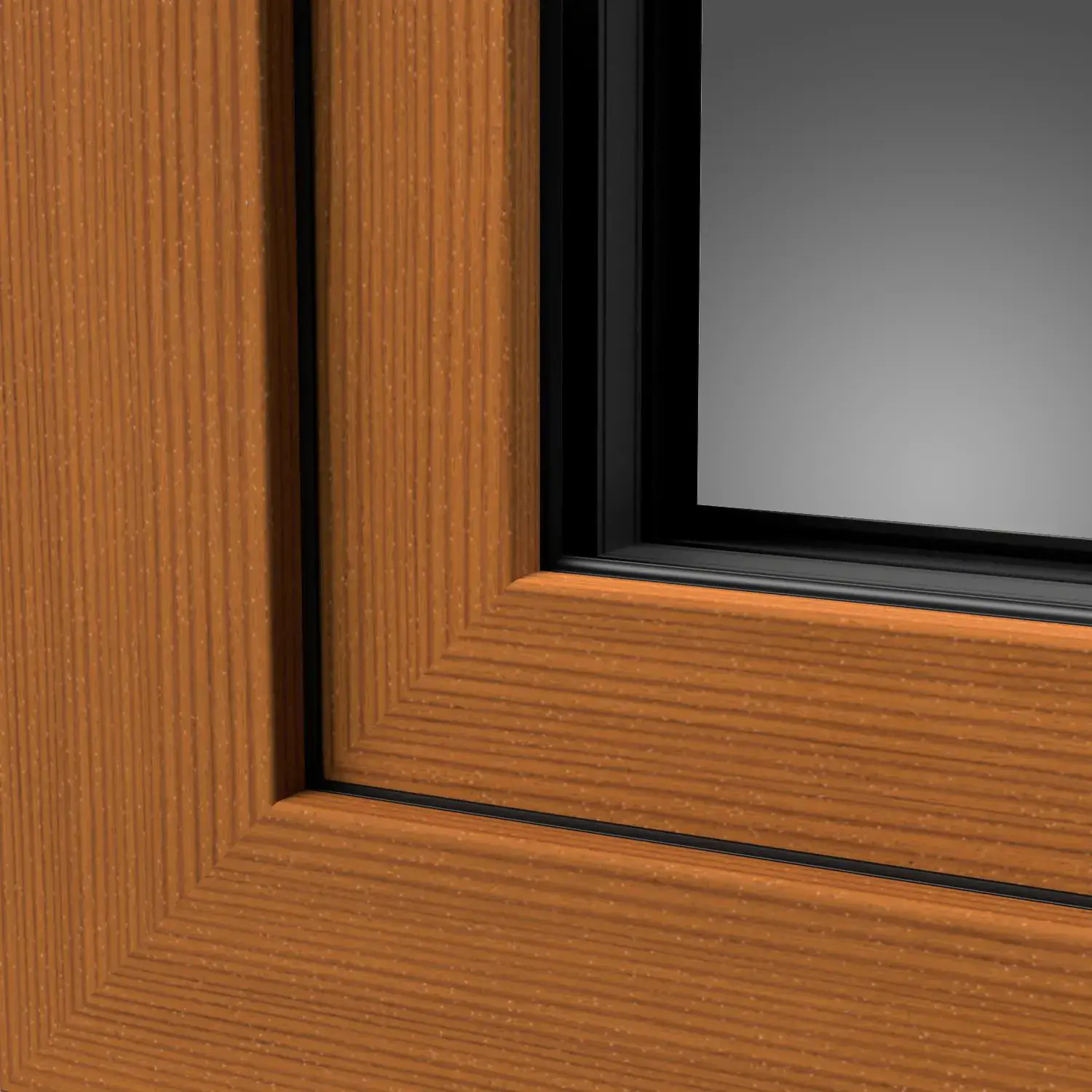

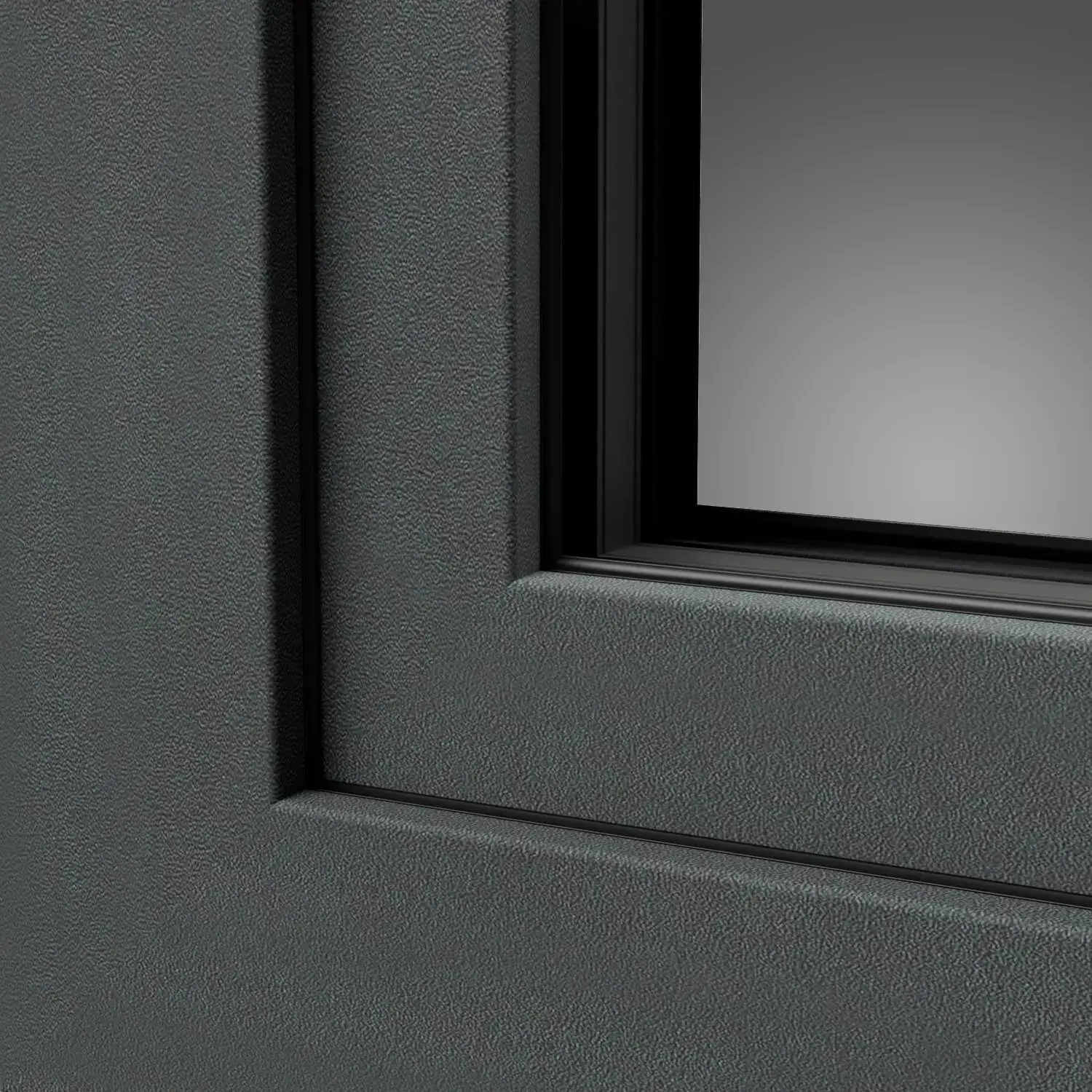

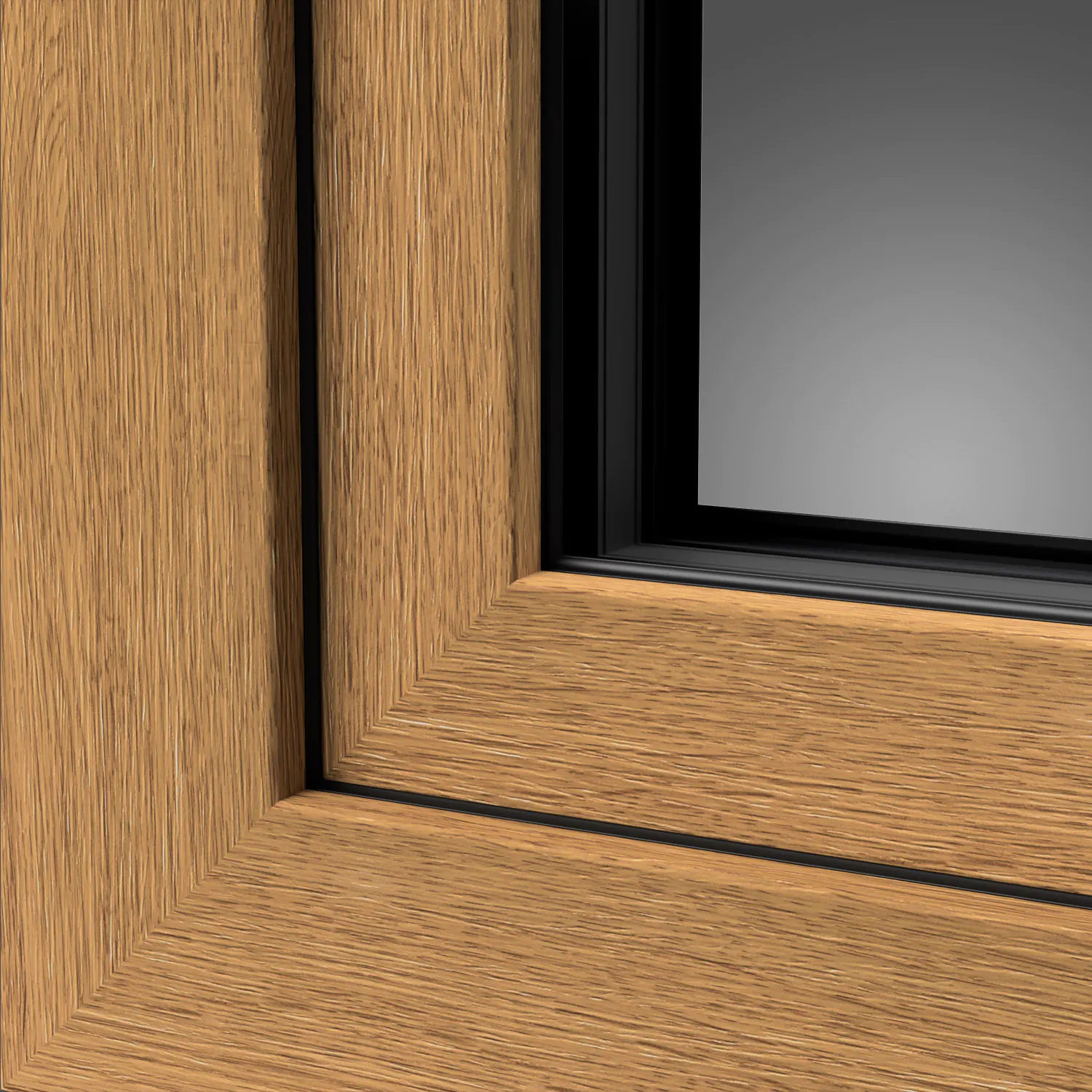

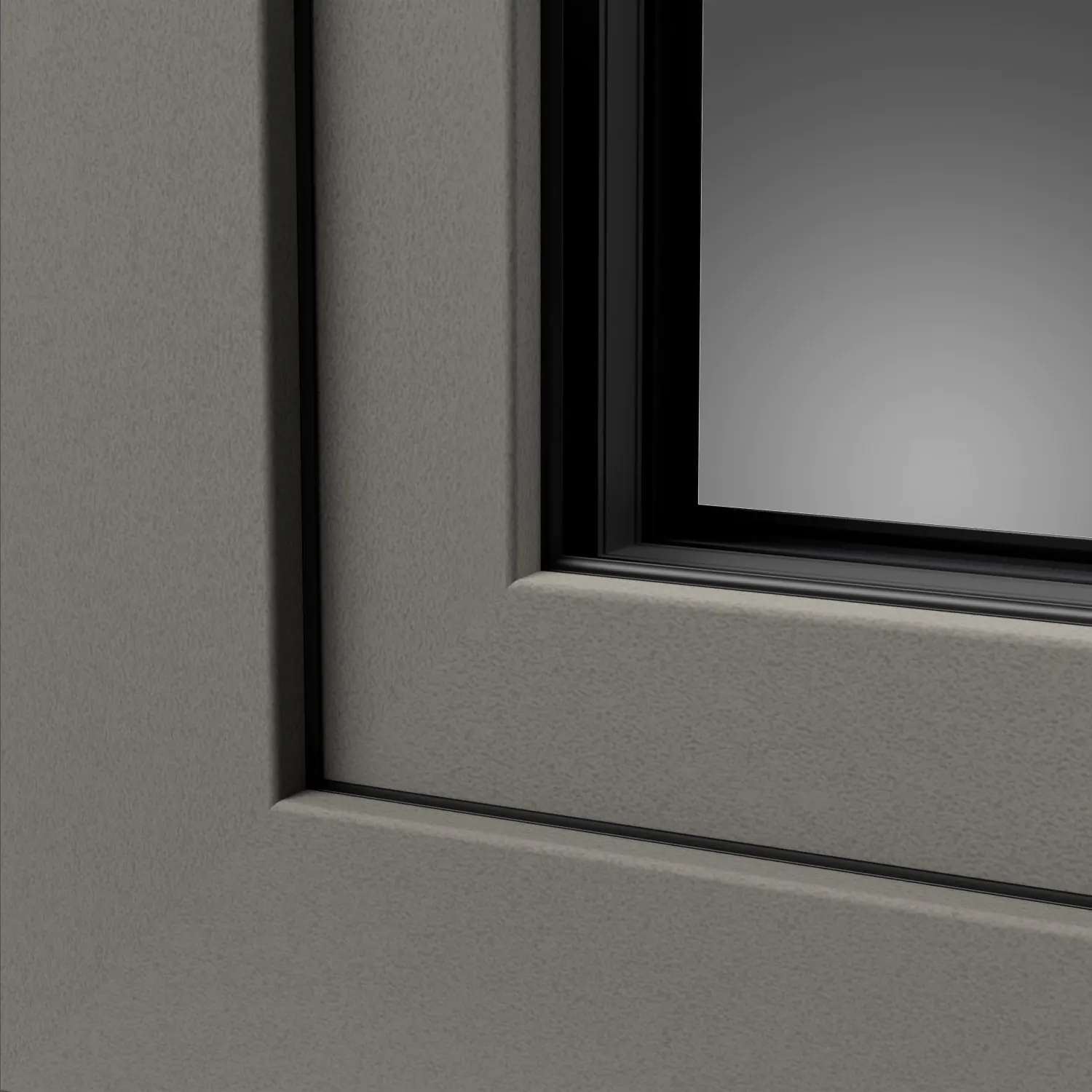

Modern minimalism is possible with metallic foils, e.g. White aluminum and Pyrite . The traditionality of the interior will be highlighted by veneers imitating natural wood with their structure, e.g. Grey cedar, Dark oak and Rustic cherry. The subdued character of the room can be obtained thanks to satin foils, e.g. Moondance smooth or Umbra gray matt .

PARAMETERS

for the reference window
Uw = 0.80 W/m²K with warm MS spacer bar
Uw = 0.75 W/m²K with CHROMATECH spacer bar
Uw = 0.73 W/m²K with Thermobar spacer bar

Lt = 74 %

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

G = 53%

for SUPERtermo 0.5 glass
with a new, brighter thermal coating

It withstands a pressure of 1200 Pa caused by a wind speed of 158 km/h .

It does not pass water in heavy rain with a wind speed of 111 km/h.

Rw = 35 dB to 46 dB
depending on the acoustic glass
